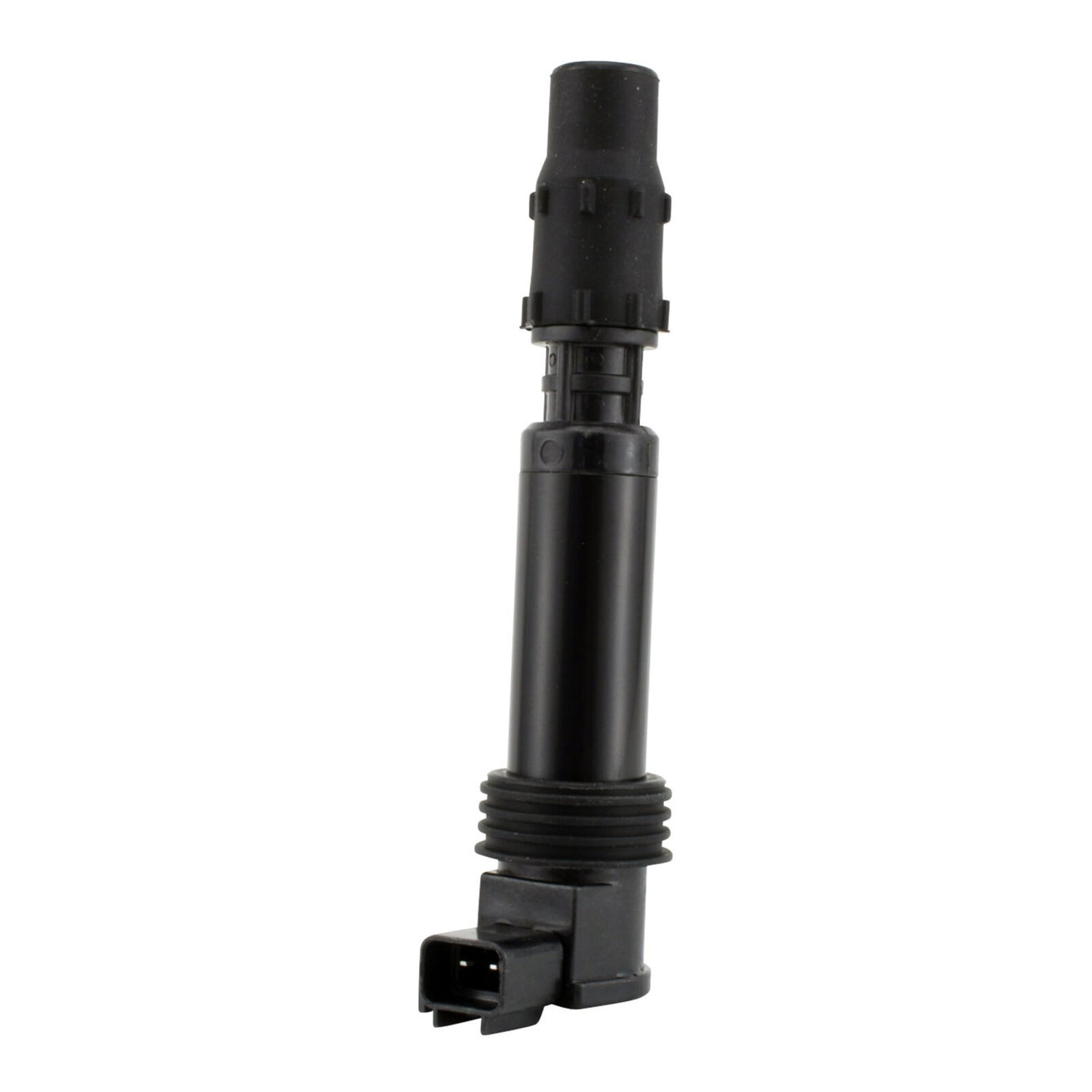

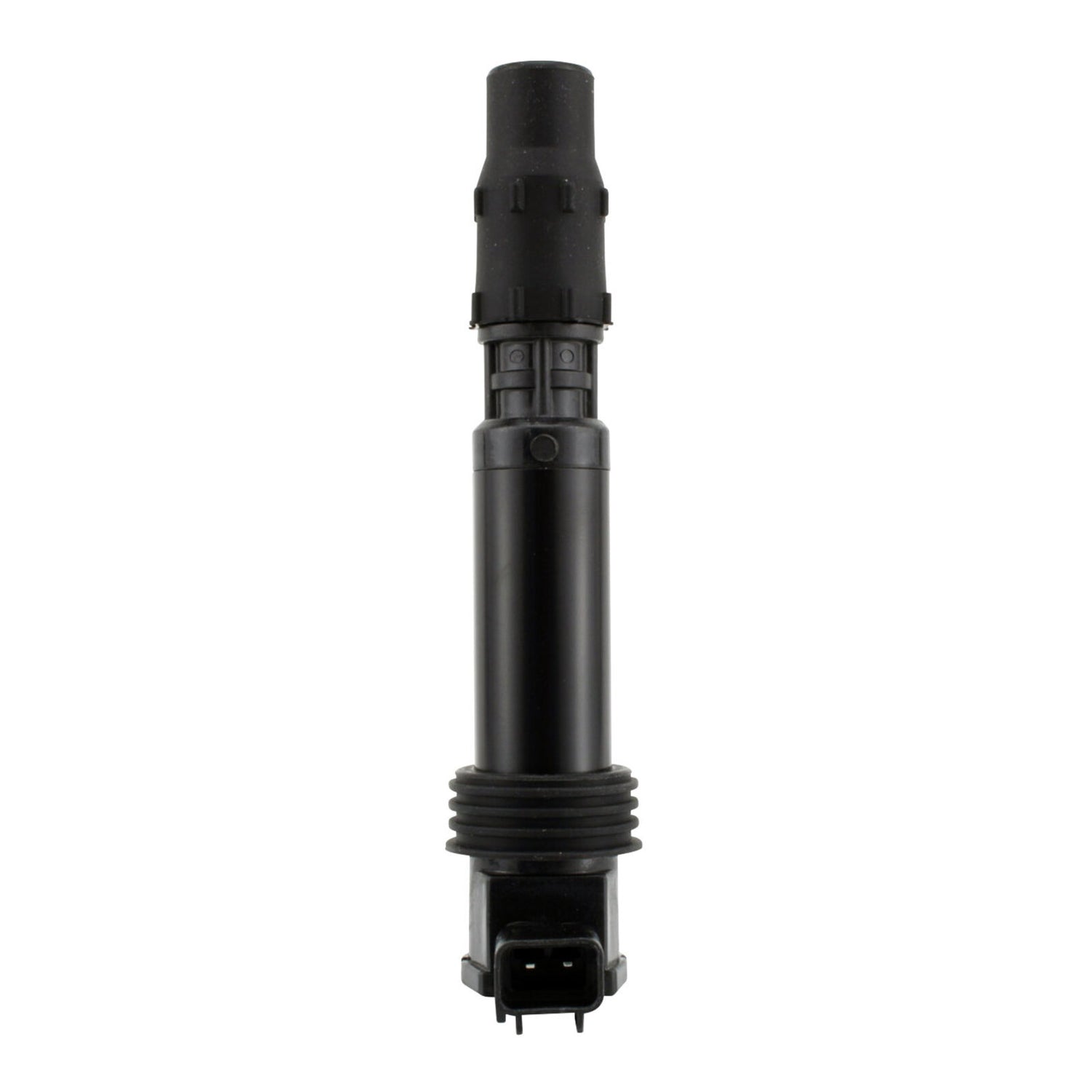

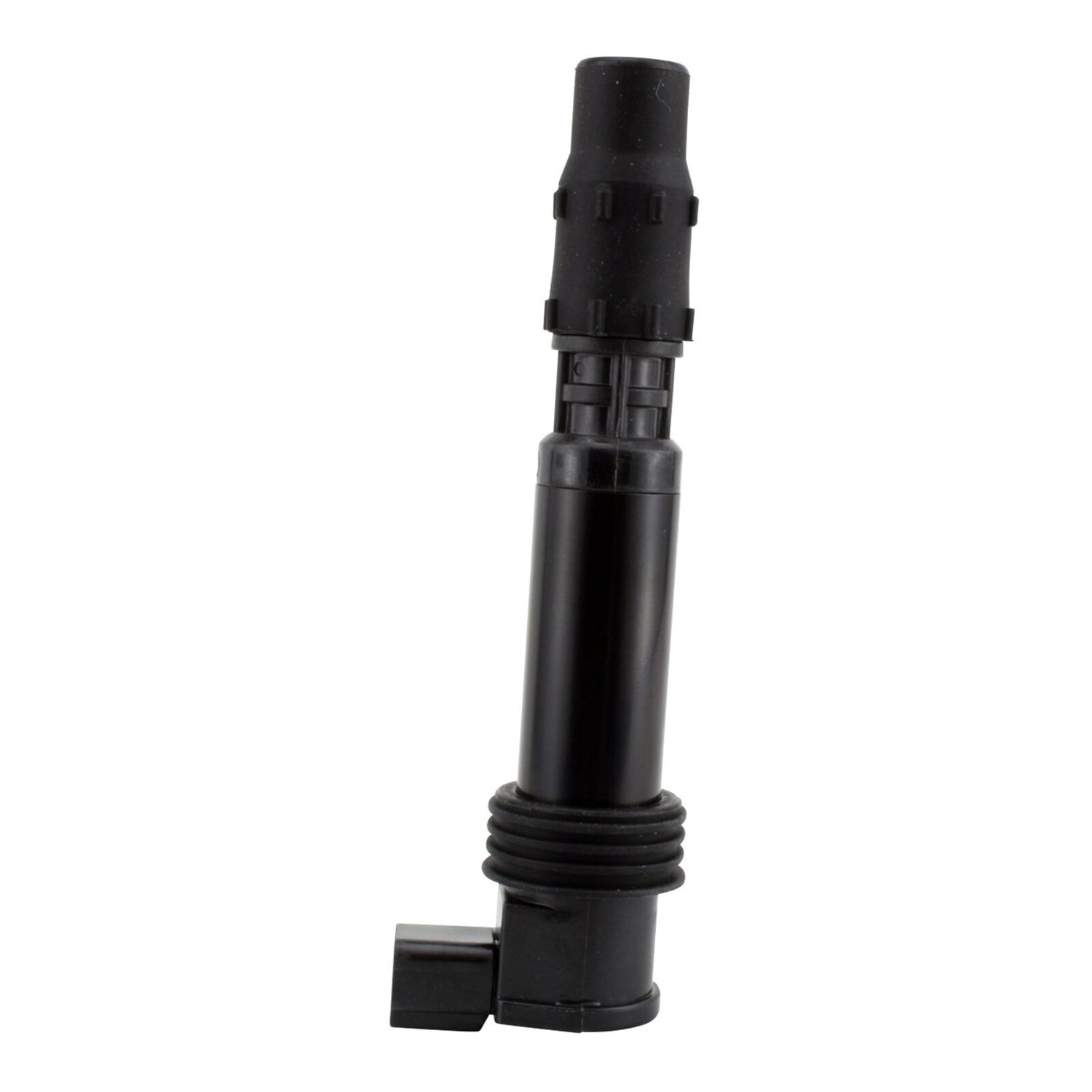

Coil Cap – Assorted Triumph Models (Refer to Fitments) (RMS260-105958)

Brand new Ignition Stick Coil.

• Direct replacement to the original unit.
• The quality exceeds the OEM equipment.
• 1 cap coil included.
• All products shipped are tested.

If the OEM part is defective, RMStator offers good quality replacement parts at a fraction of its original price.

All item pictures are accurate; if in doubt, do not hesitate to compare the item to the original part.

With certain motorcycle models, the spark plug caps and coils are combined to reduce the number of parts used in order to improve efficiency. However, when the spark plug cap wears out, the cost of the replacement becomes more expensive. If you are experiencing ignition problems, this could mean the ignition cap coil needs to be replaced. Simple, easy to install, affordable, and improves engine performance.

Direct replacement to the original unit.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Dimensions:

• Internal tube diameter: 9 mm.
• Length: 142 mm.
• Middle diameter: 22.25 mm.
• Outside diameter: 16.65 mm.
• Inside depth: 45.6 mm.
• Seal: 29.85 mm.

Other specifications:

• Number of terminals: 2.
