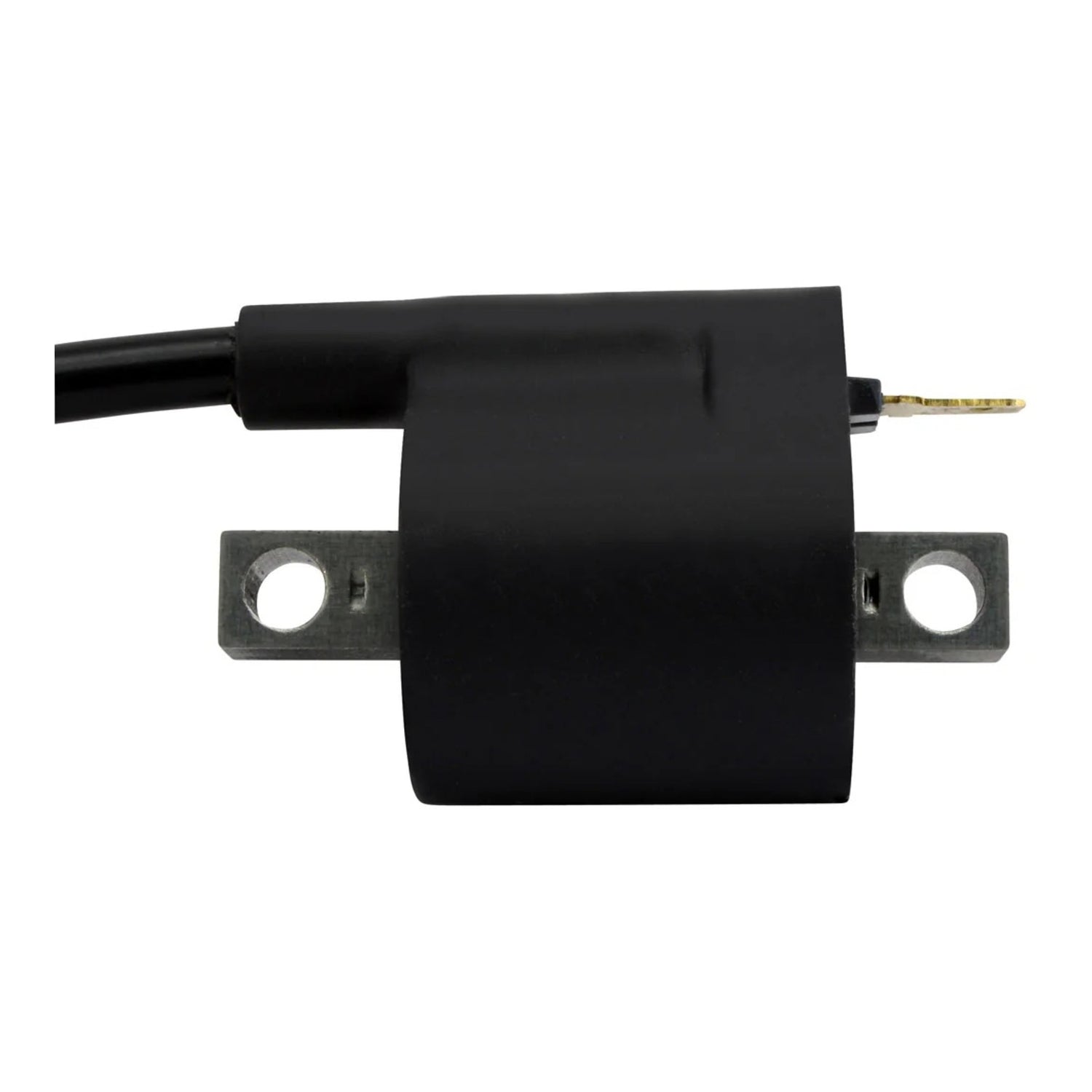

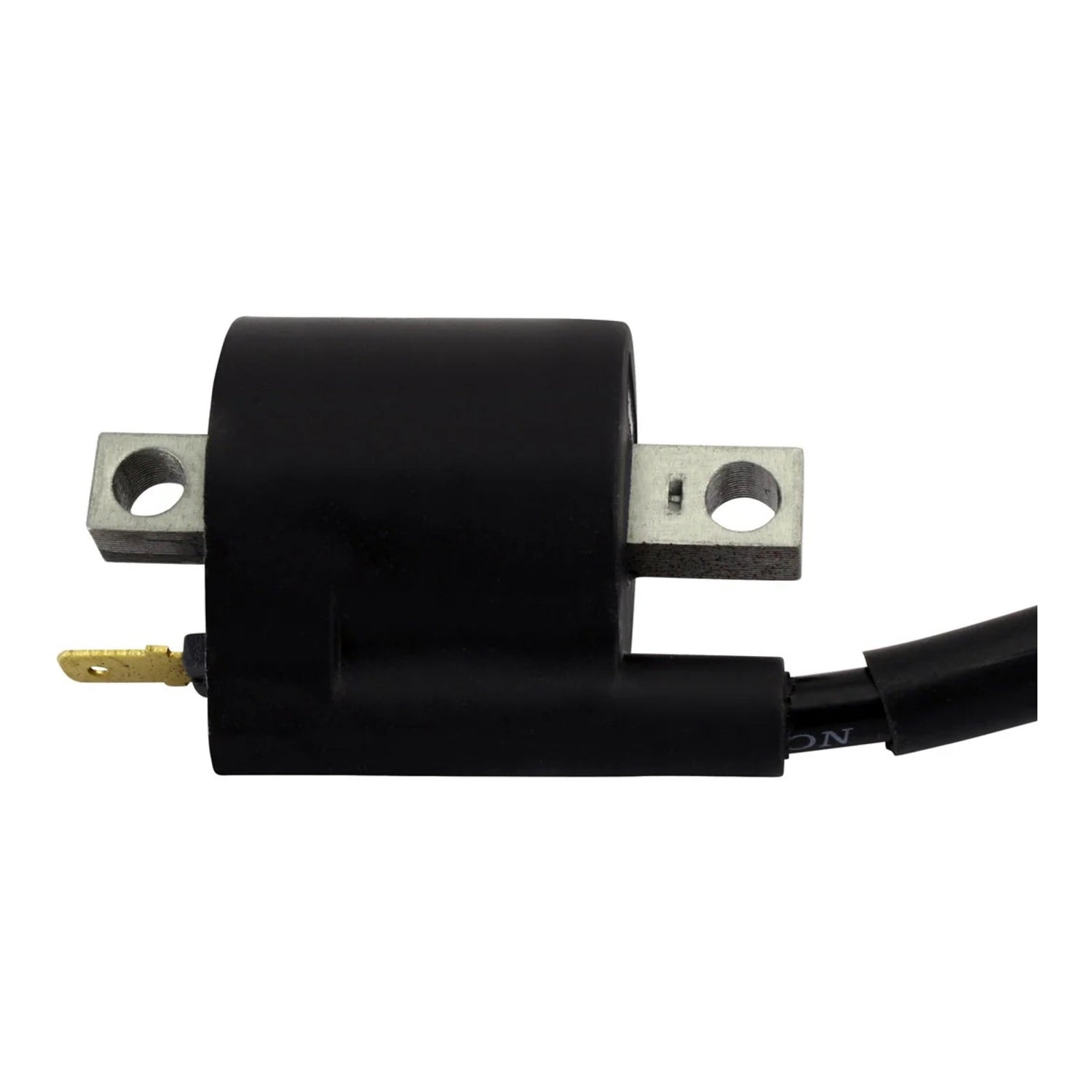

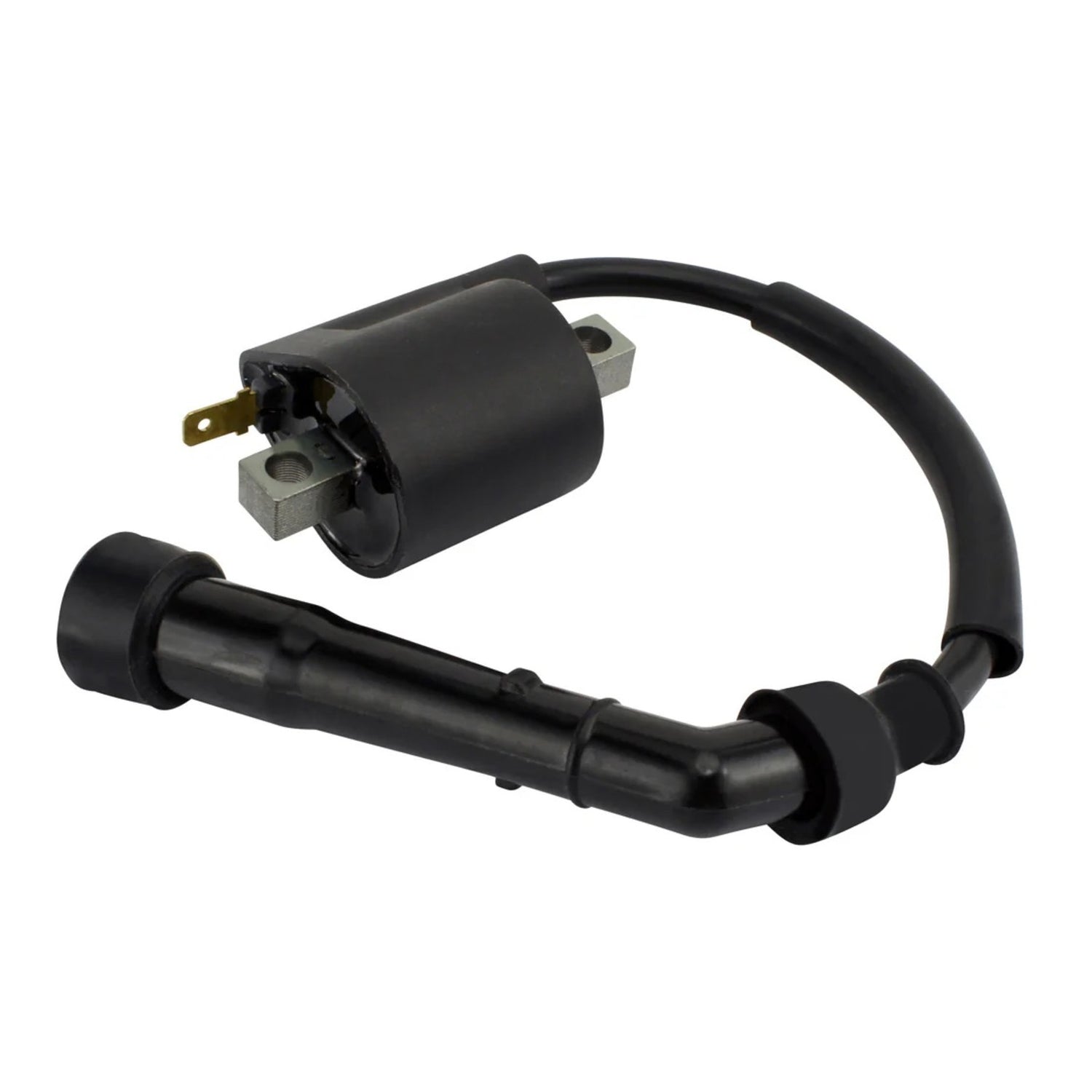

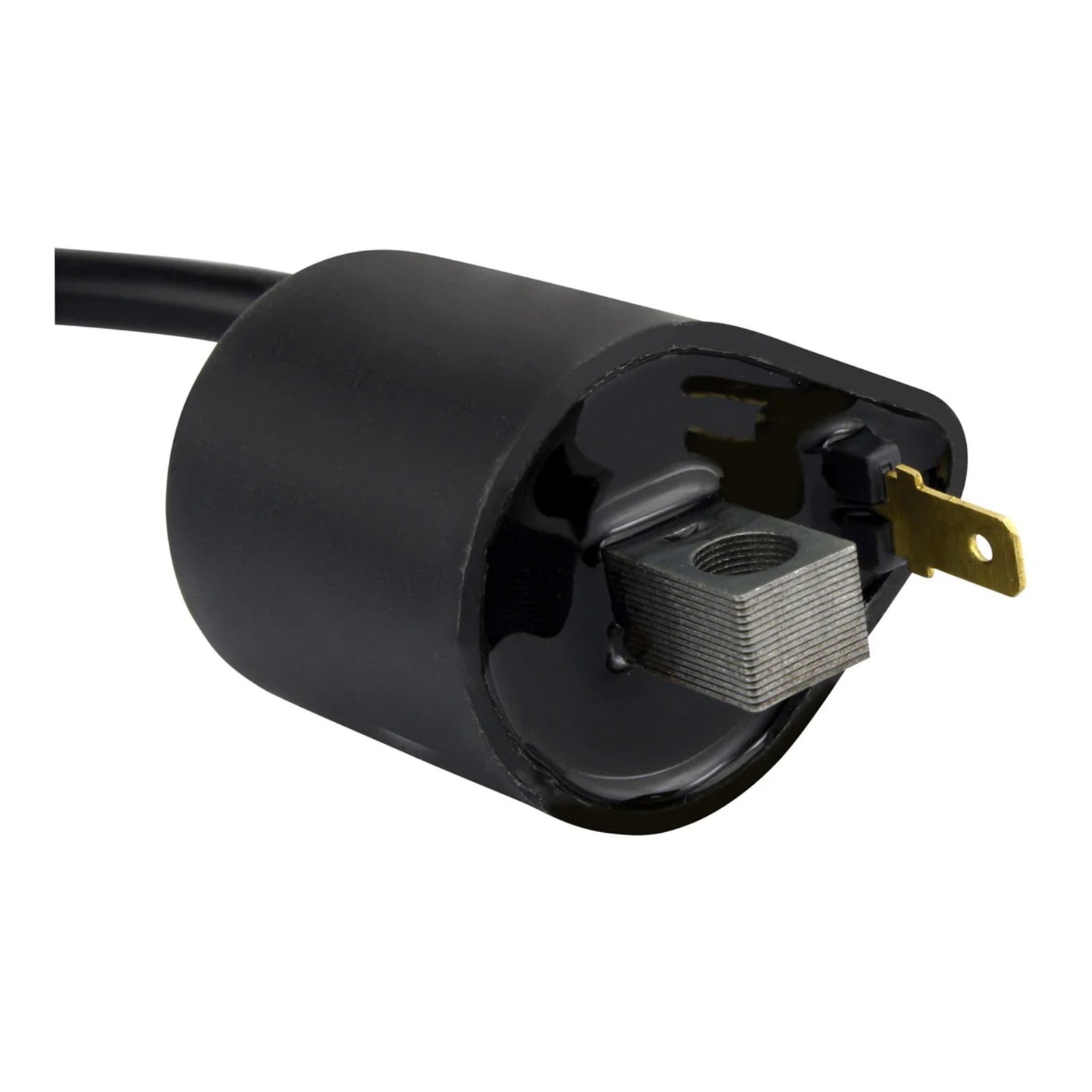

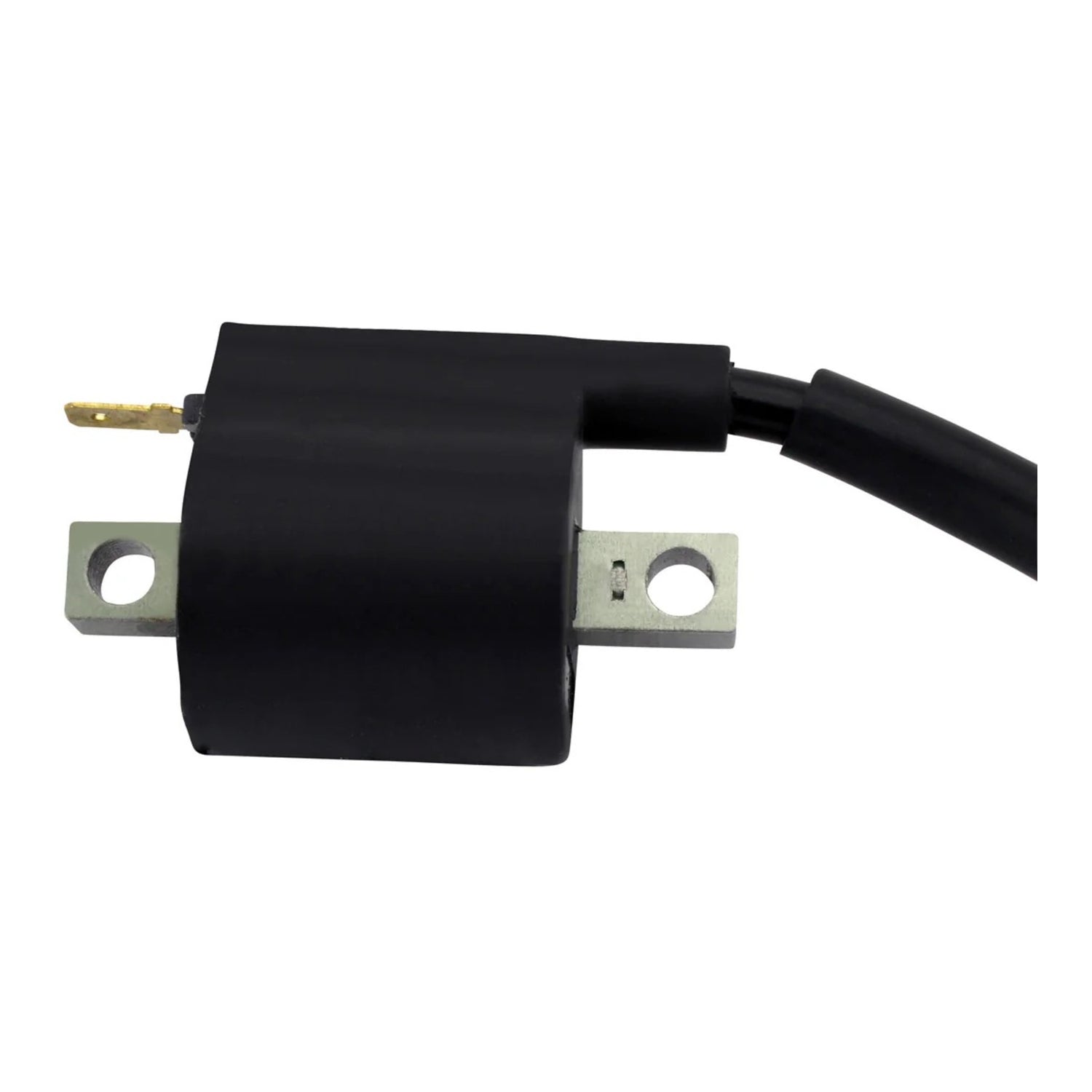

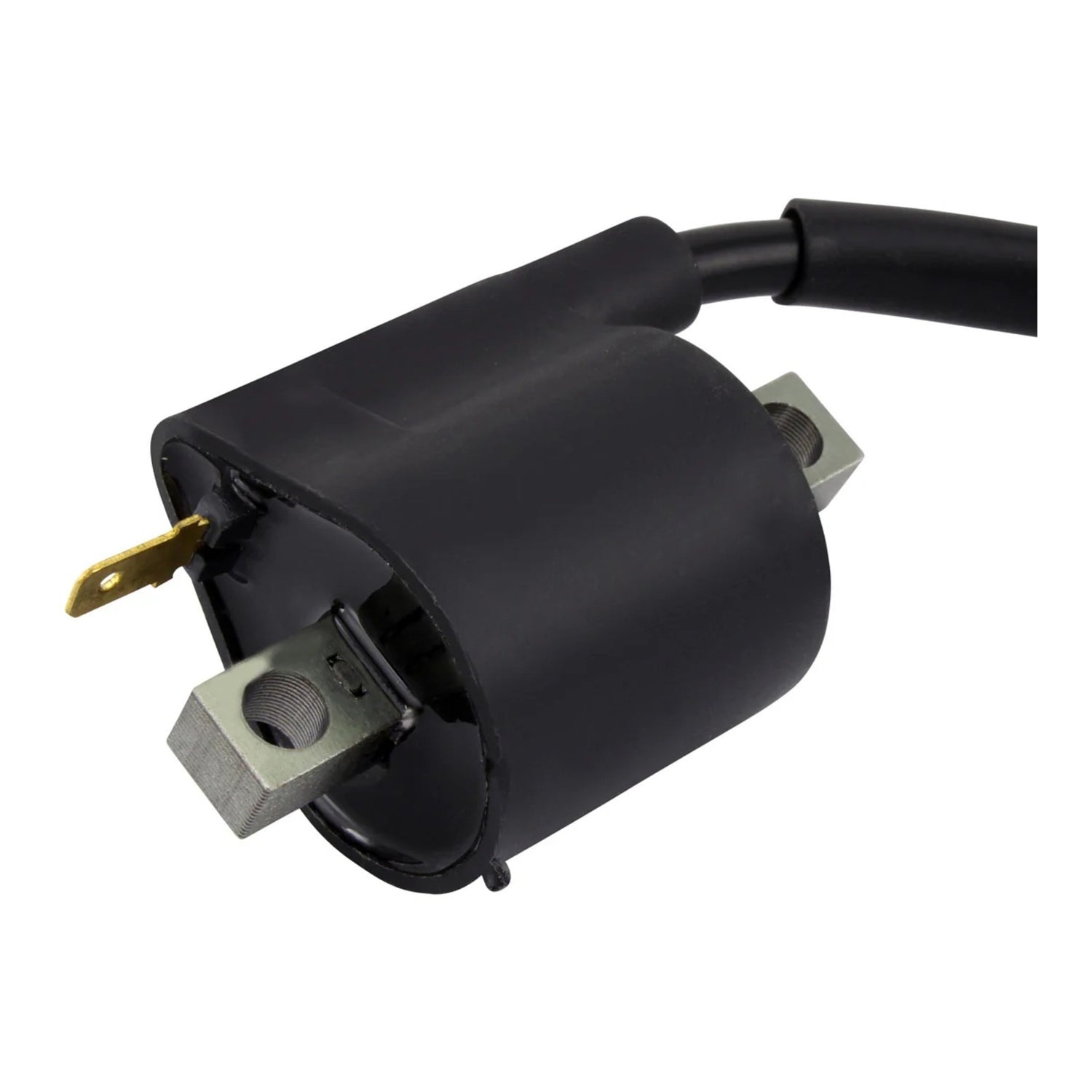

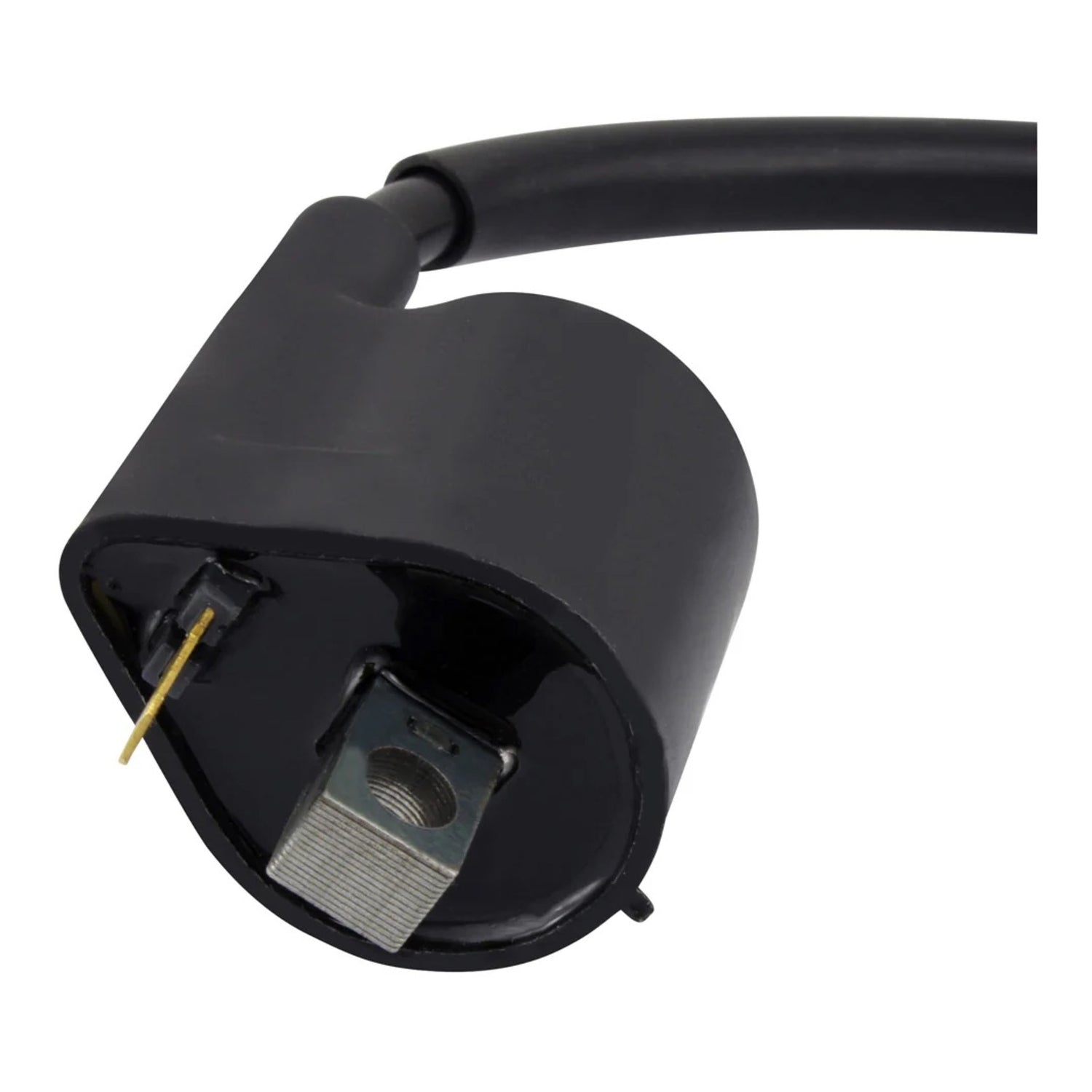

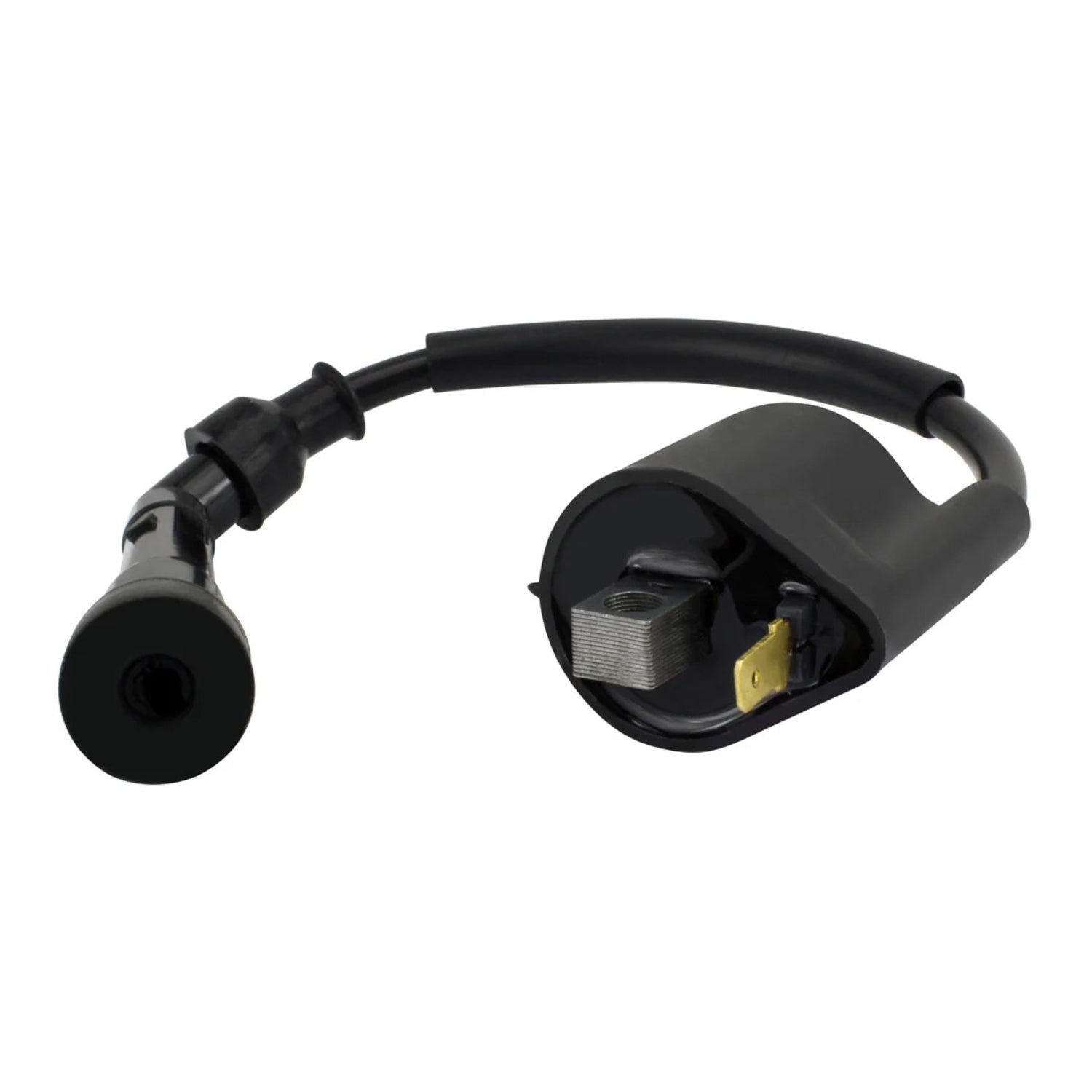

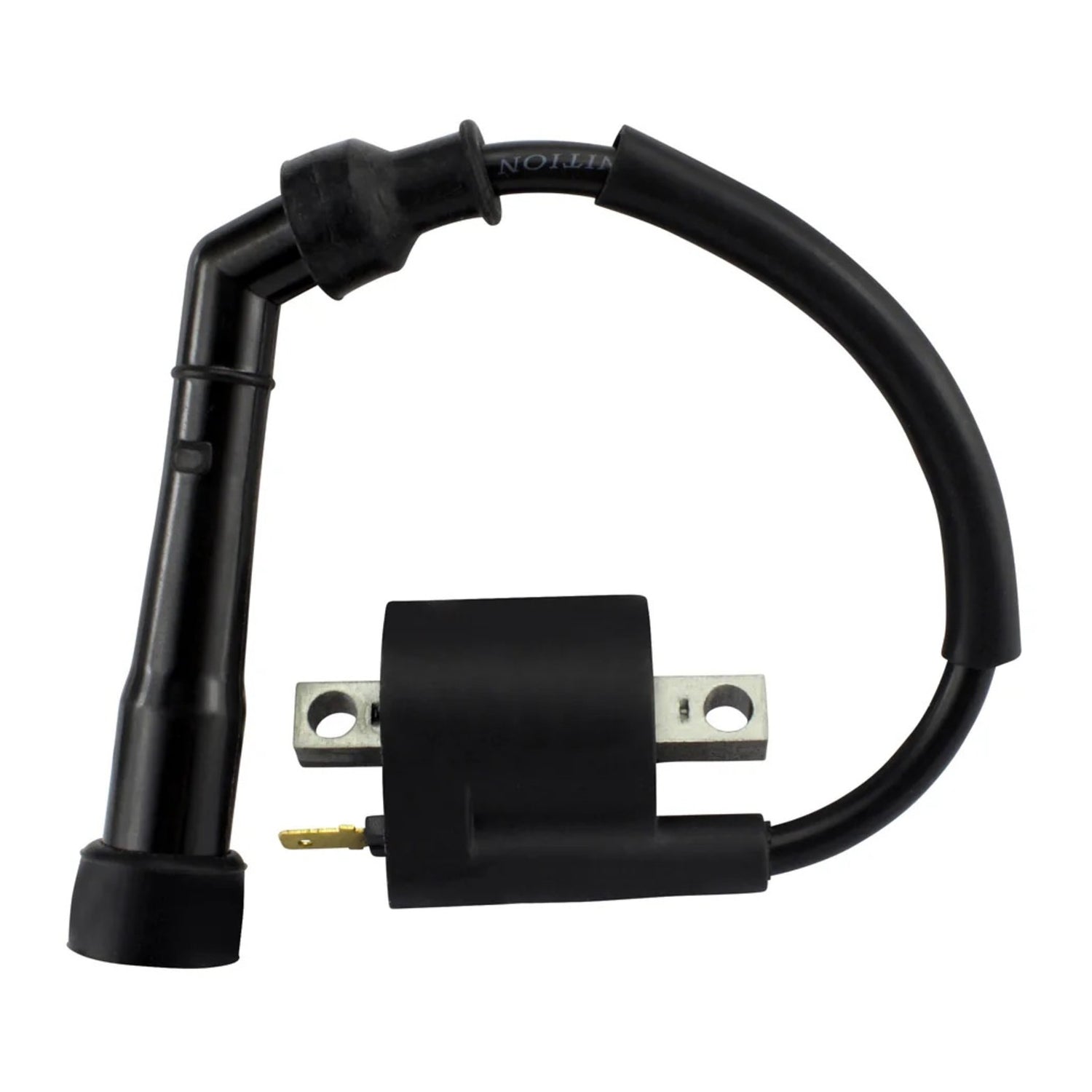

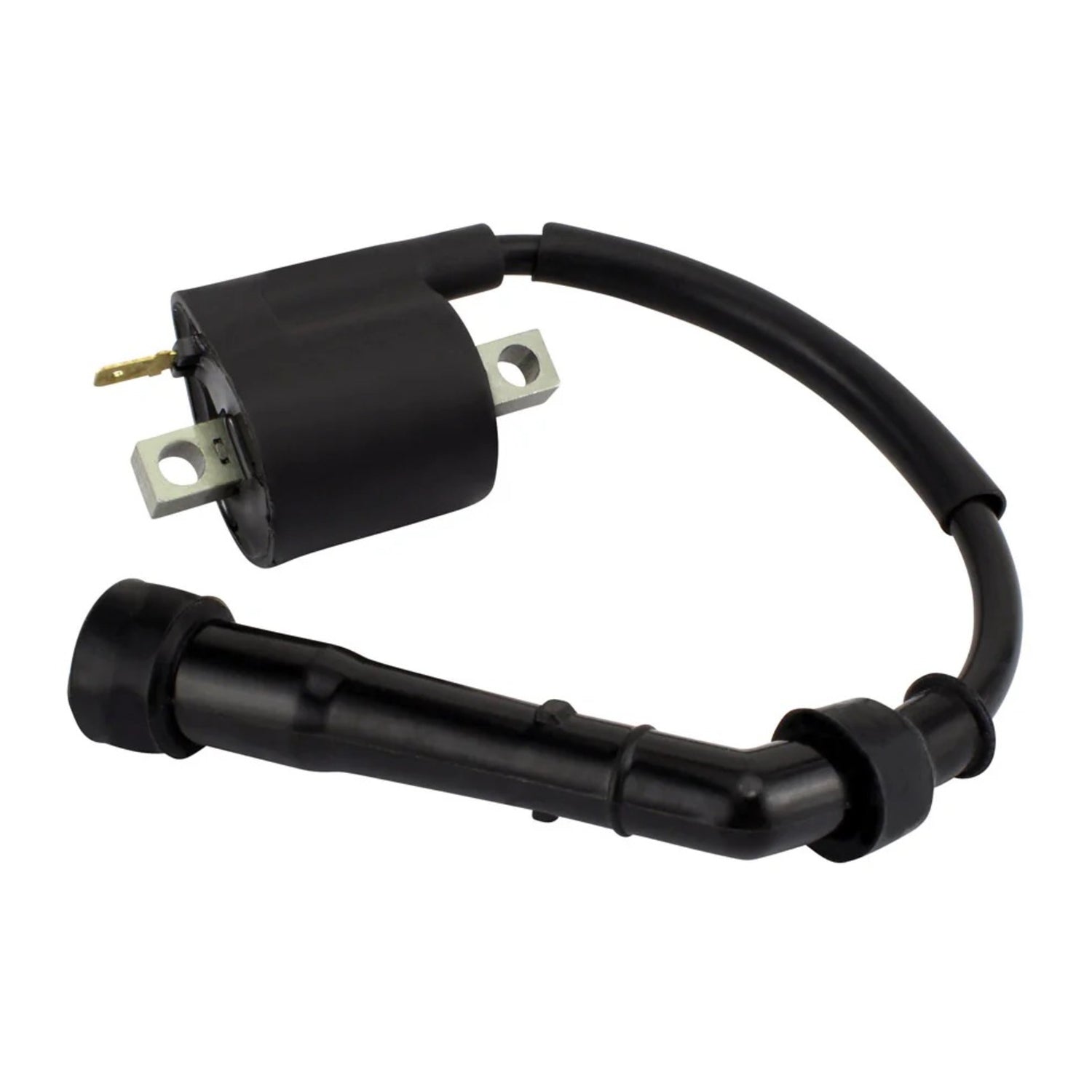

External Ignition Coil with Cap - Suzuki Models

Brand new aftermarket external ignition coil with spark plug cap.

Features:

• Direct replacement of your original unit.
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials.

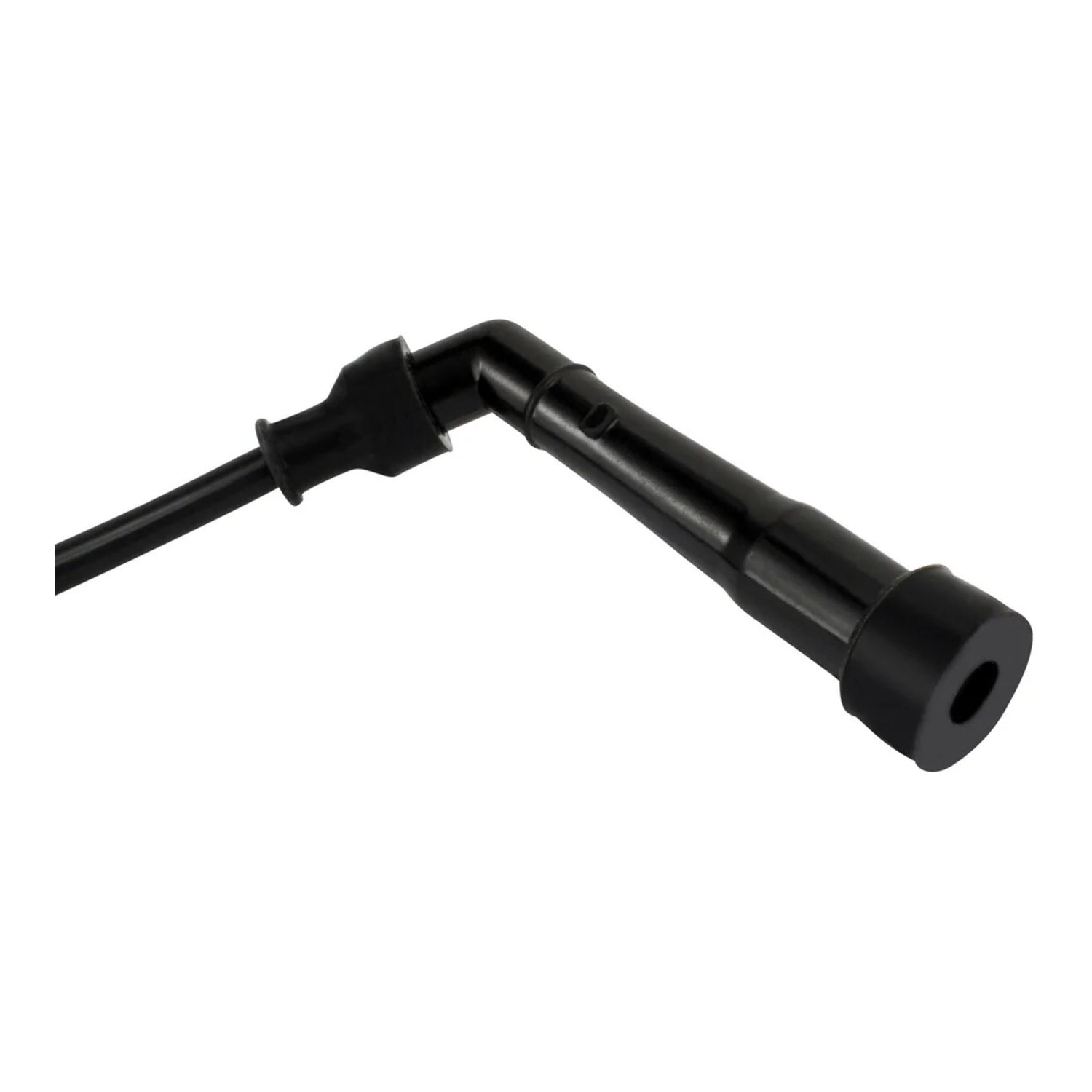

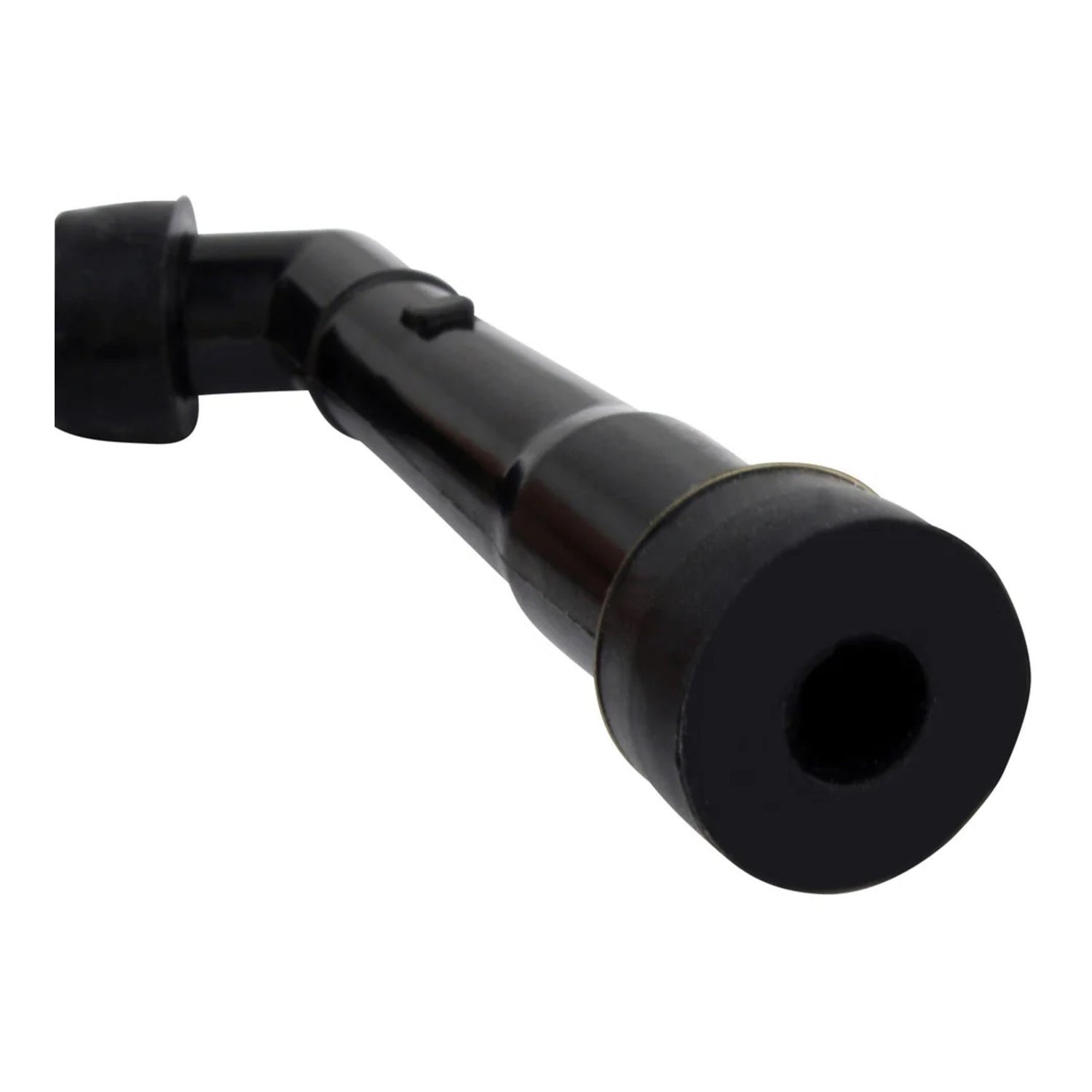

• Spark plug cap(s) included.
• All products shipped are tested.

Specifications:

• Width: 46m
• Length: 66mm
• Height: 38mm
• Wires length: 180mm
• Fixation holes centre to centre: 55mm
• Primary Resistance: 0.9 ohms
• Secondary Resistance without cap: 6.6k ohms
• Secondary Resistance with cap: 16.9k ohms

*The image shown is for illustrative purposes only. Actual product colour may vary. Depending on availability and model, the item may be supplied in blue or black. Product specifications and quality remain the same regardless of colour. If in doubt, do not hesitate to compare our item to your original part.
