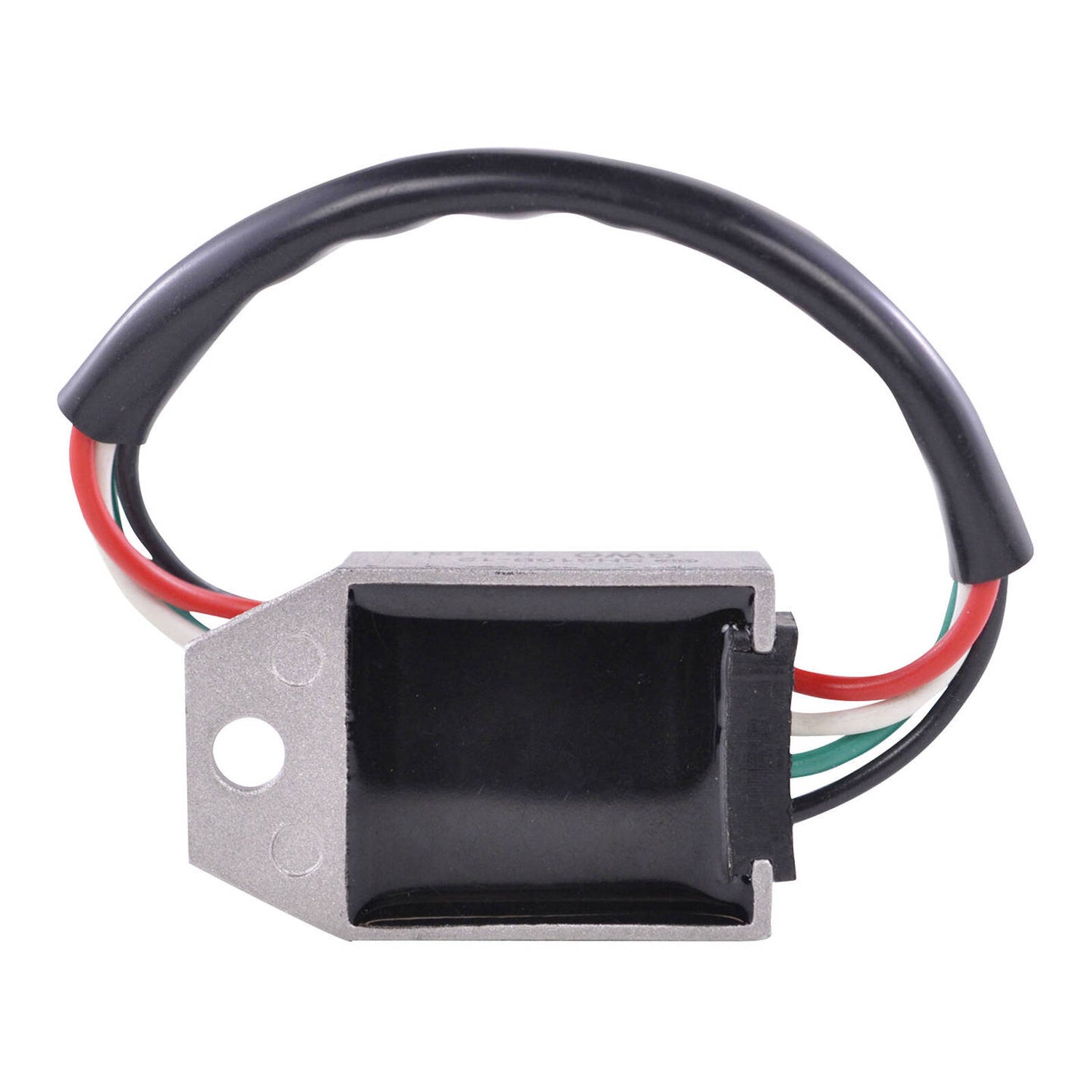

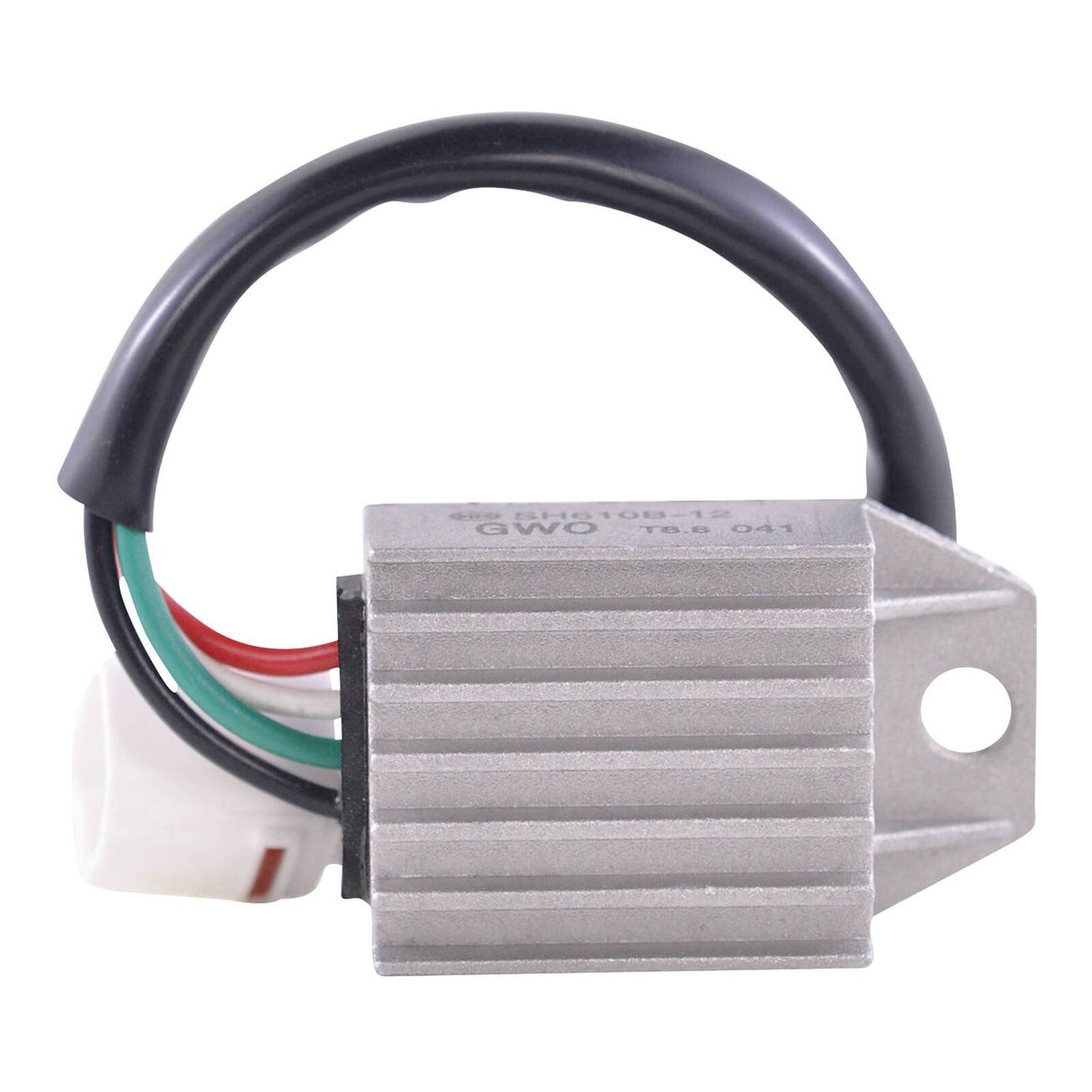

Voltage Regulator Rectifier - KTM / Yamaha (Assorted Fitments)

Brand new aftermarket voltage regulator rectifier.

• Direct replacement to the original unit
• Plug-and-play, direct fit, easy installation
• No assembly required
• Higher grade of electric components
• The quality exceeds the OEM equipment
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare The item to the original part.

Before installing the new voltage regulator rectifier:

• Check the AC output of the stator
• Replace any burned or corroded connectors on stator and regulator/rectifier
• Check and repair any melted wiring
• Use hi-temp dielectric grease on all connectors

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Dimensions:

• Width: 88 mm
• Length: 79 mm
• Height: 27 mm
• Wires length: 110 mm

Other specifications:

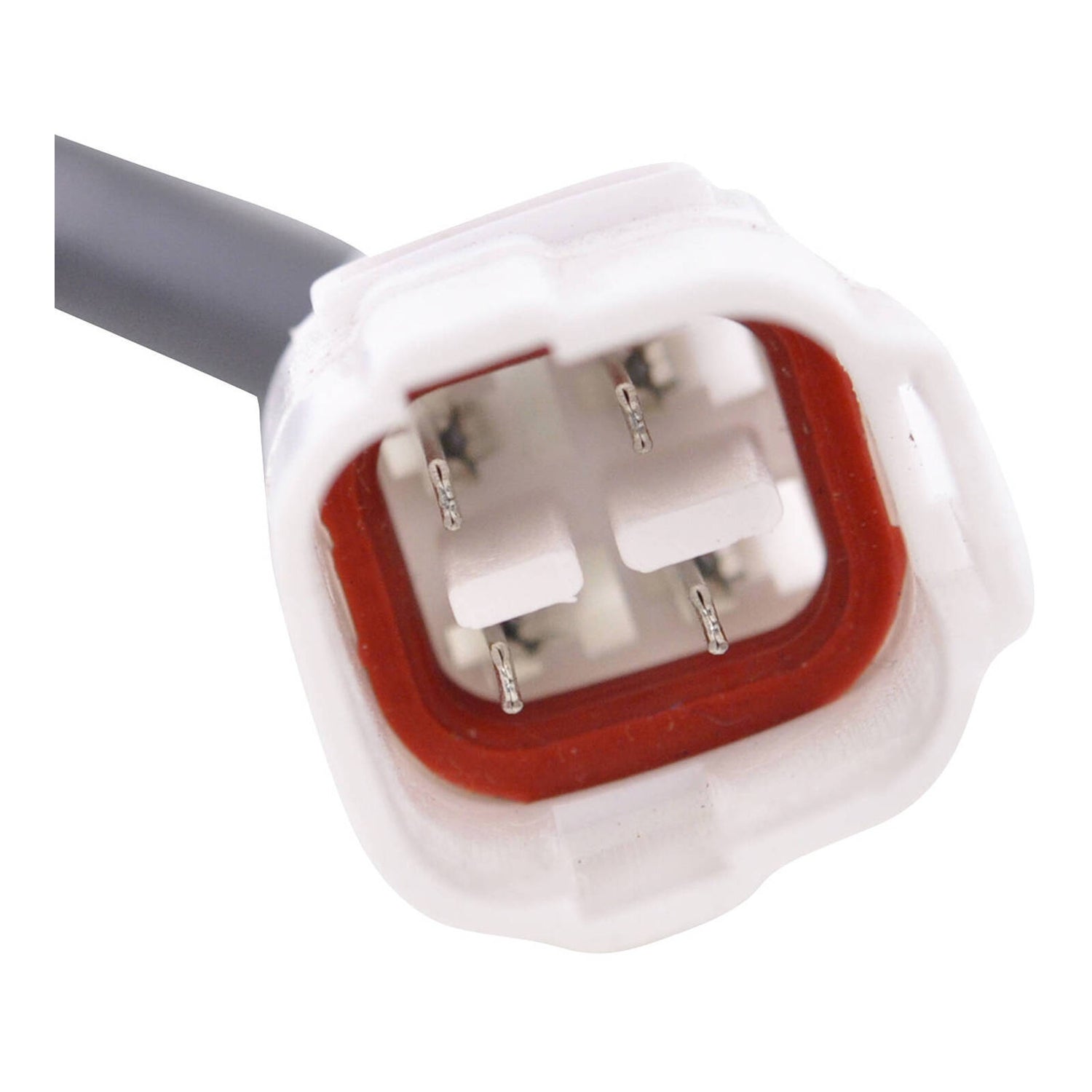

• Number of plugs: 1
• Number of pins: 4
• Number of wires: 4
• Minimum Charging Voltage: 14.5 V +/- 0.5 V
• Maximum Charging Current: 20 A / 150 W
• Open Circuit Voltage: < 15 V
• Operation Temperature: -20°C to 85°C
