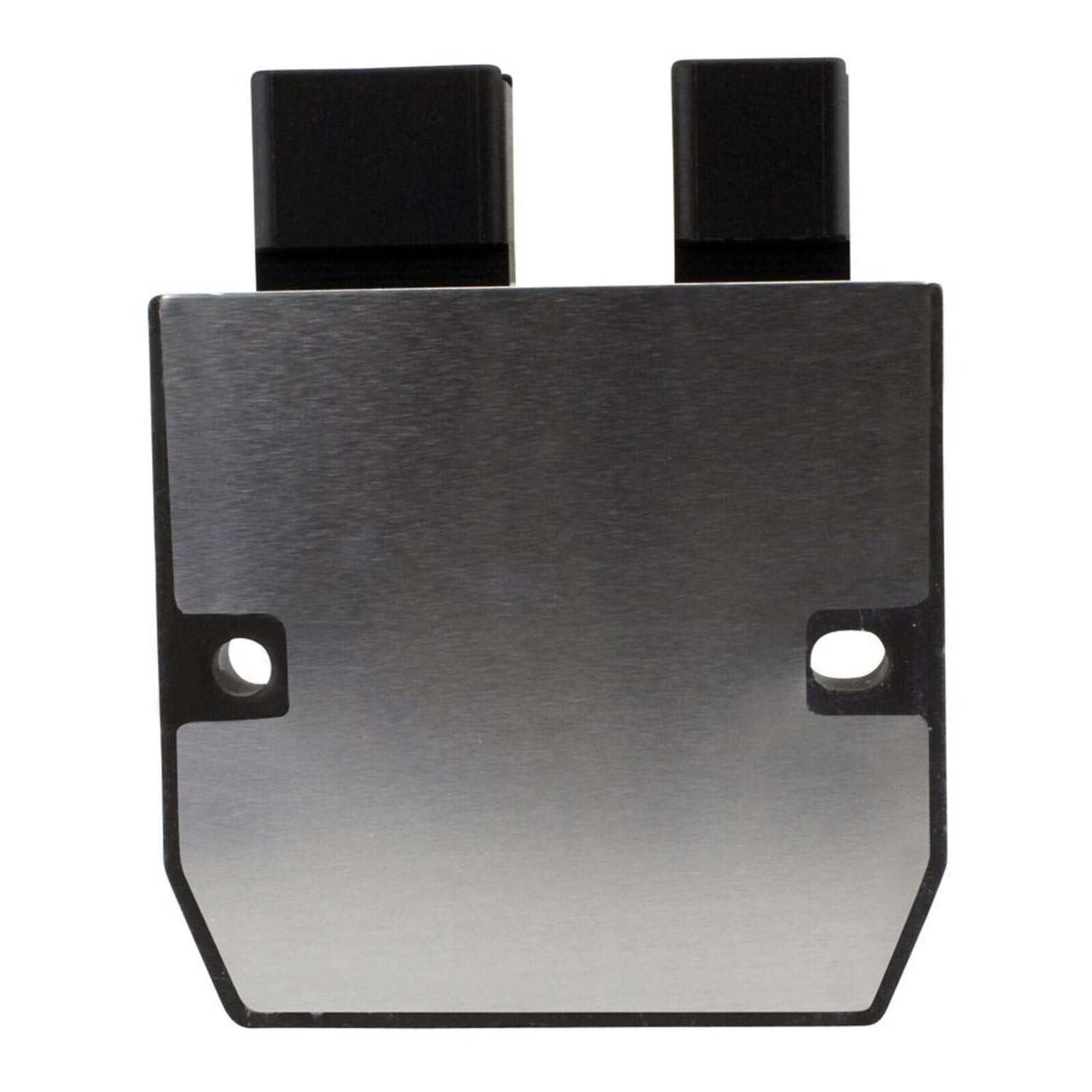

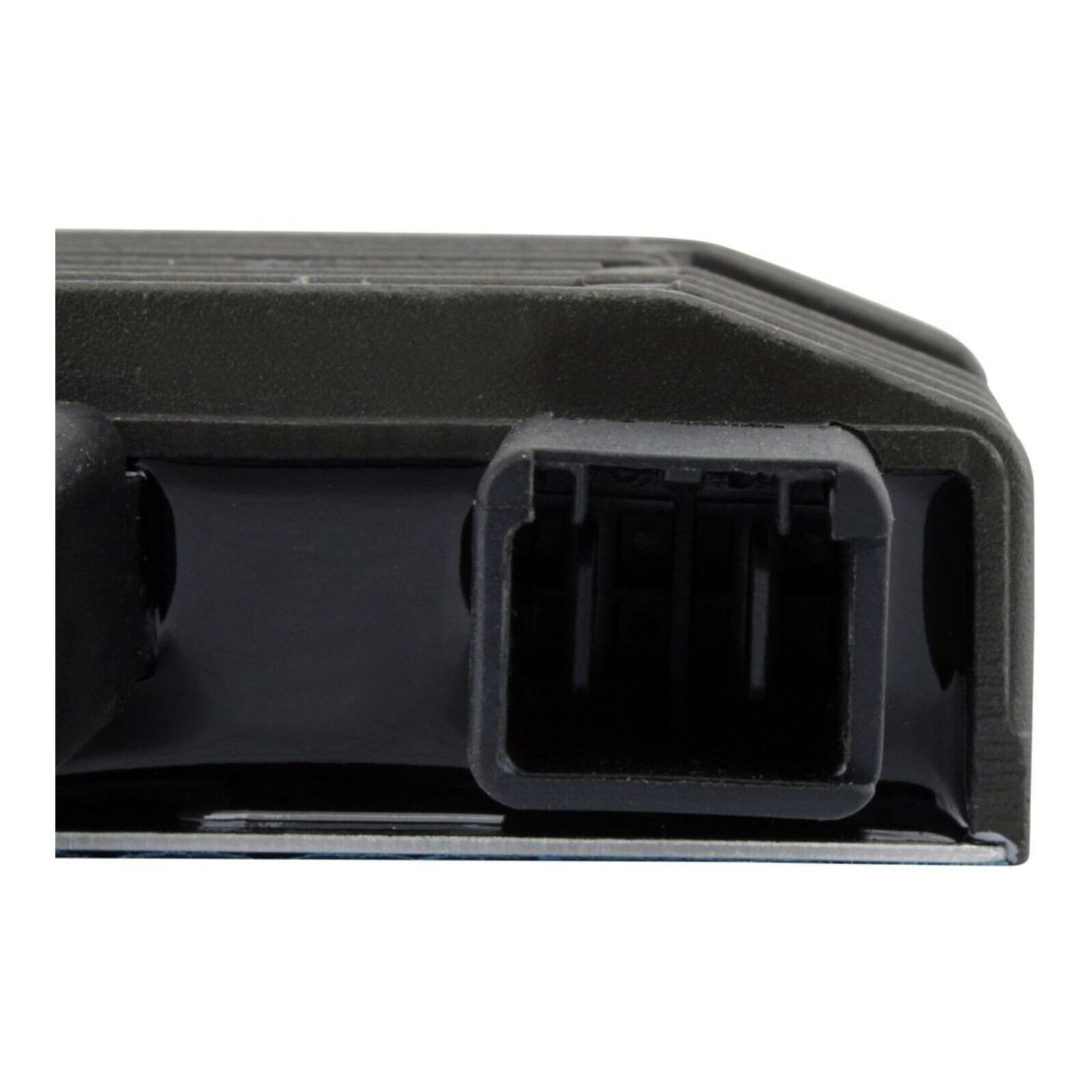

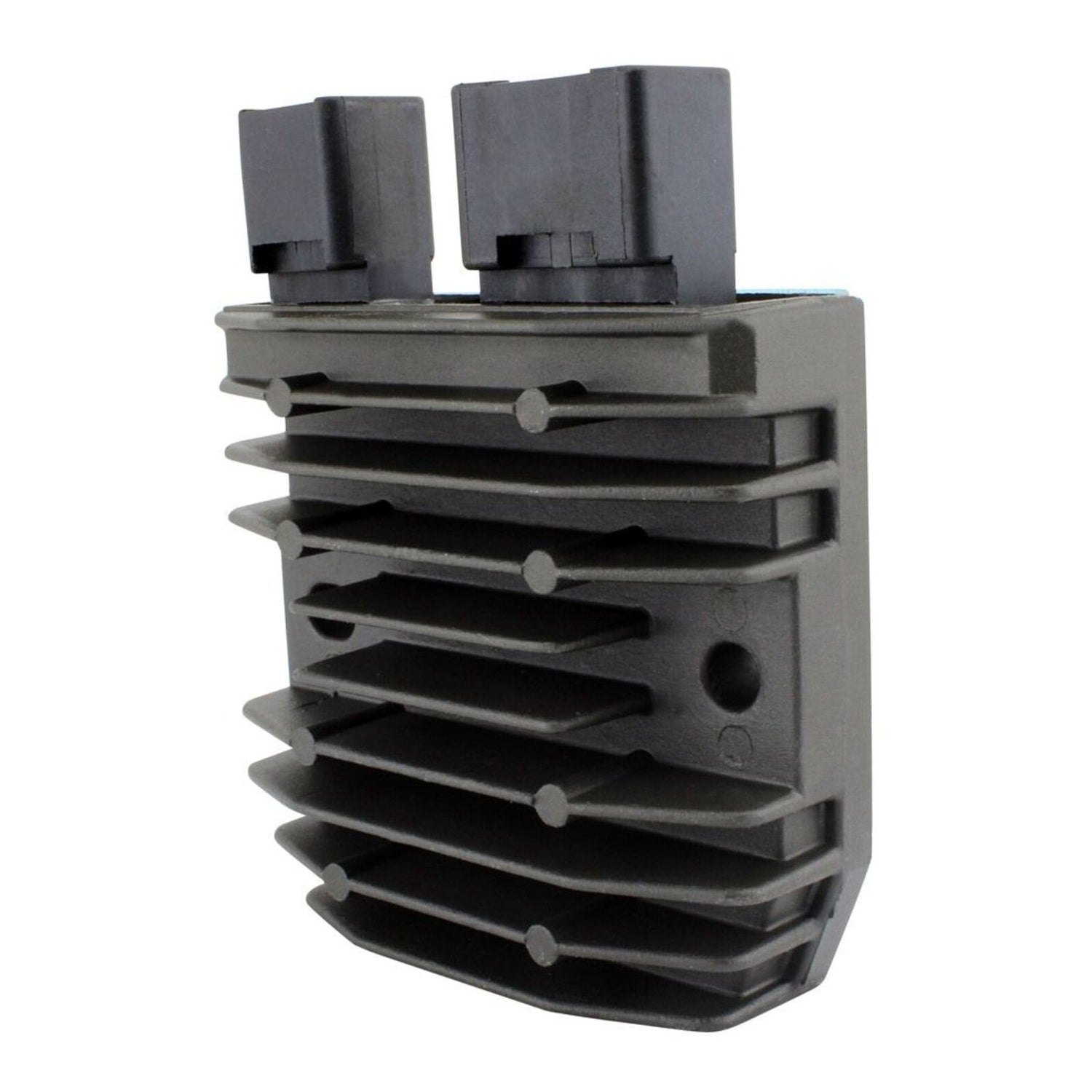

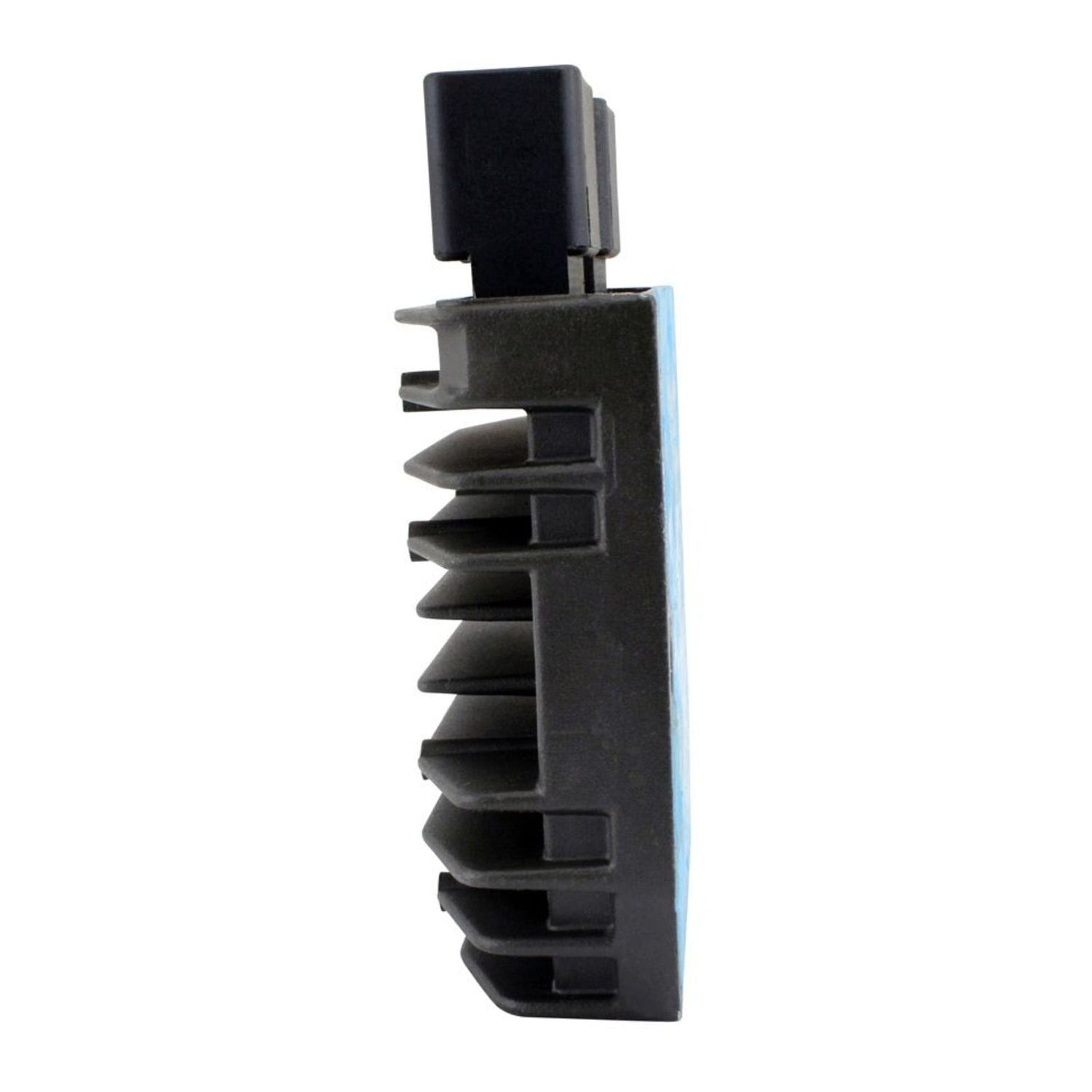

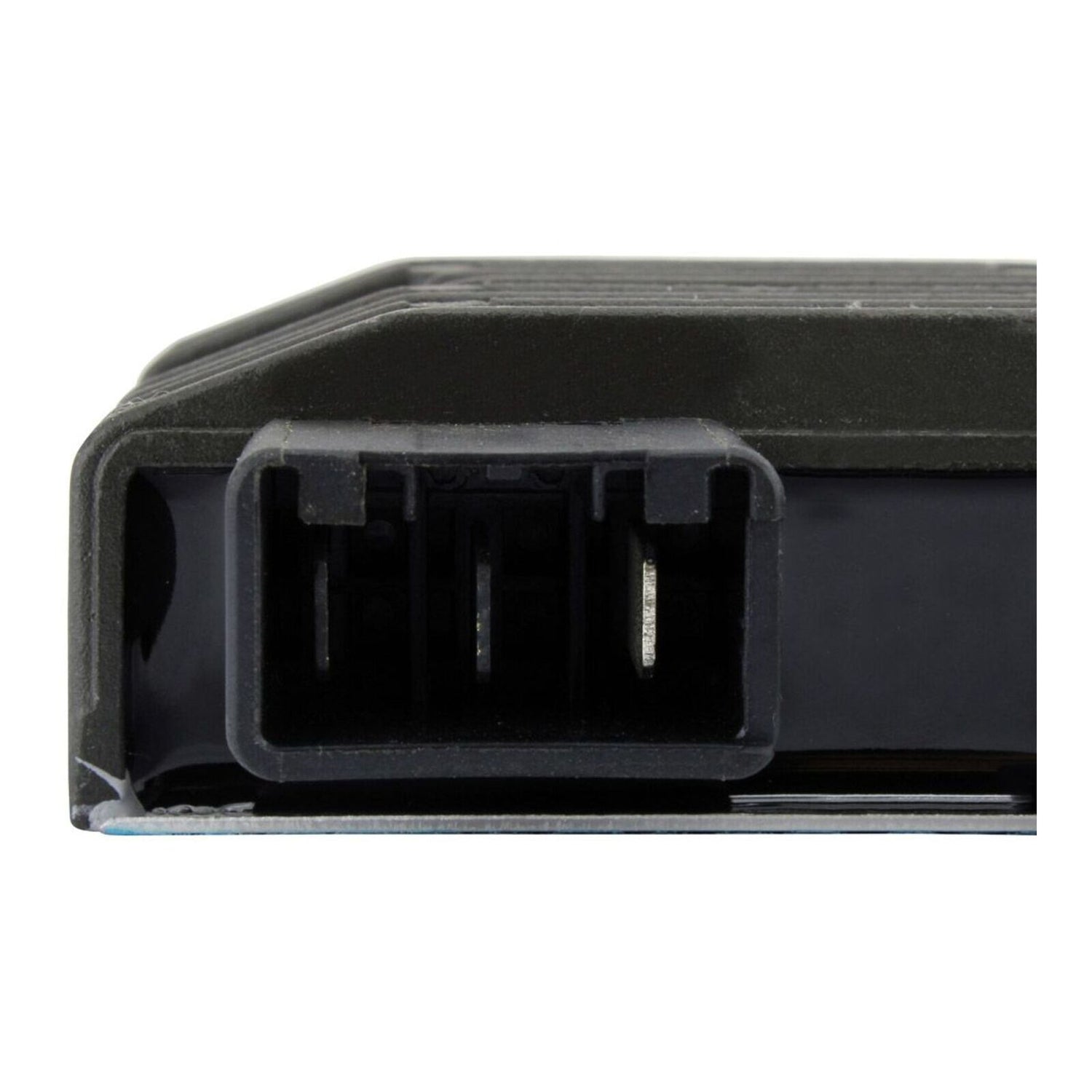

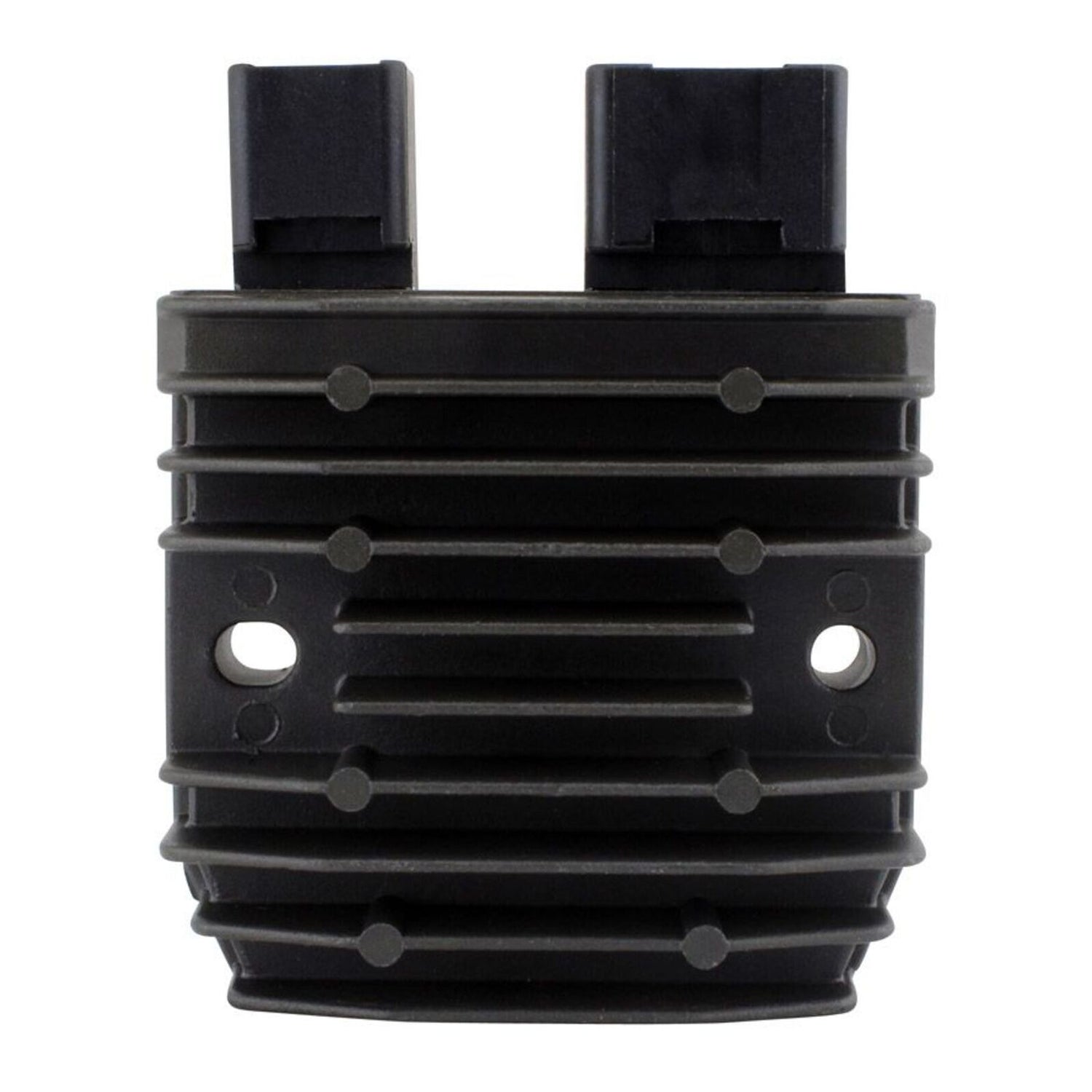

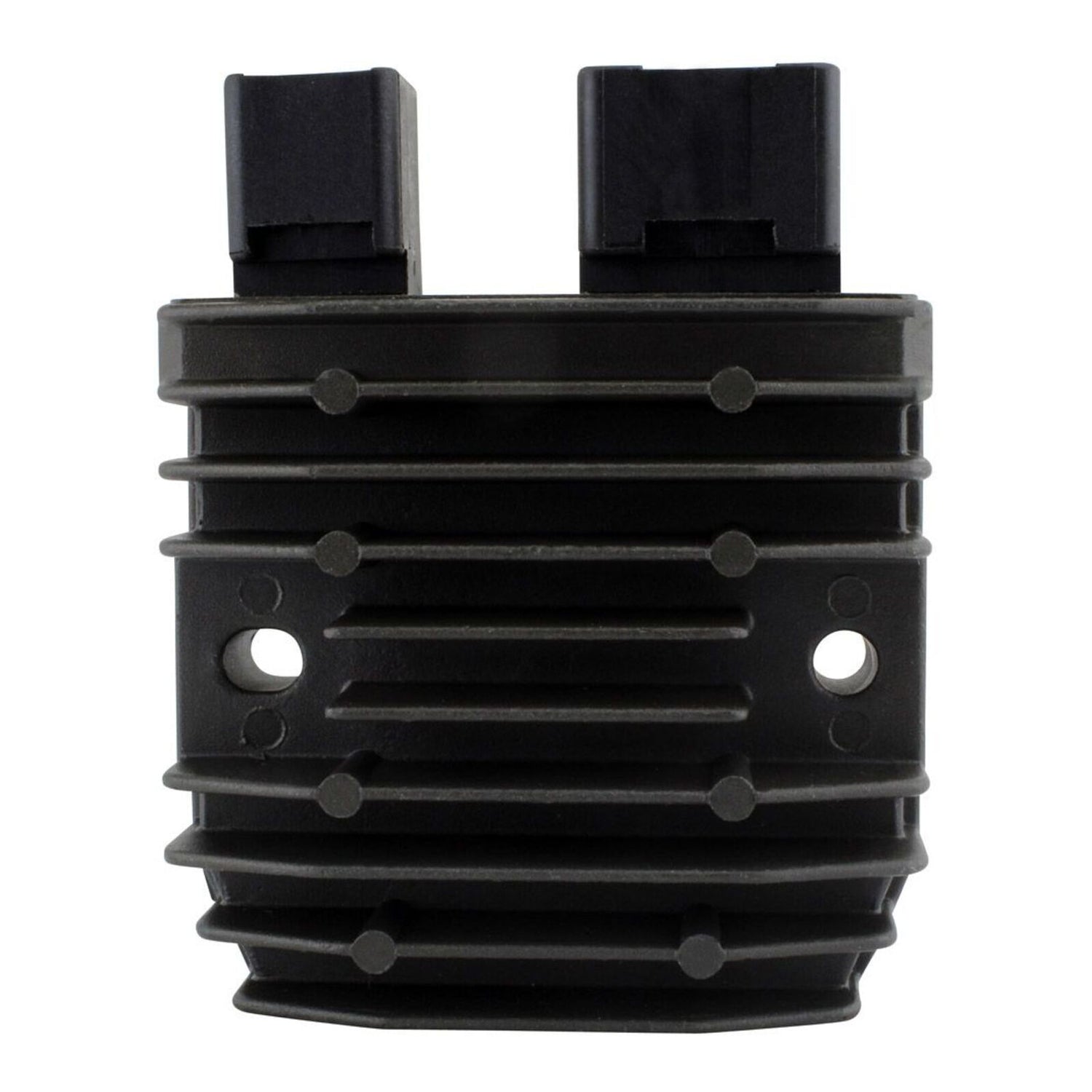

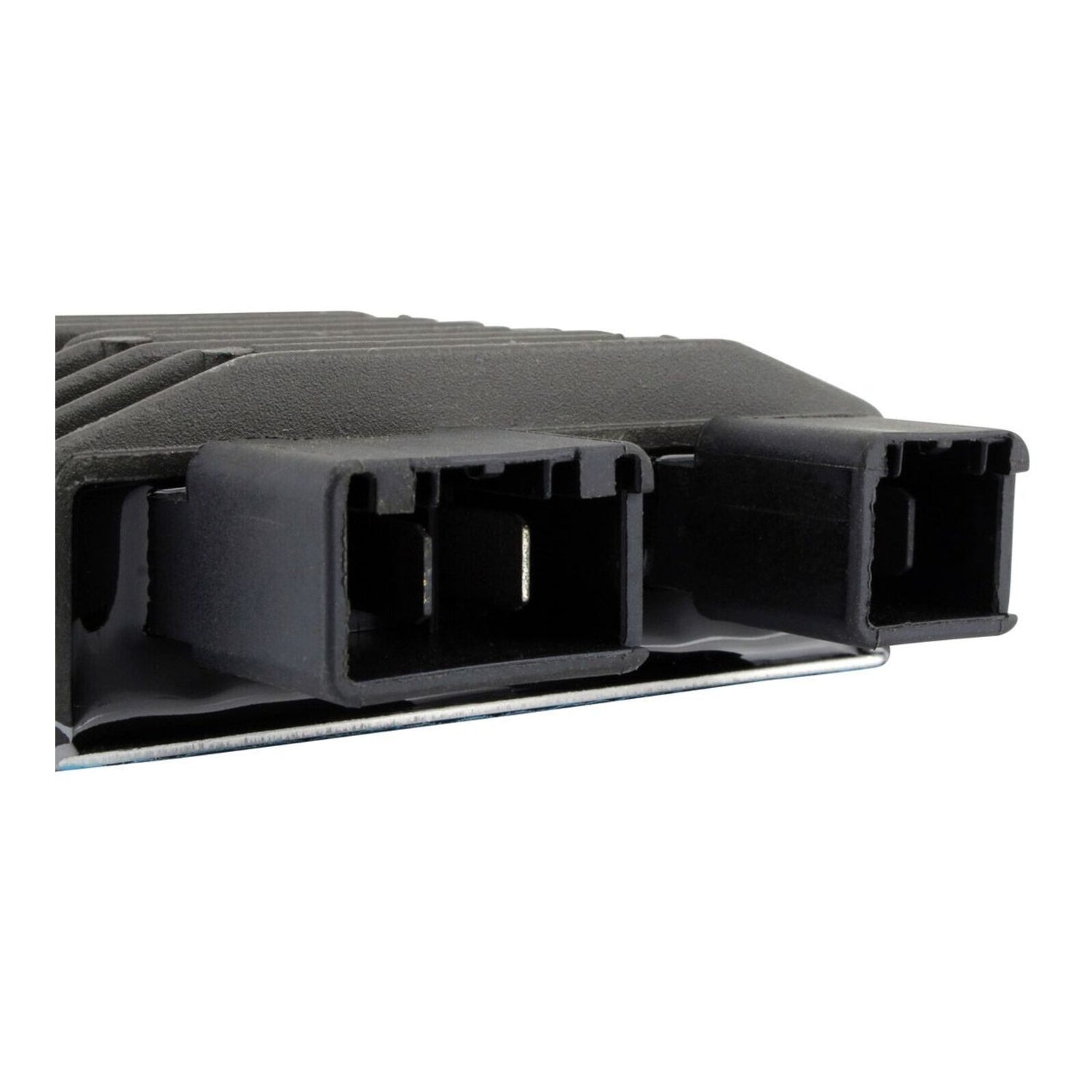

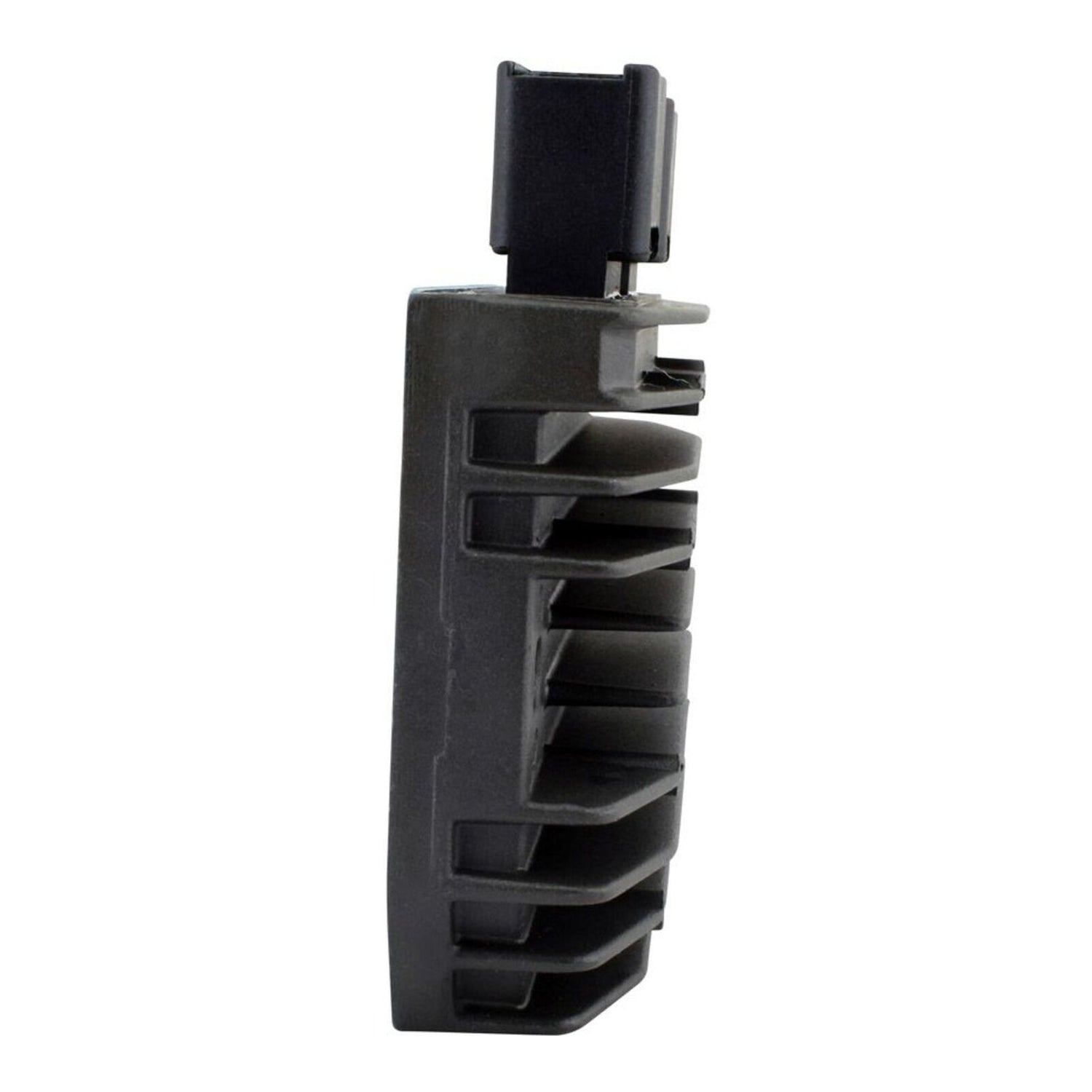

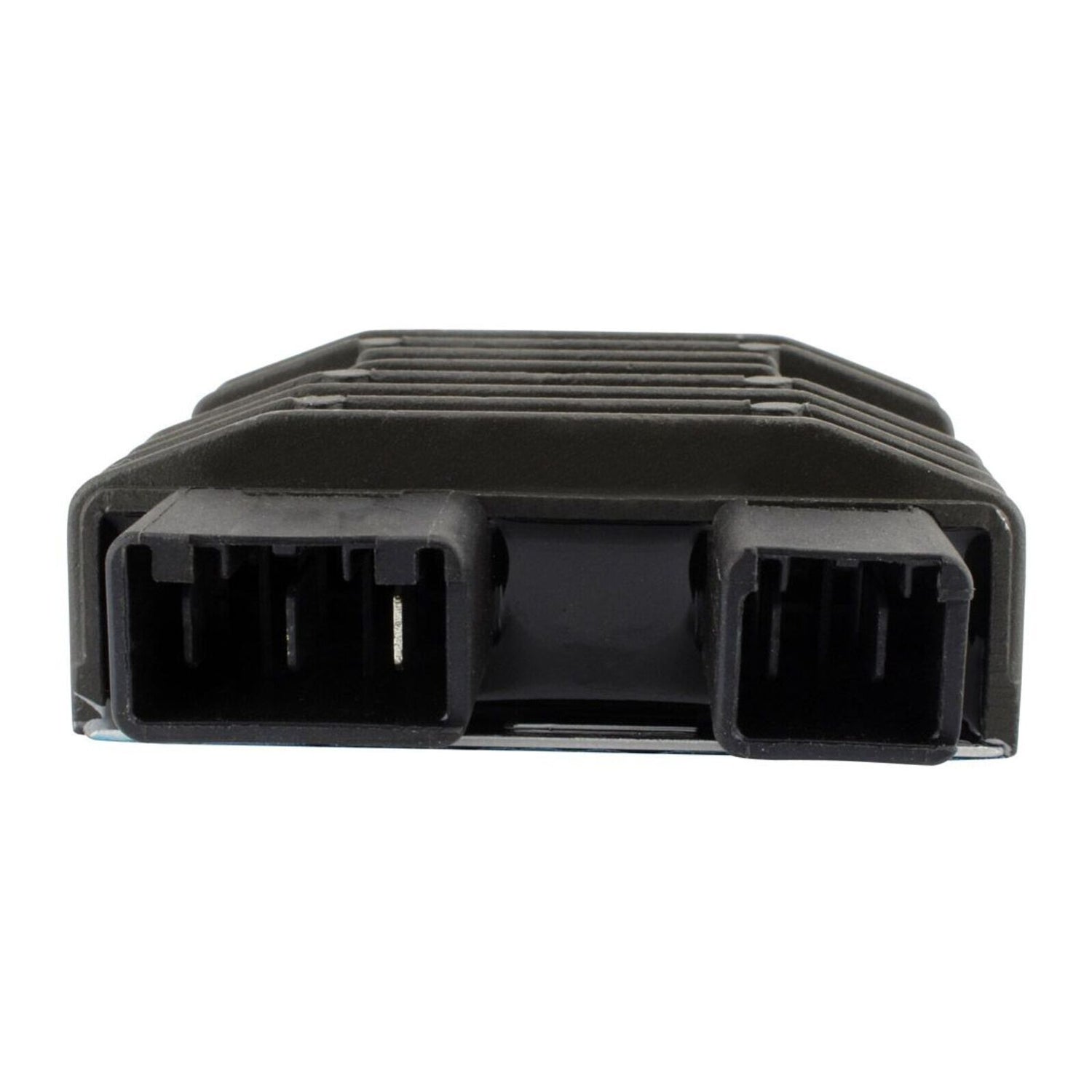

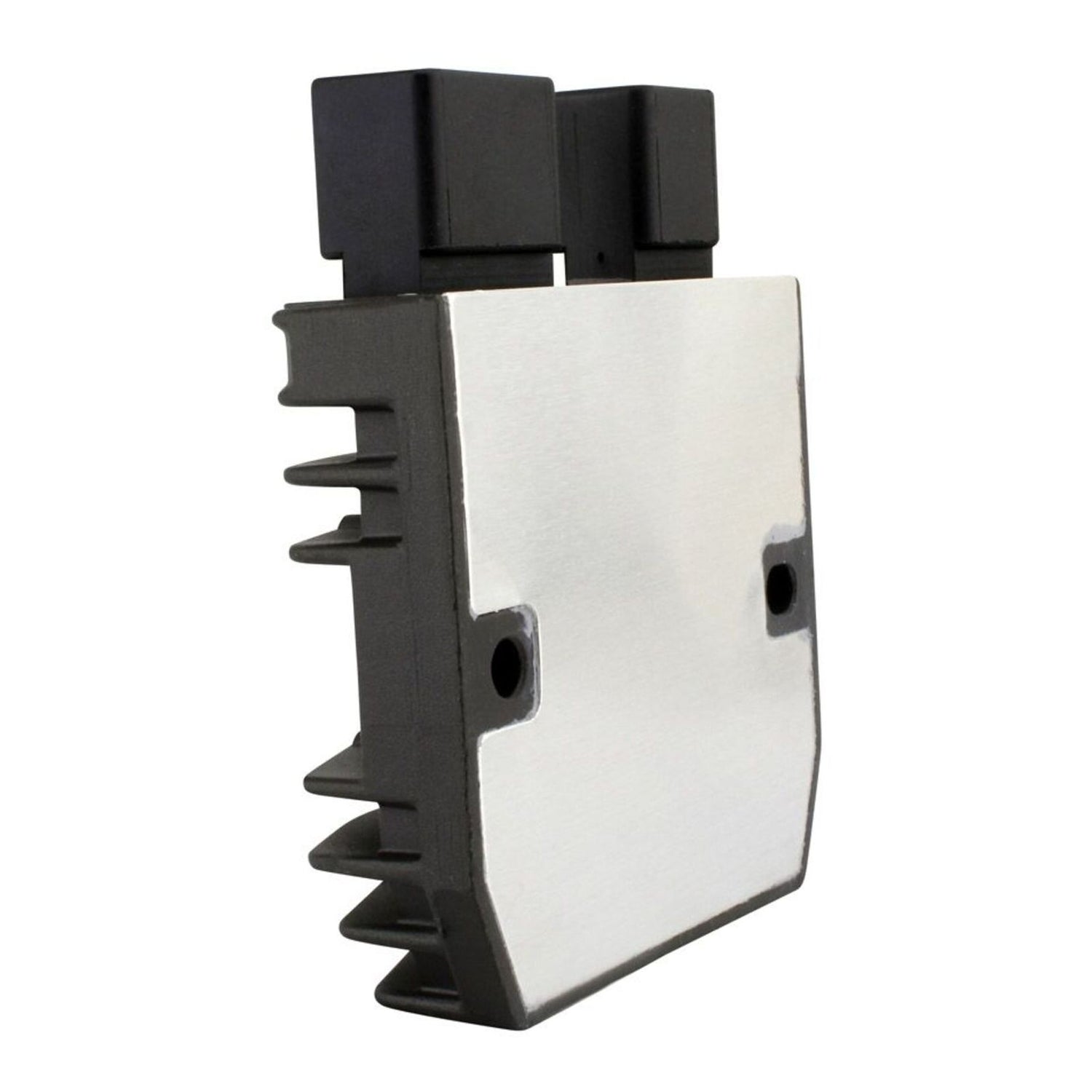

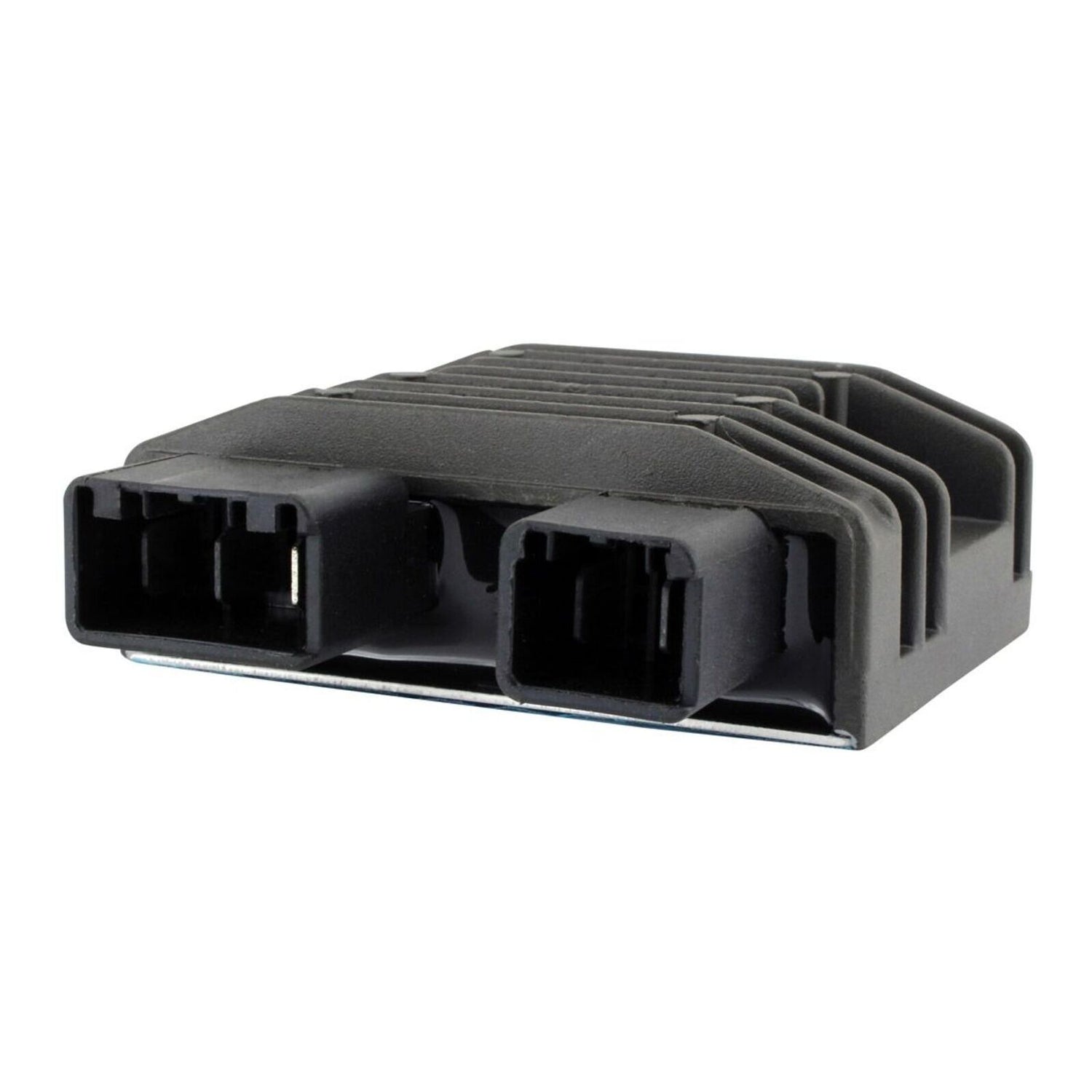

RM Voltage Regulator Assorted Honda Models (Refer to Fitments) (RMS020-101473)

Brand new aftermarket voltage regulator rectifier.

• Direct replacement to the original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• Higher grade of electric components.
• The quality exceeds the OEM equipment
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare The item to the original part.

Before installing the new voltage regulator rectifier:

• Check the AC output of the stator.
• Replace any burned or corroded connectors on stator and regulator/rectifier.
• Check and repair any melted wiring.
• Use hi-temp dielectric grease on all connectors.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Dimensions:

• Width: 95 mm
• Length: 150 mm
• Height: 50 mm
• Distance between fixation holes centre to centre: 90 mm

Other specifications:

• Number of plugs: 2
• Number of pins: 5
• Minimum Charging Voltage: 14.5 V +/- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: < 15 V
• Operation Temperature: -20°C to 85°C
