RMSTATOR | SKU:
RMS010107581
New arrival

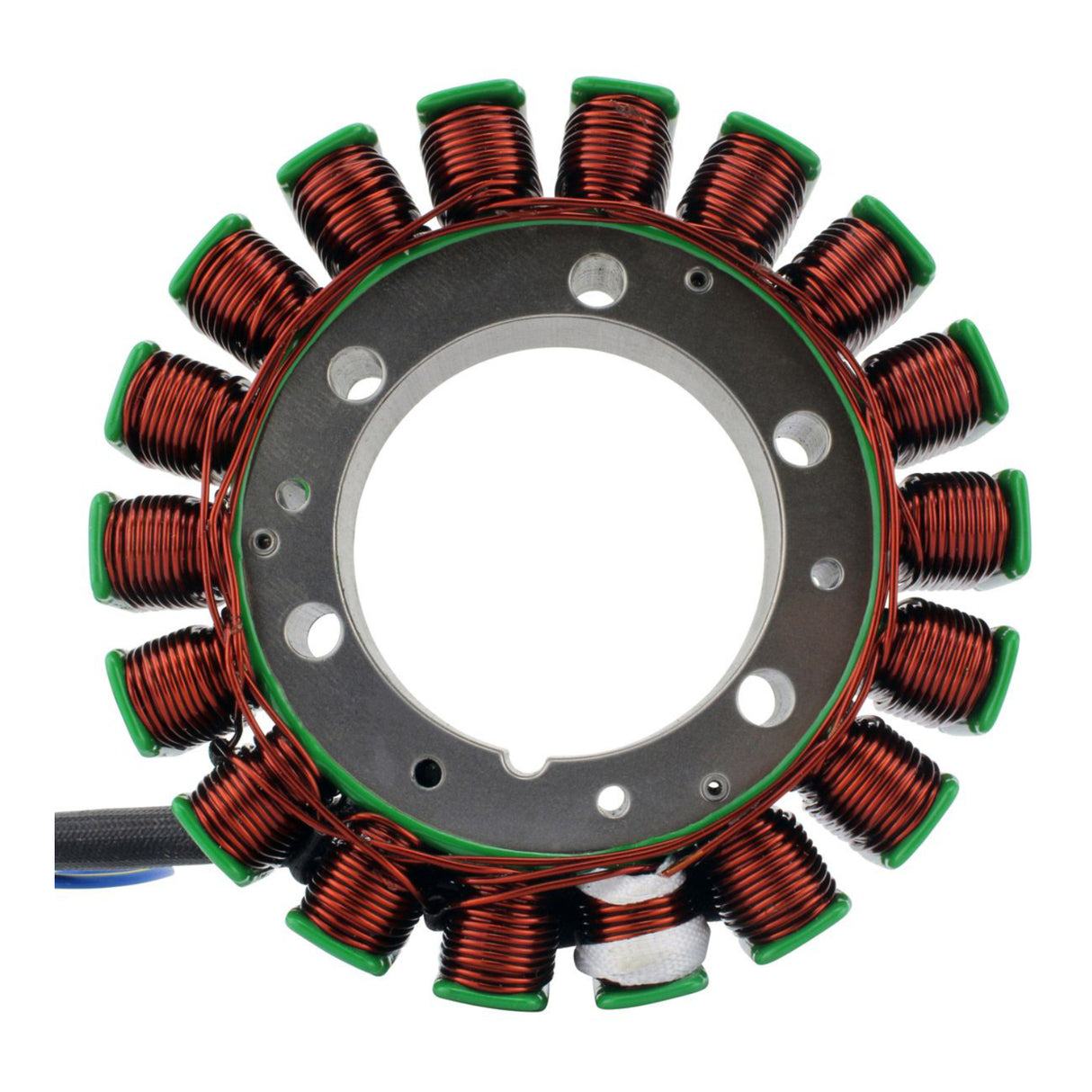

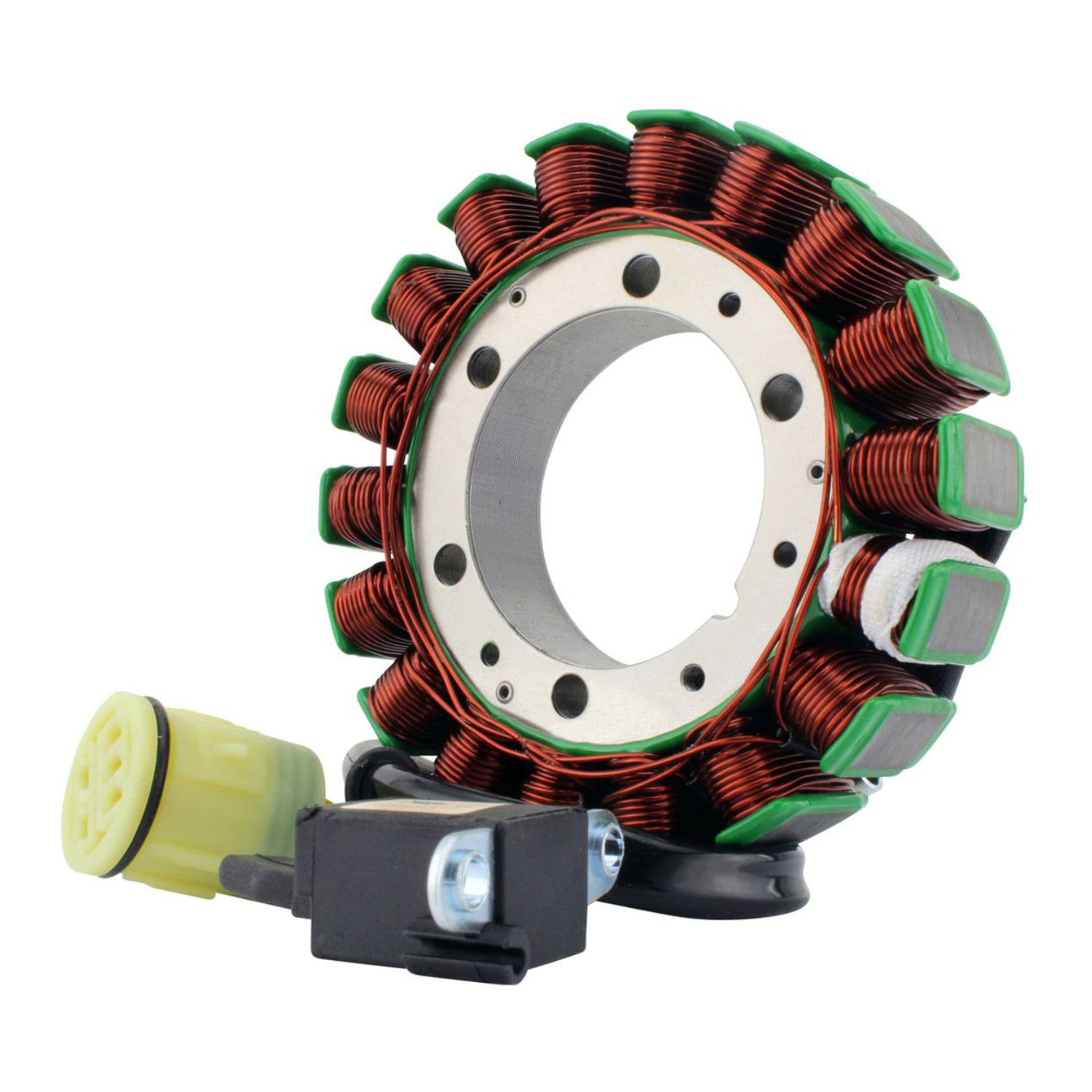

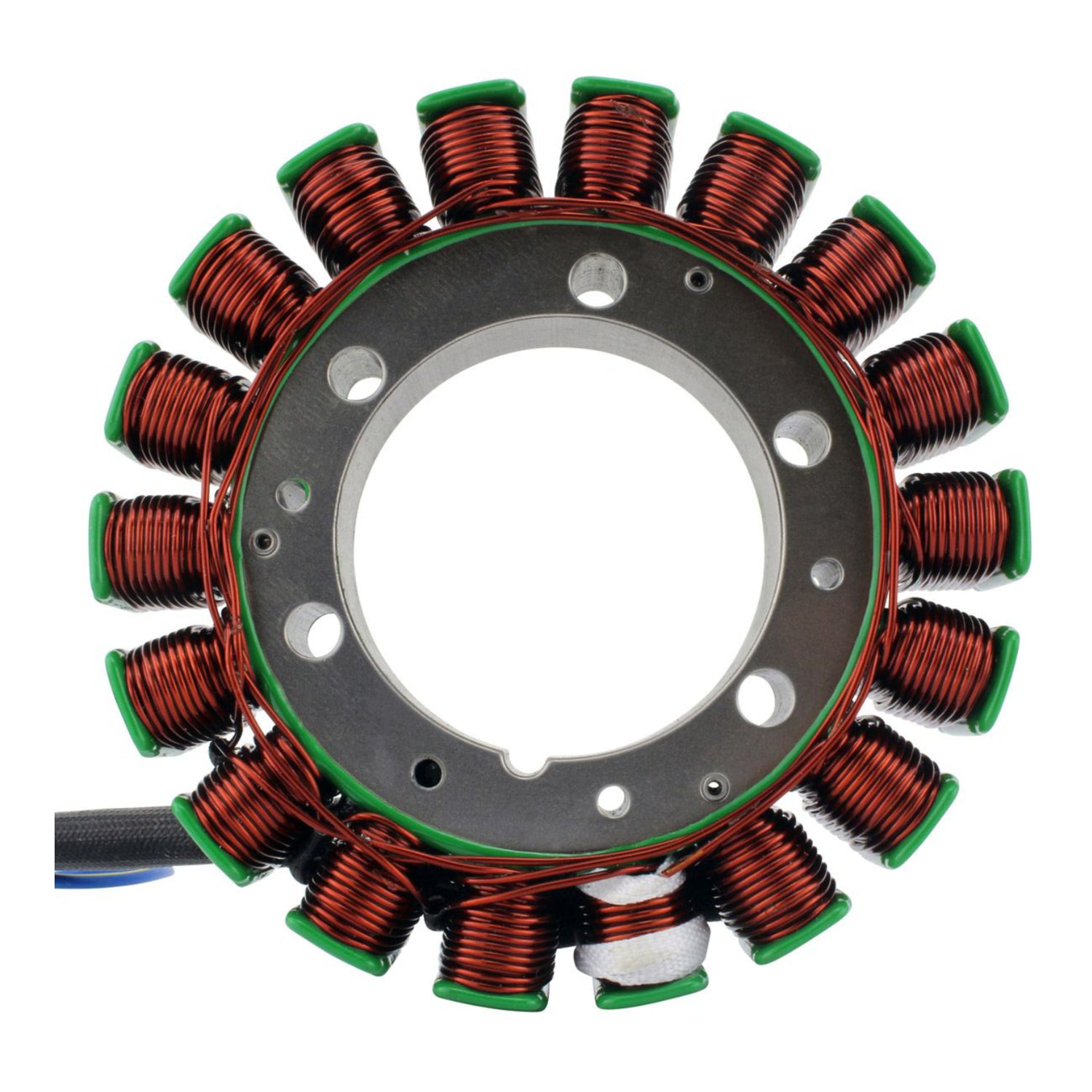

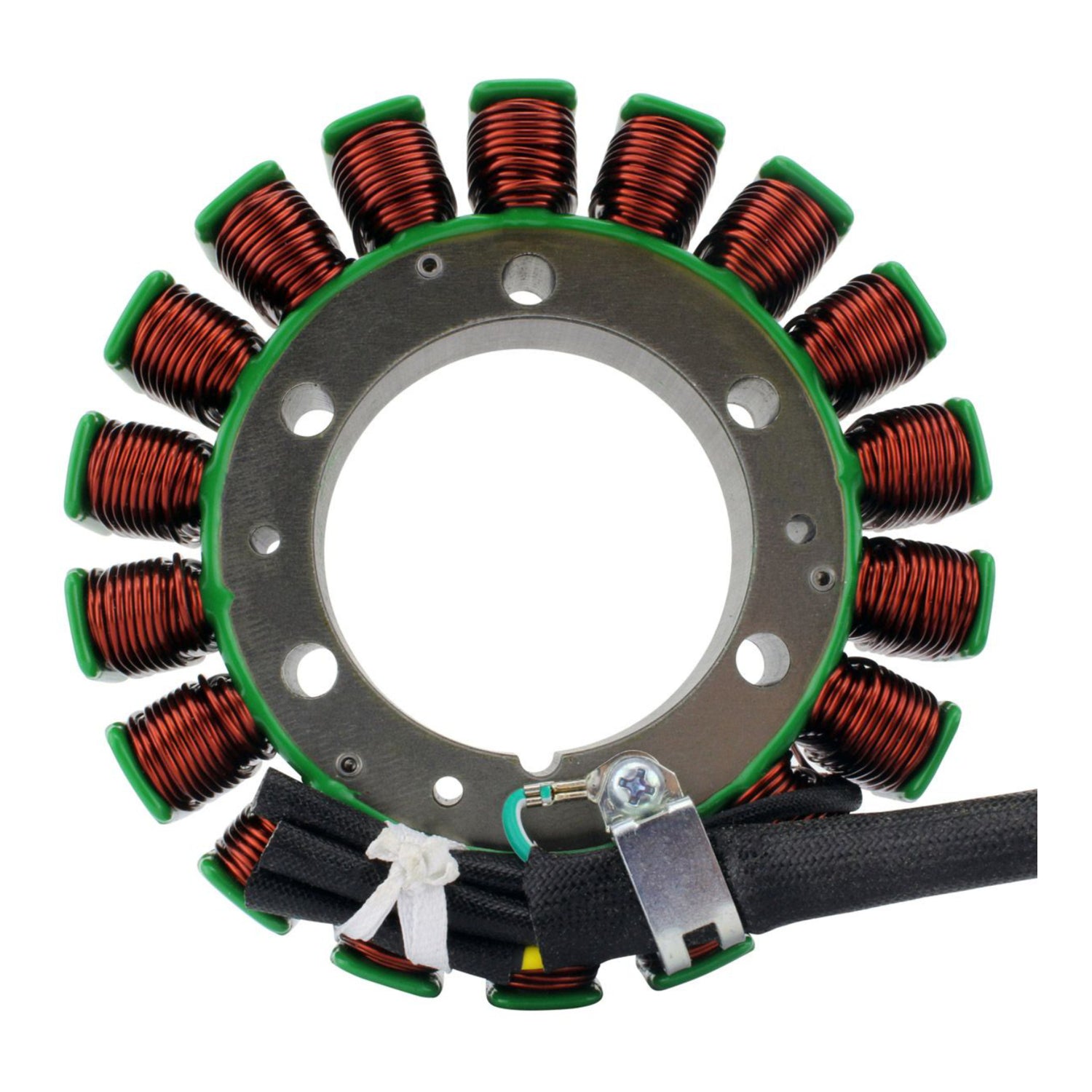

GENERATOR STATOR HOND TRX 650 RINCON 03-05'
GENERATOR STATOR HOND TRX 650 RINCON 03-05'
$479.99
Unit price
/
Unavailable
Couldn't load pickup availability
GENERATOR STATOR HOND TRX 650 RINCON 03-05'
$479.99
Unit price
/
Unavailable
Description
Description

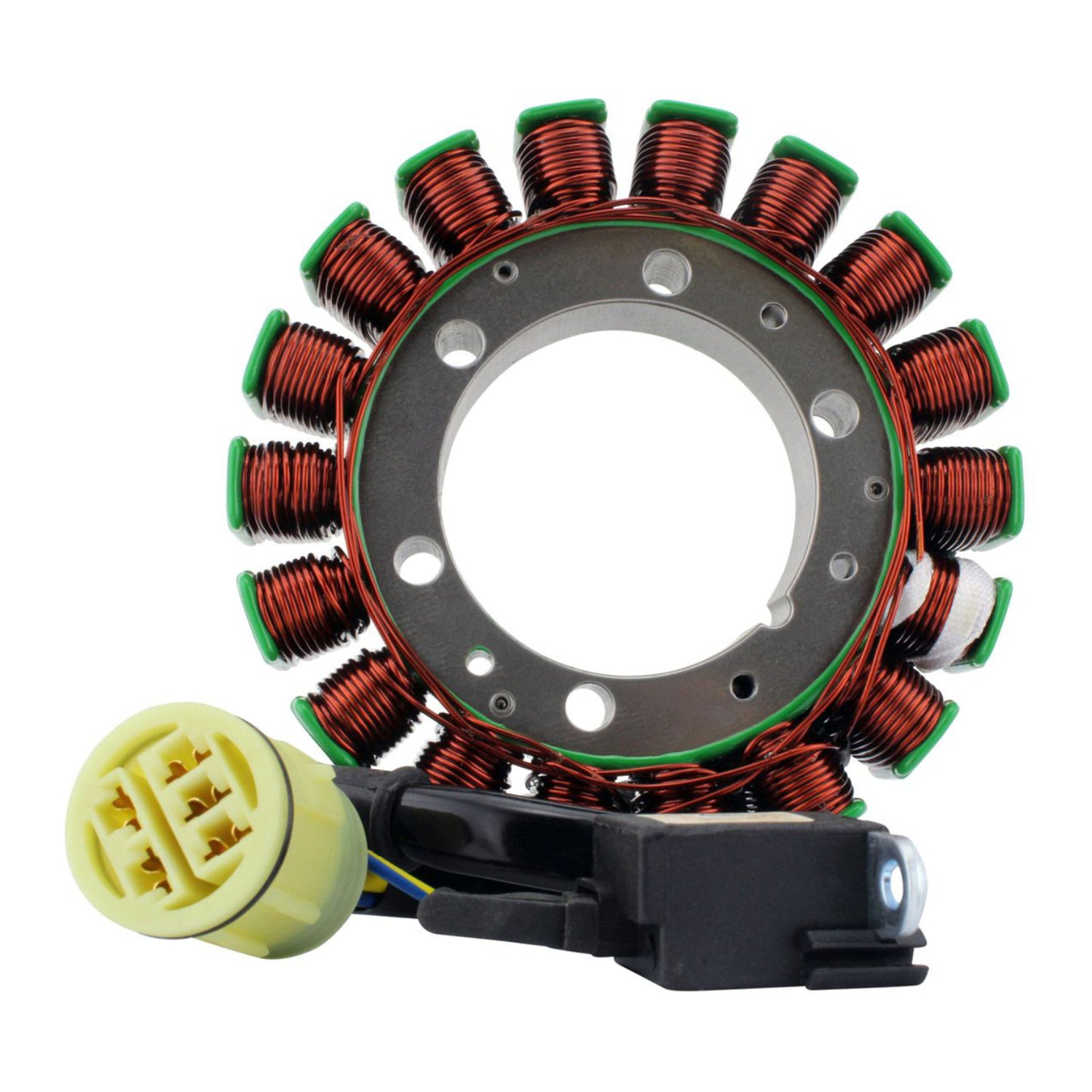

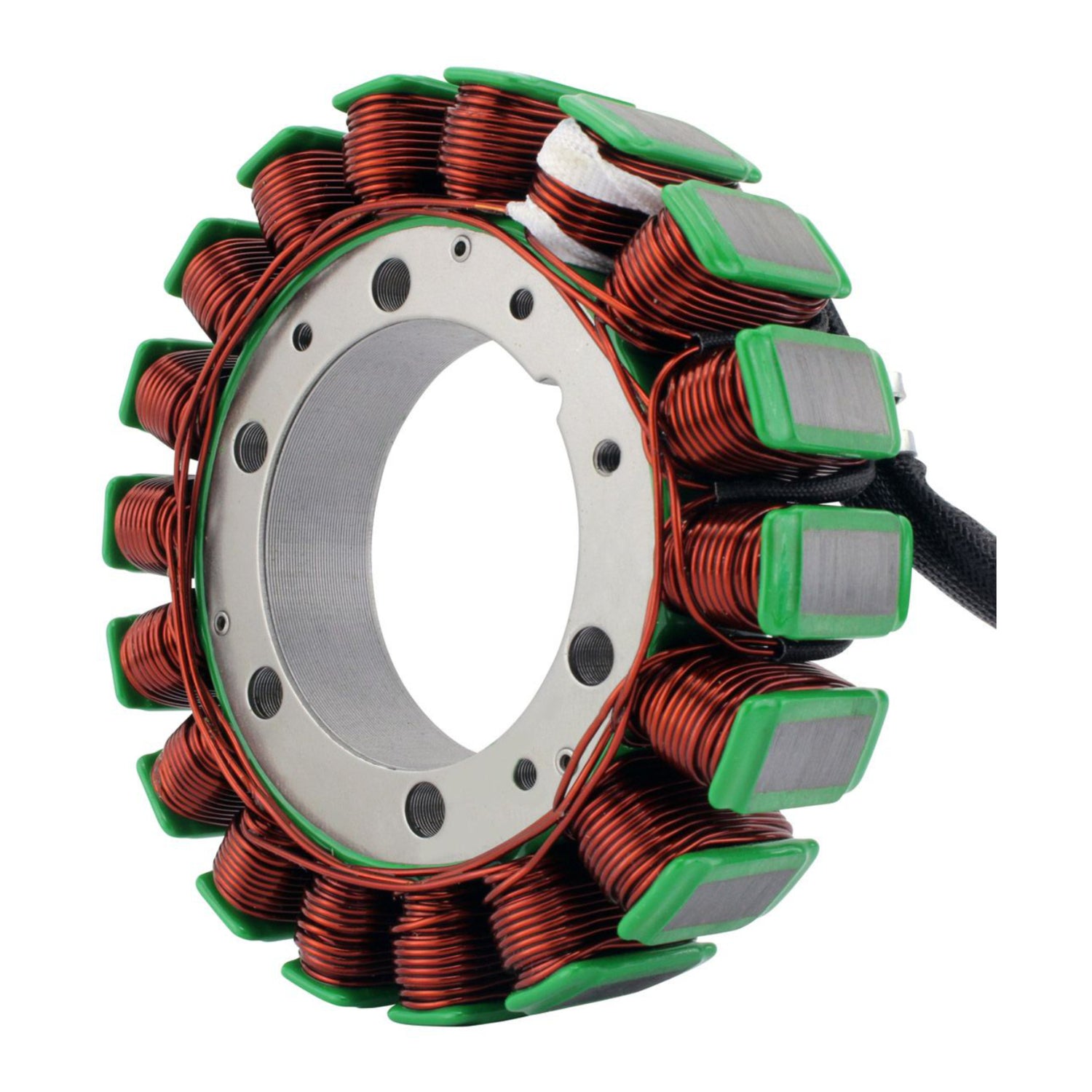

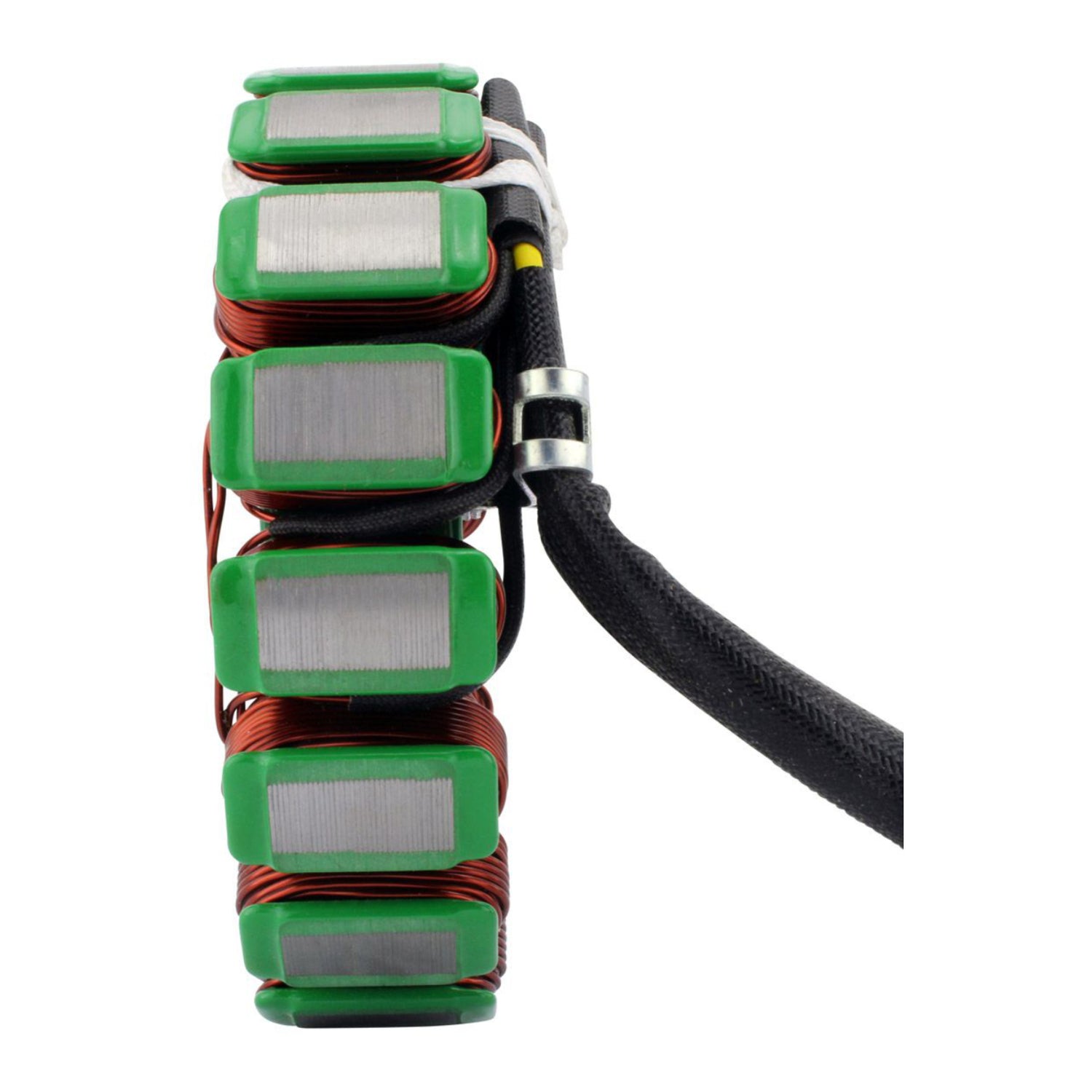

Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest-grade lamination materials

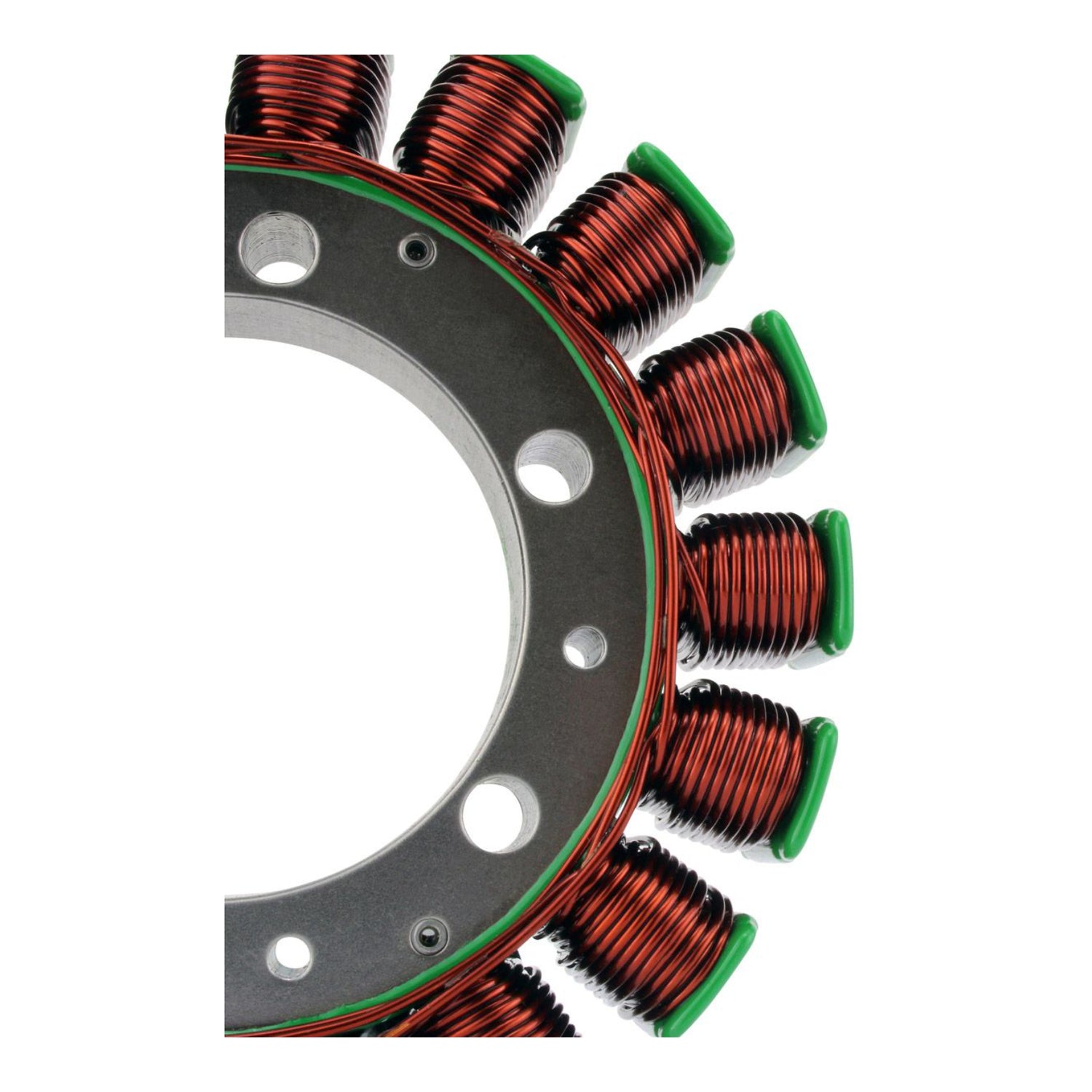

- Highest-grade copper windings, resistant to 200 degrees Celsius.

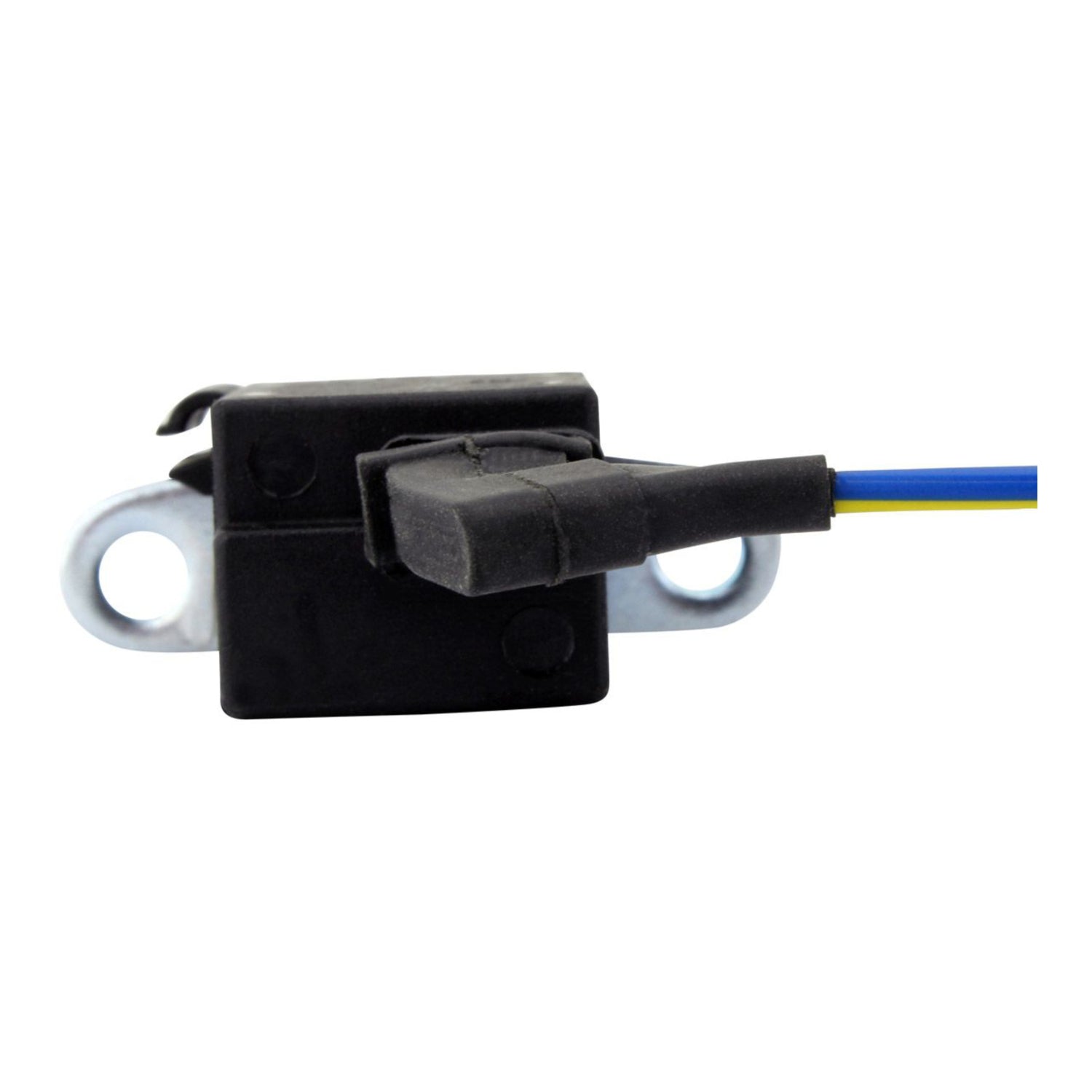

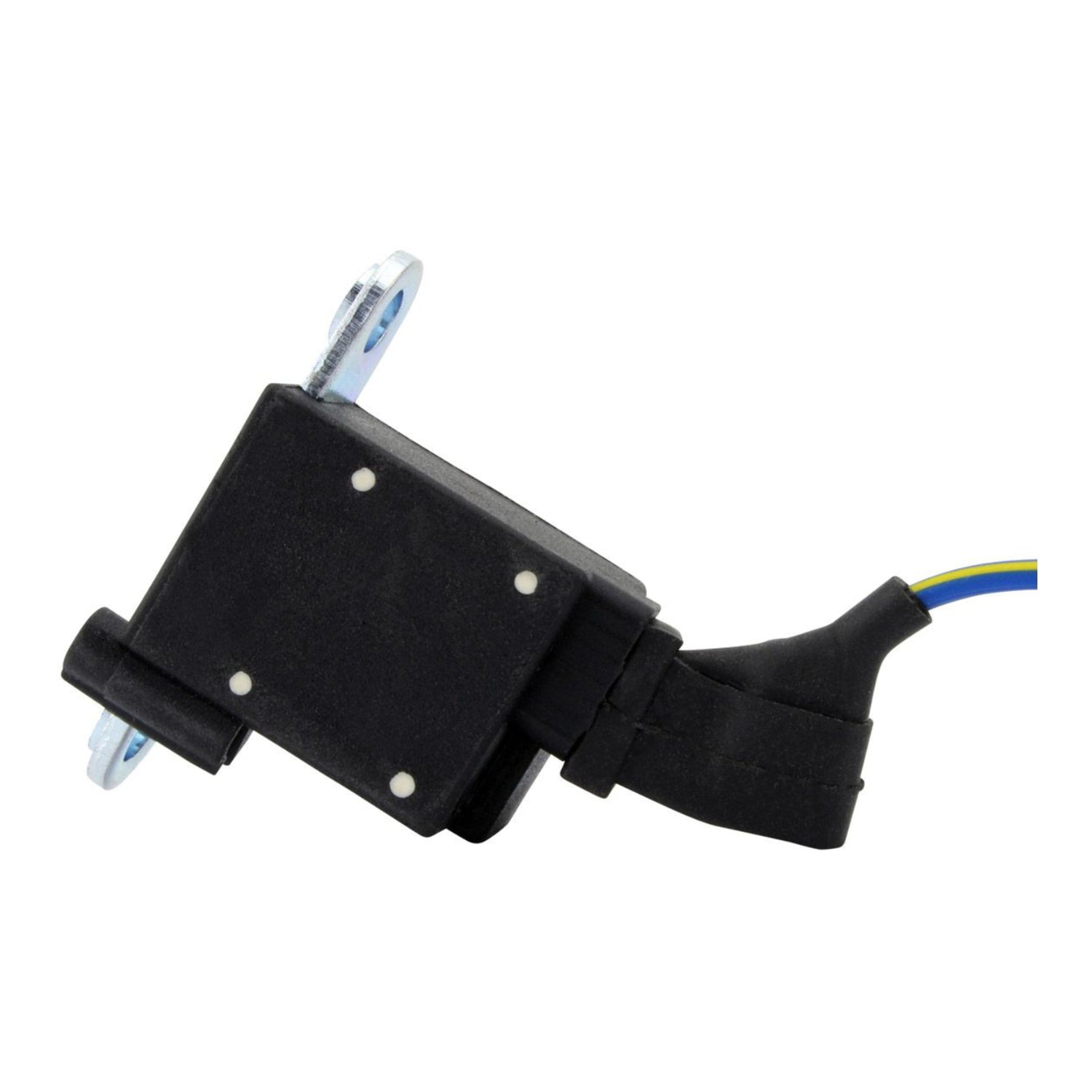

- Pick up pulsar coil included

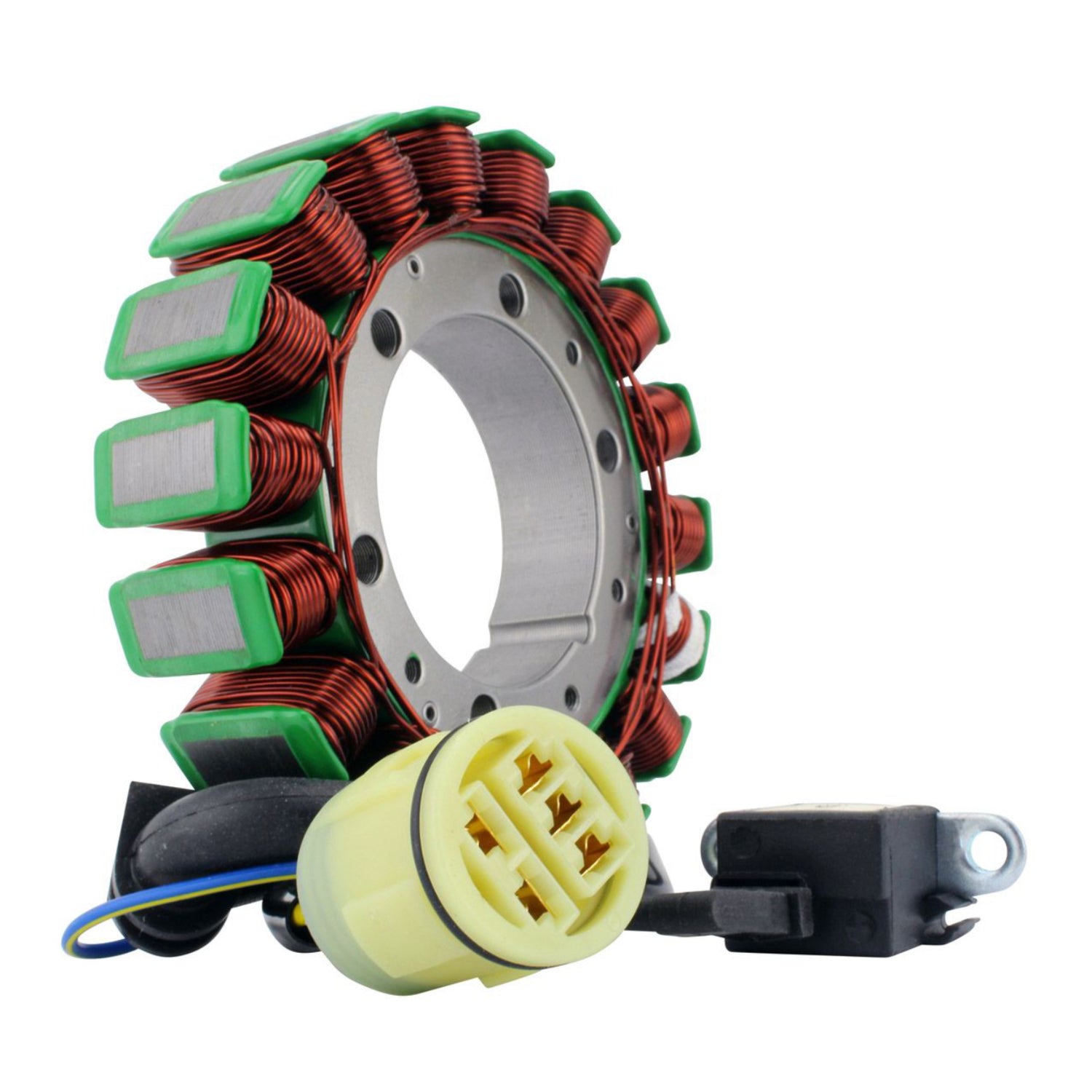

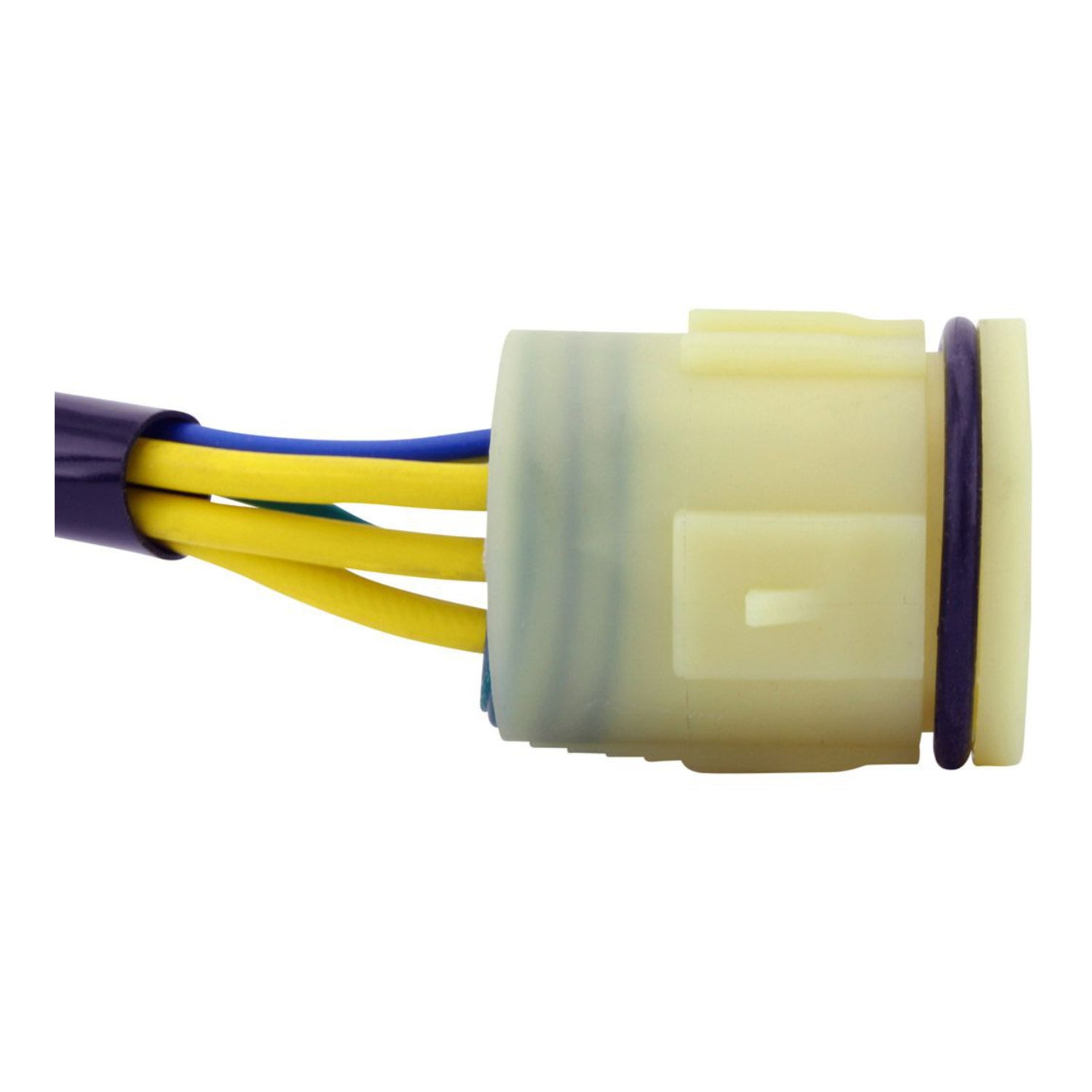

- Connector included
- Rubber grommet included
- All products shipped are tested
Specifications:
Dimensions:
Other specifications:
- Number of wires: 5
- Number of plugs: 1

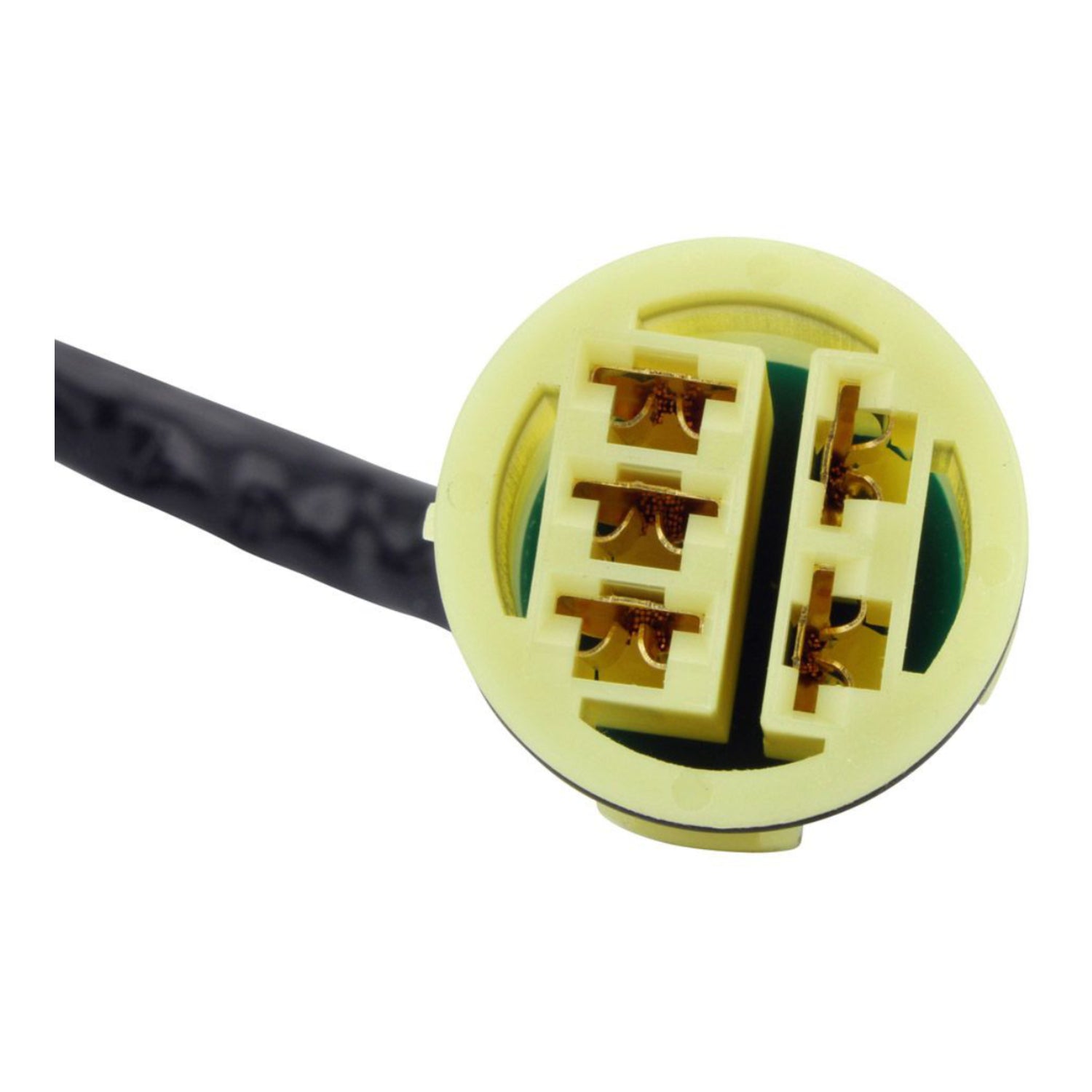

- Number of pins: 5
- Number of poles: 18
Wire-to-wire resistance:
- Alternator: Yellow to Yellow = 0.6 ohms +-20%
- Alternator: Yellow to ground = O.L
- Pickup: Blue/Yellow to Green= 340 ohms +-20%
