RMSTATOR | SKU:
RMS010107173
New arrival

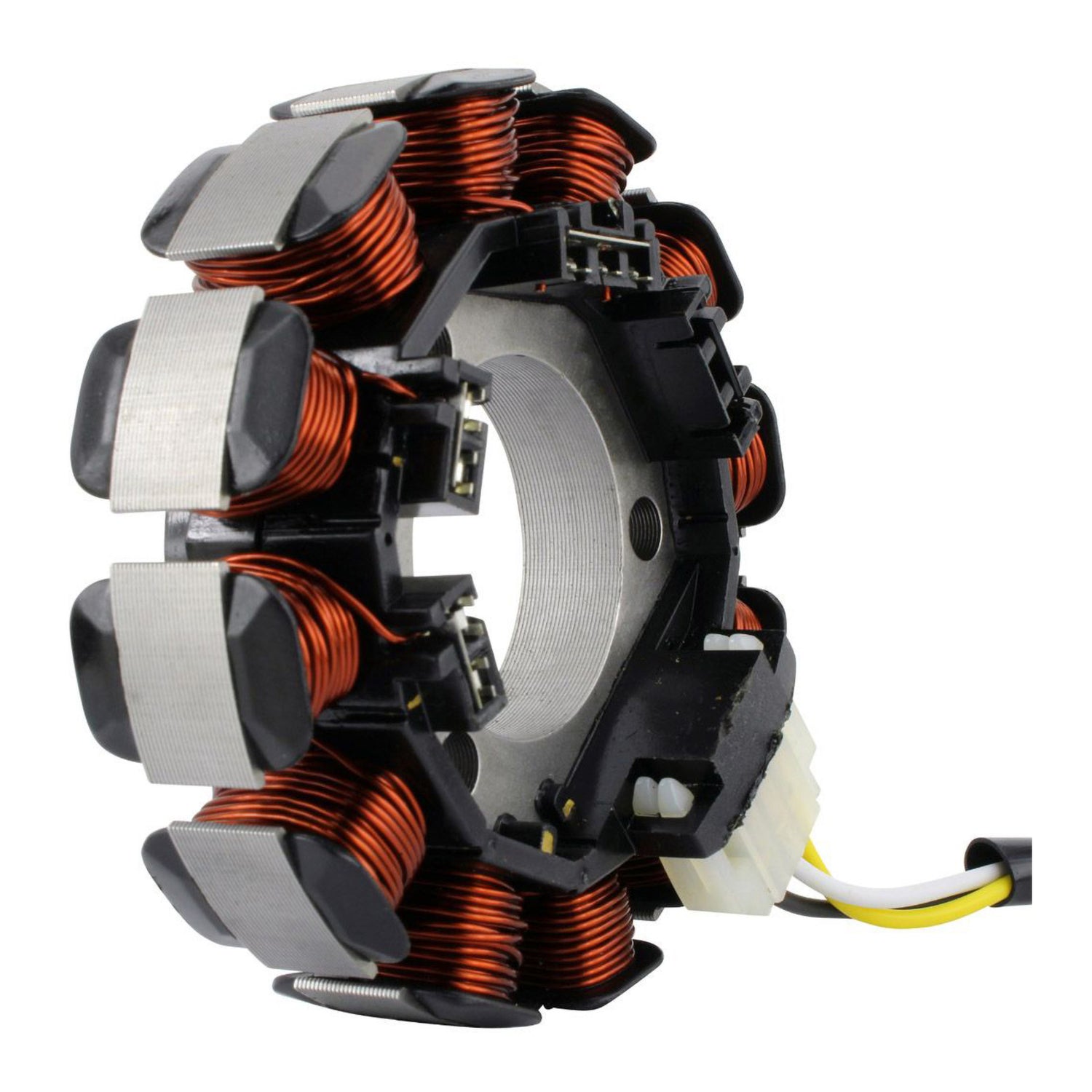

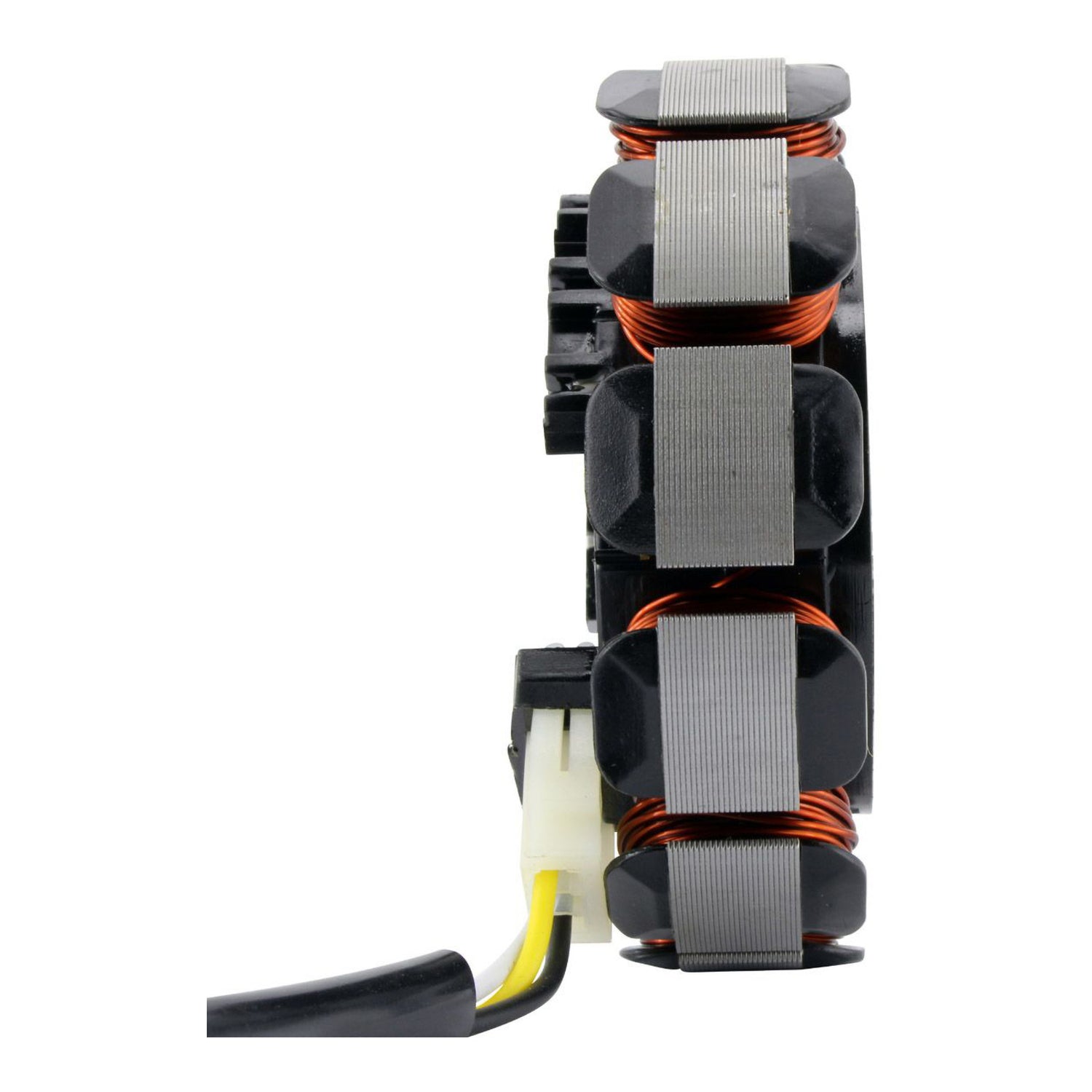

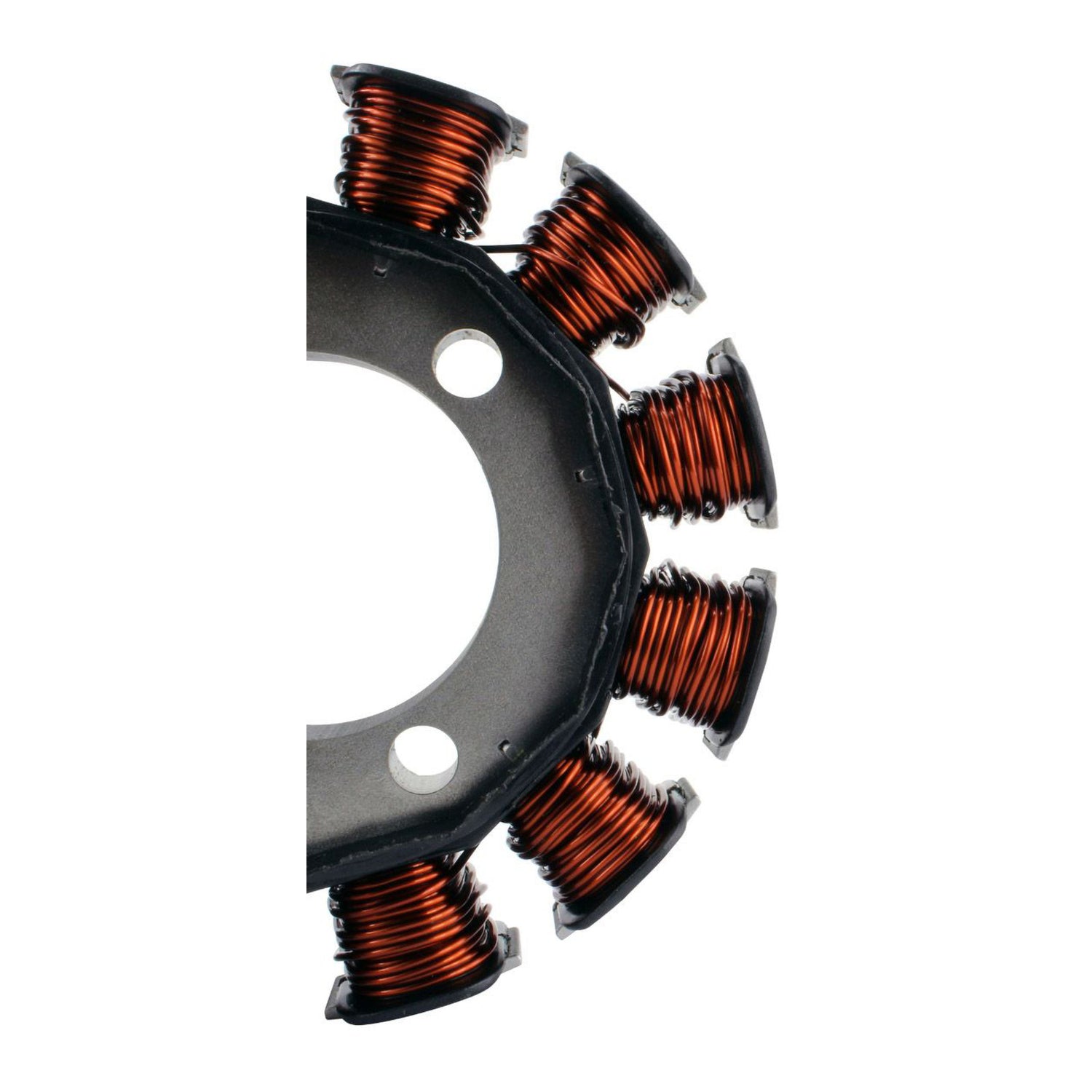

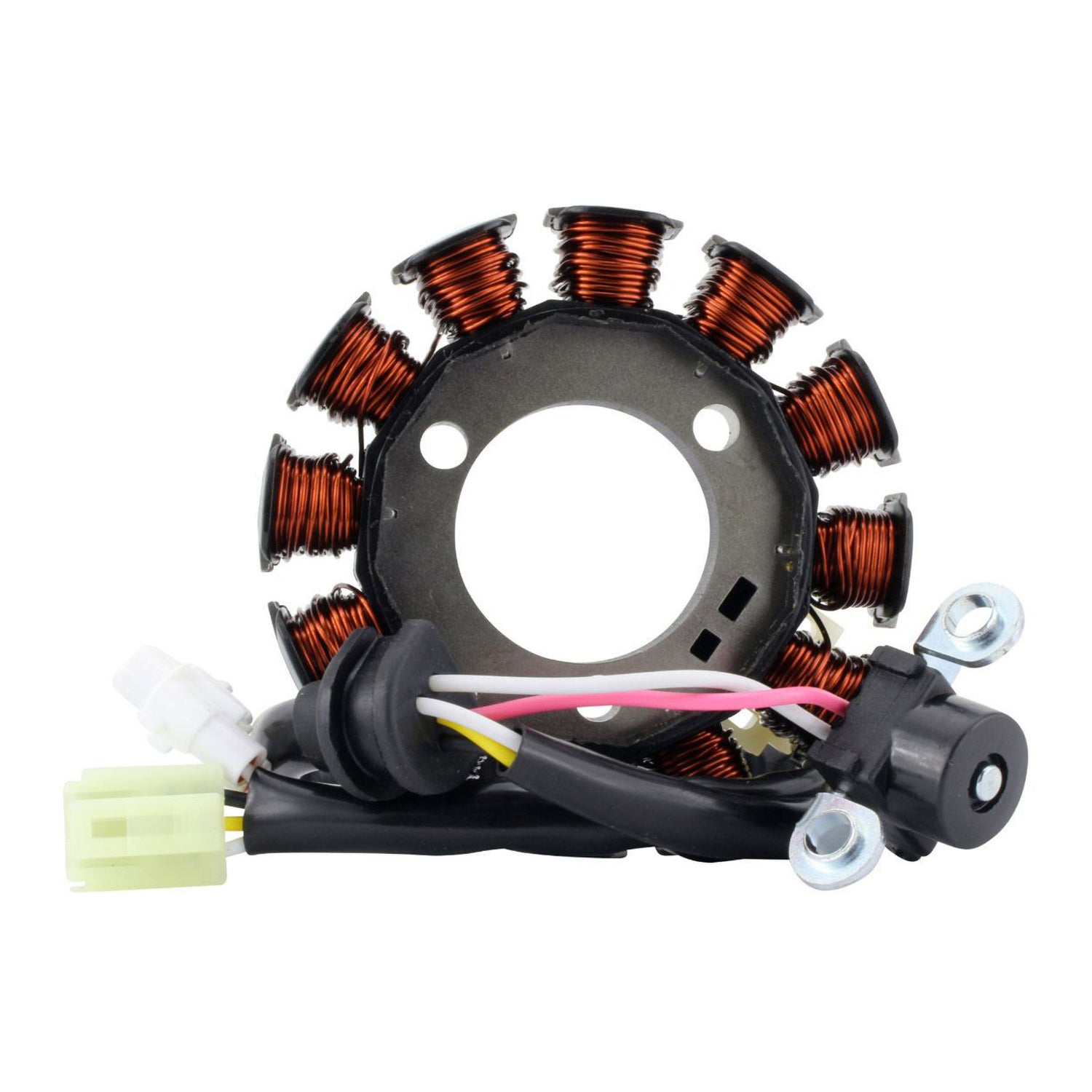

GENERATOR STATOR YAMAHA TTR 110 08-22 (RMS010-107173)
GENERATOR STATOR YAMAHA TTR 110 08-22 (RMS010-107173)
$139.99
Unit price
/
Unavailable
Couldn't load pickup availability
GENERATOR STATOR YAMAHA TTR 110 08-22 (RMS010-107173)
$139.99
Unit price
/
Unavailable
Description
Description

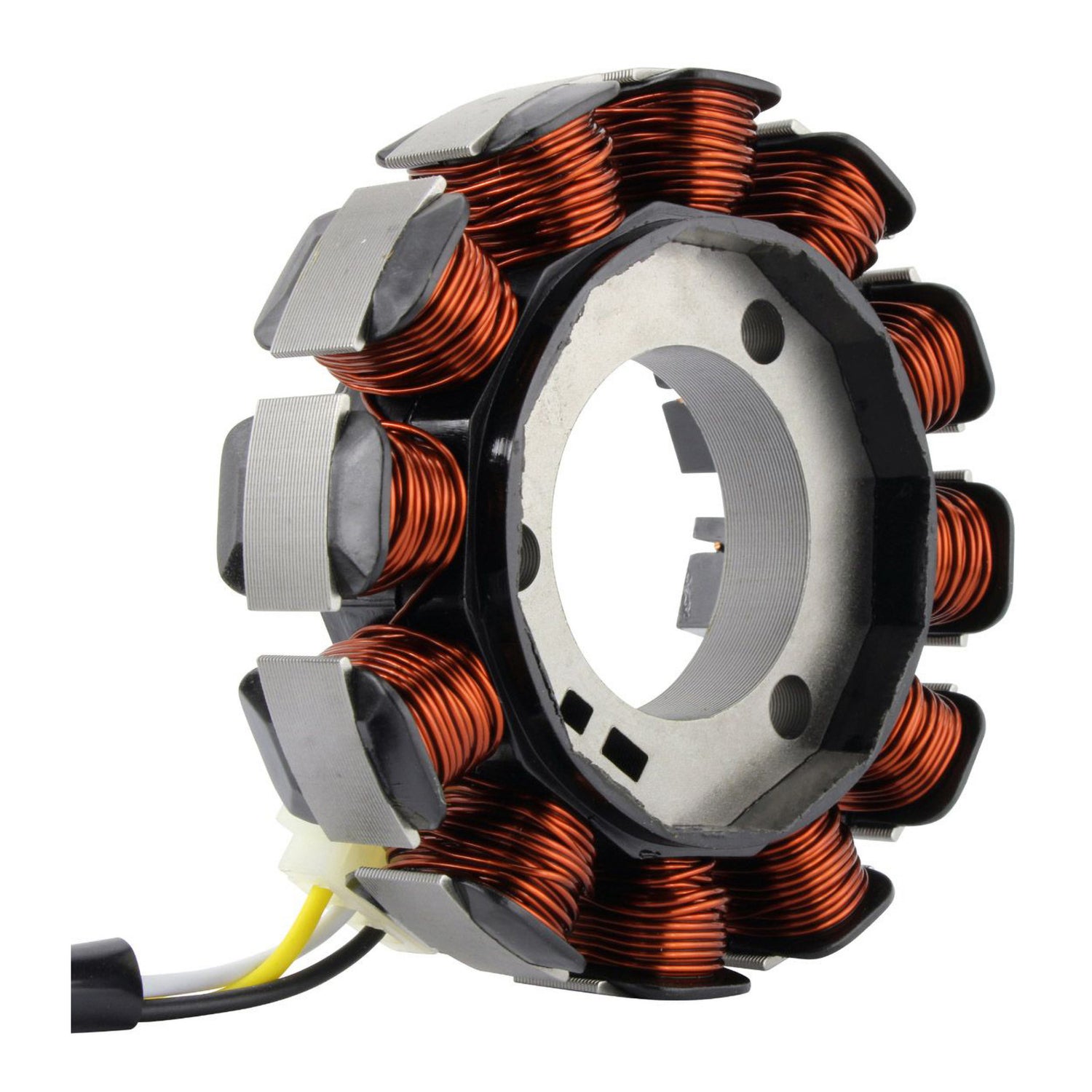

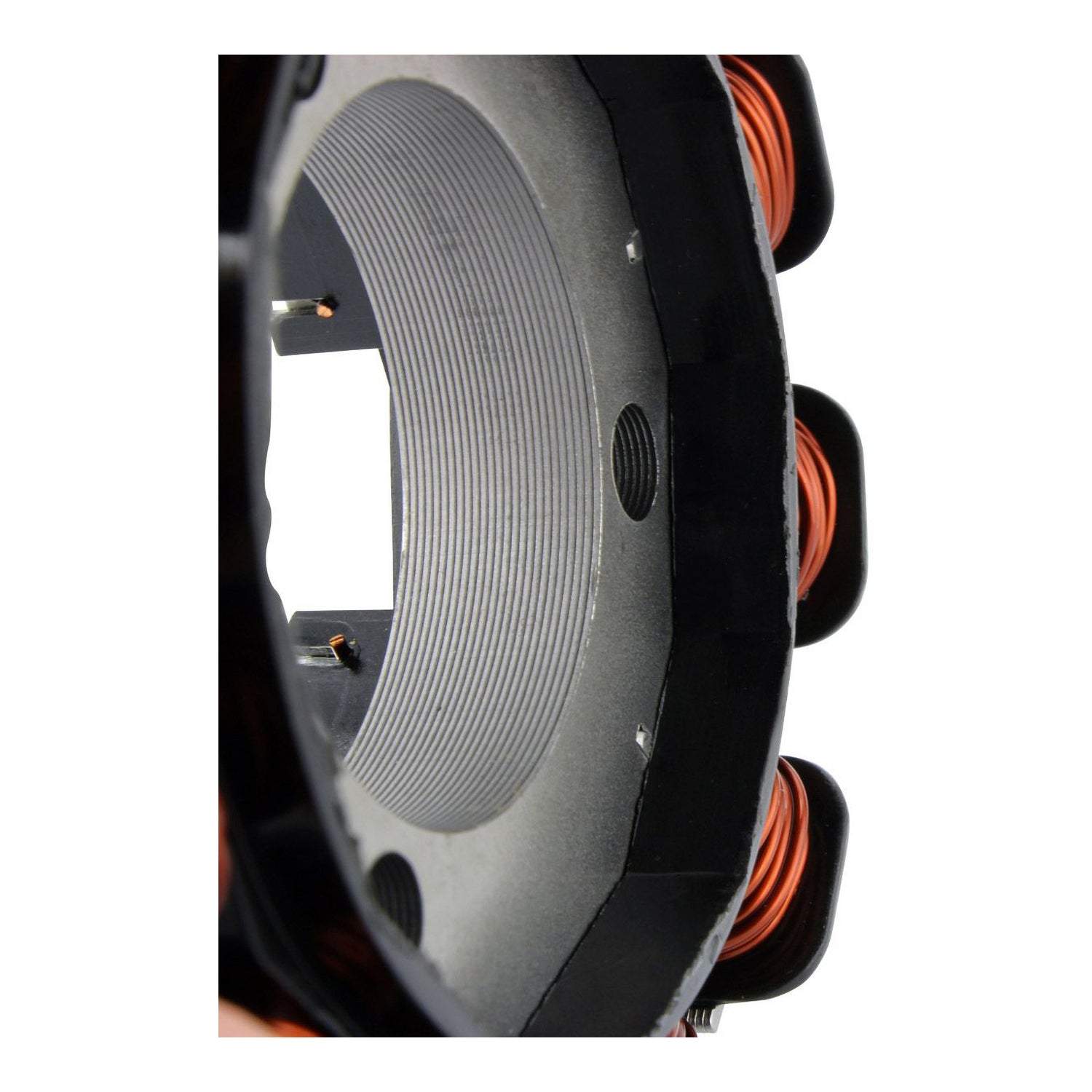

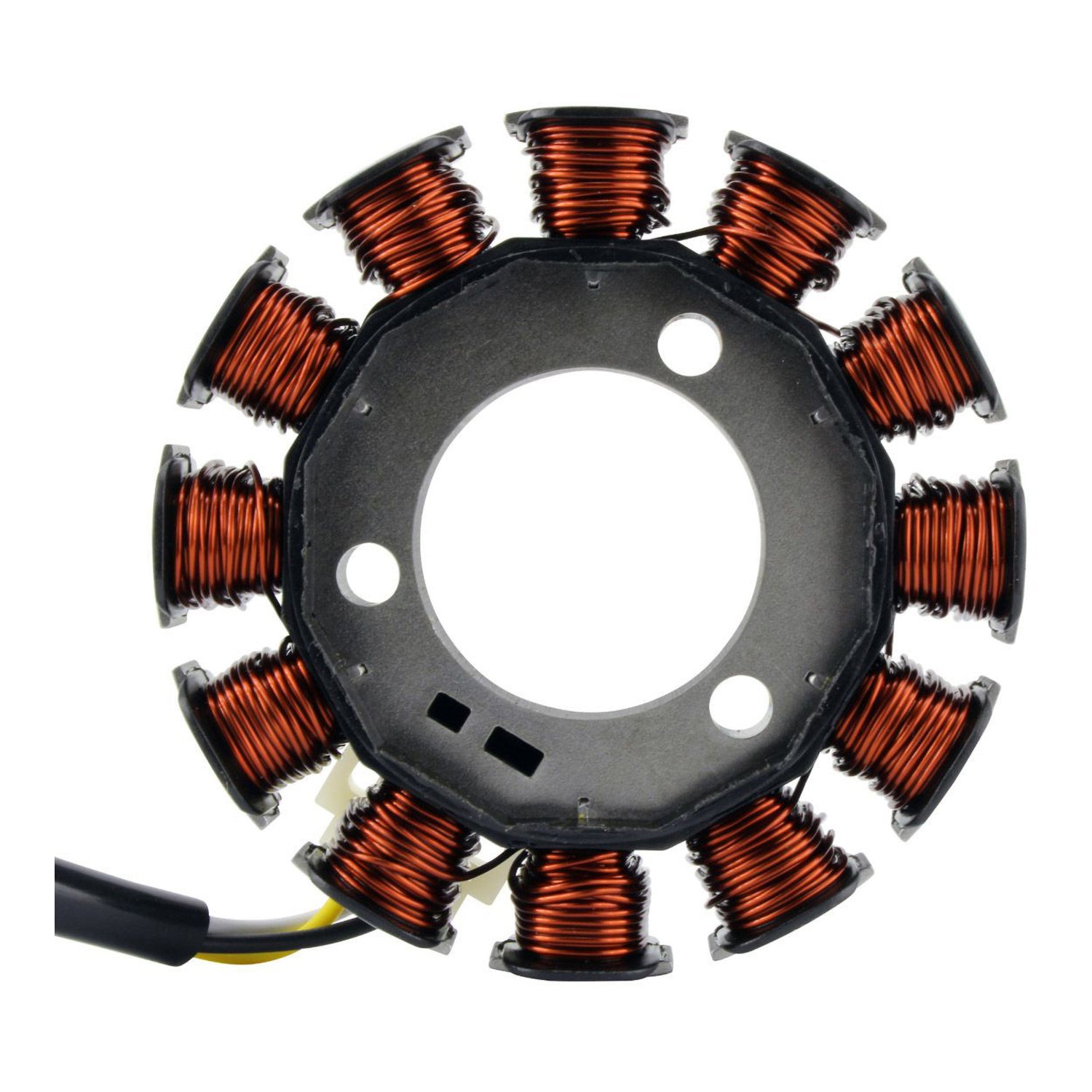

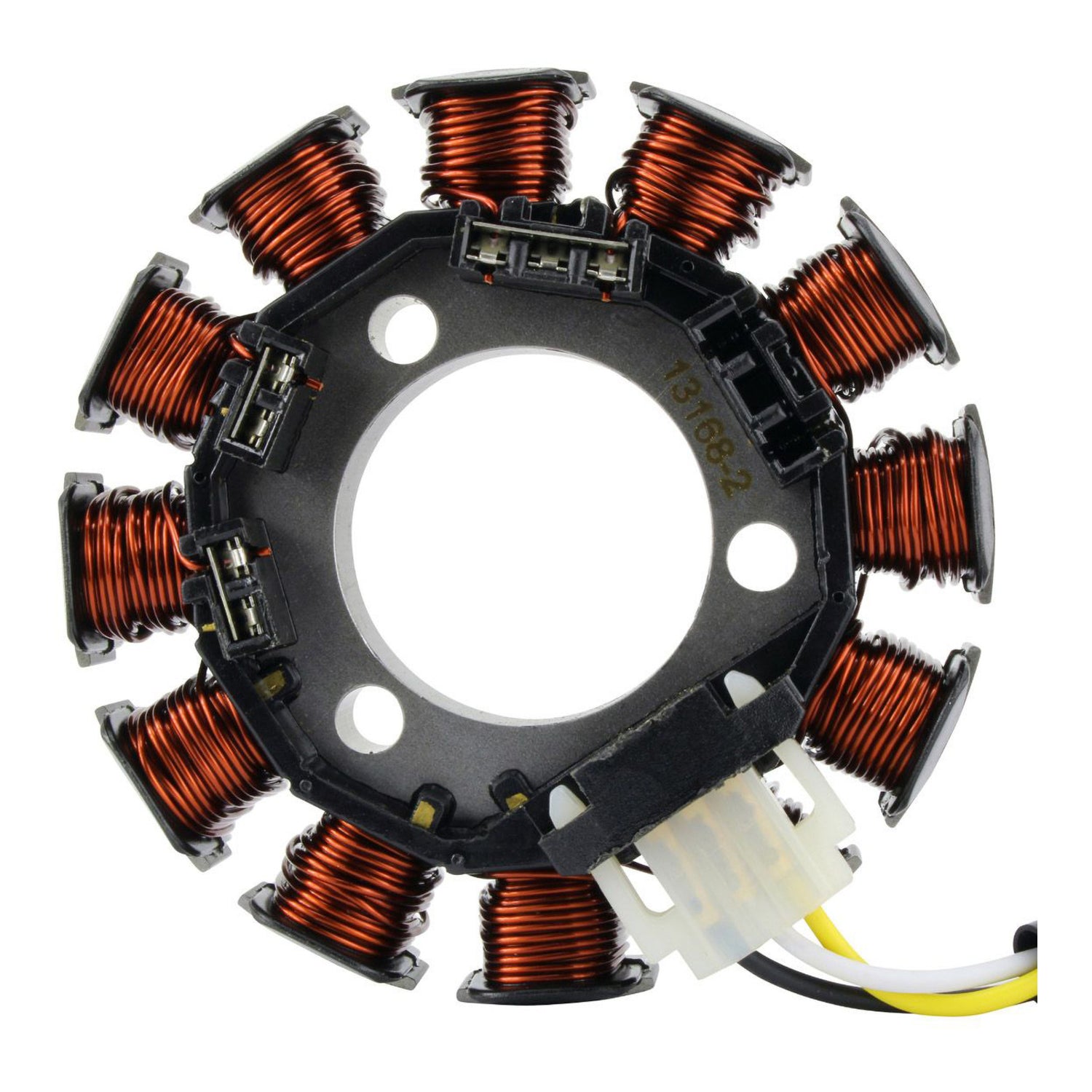

Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest-grade lamination materials
- Highest-grade copper windings, resistant to 200 degrees Celsius.

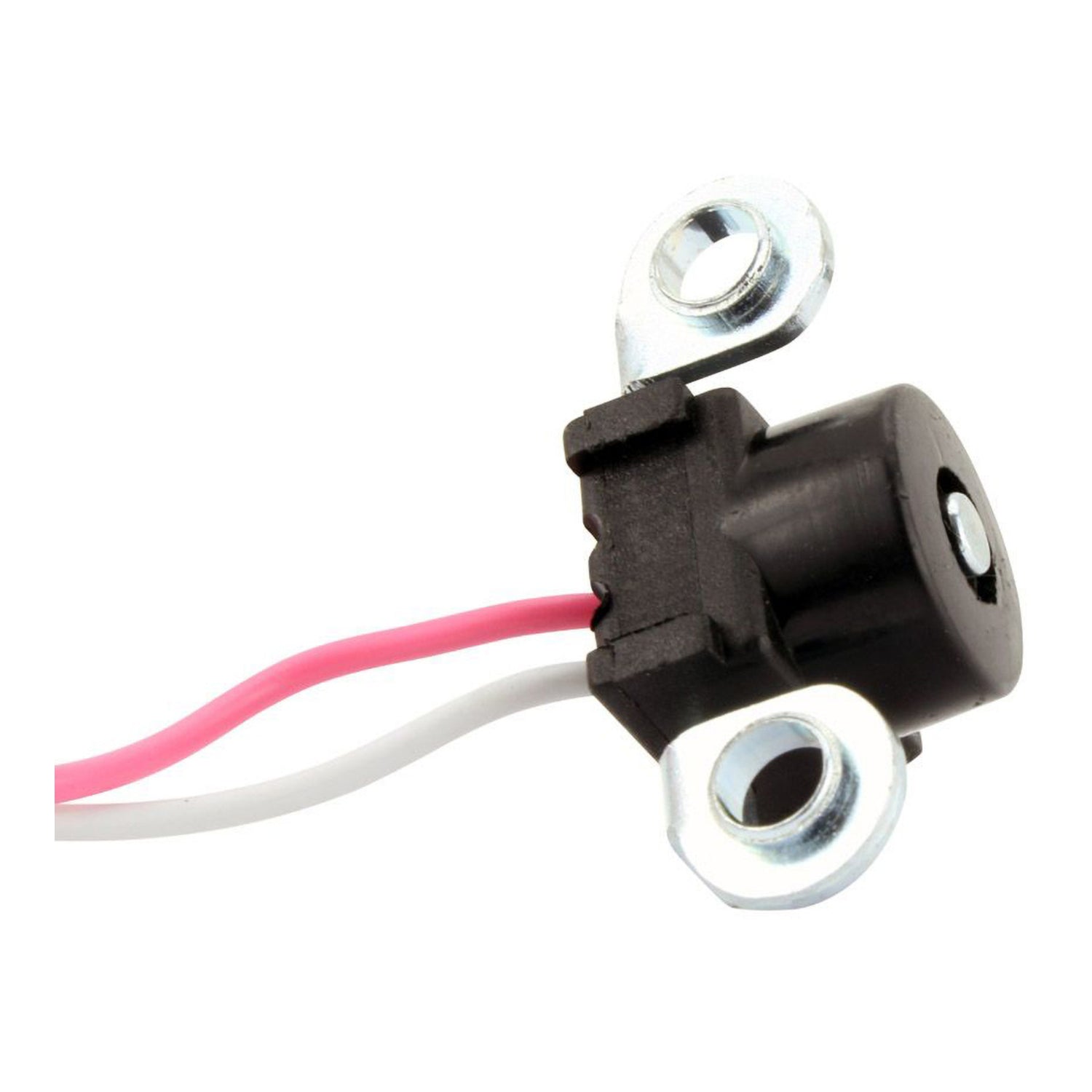

- Pick up pulsar coil included

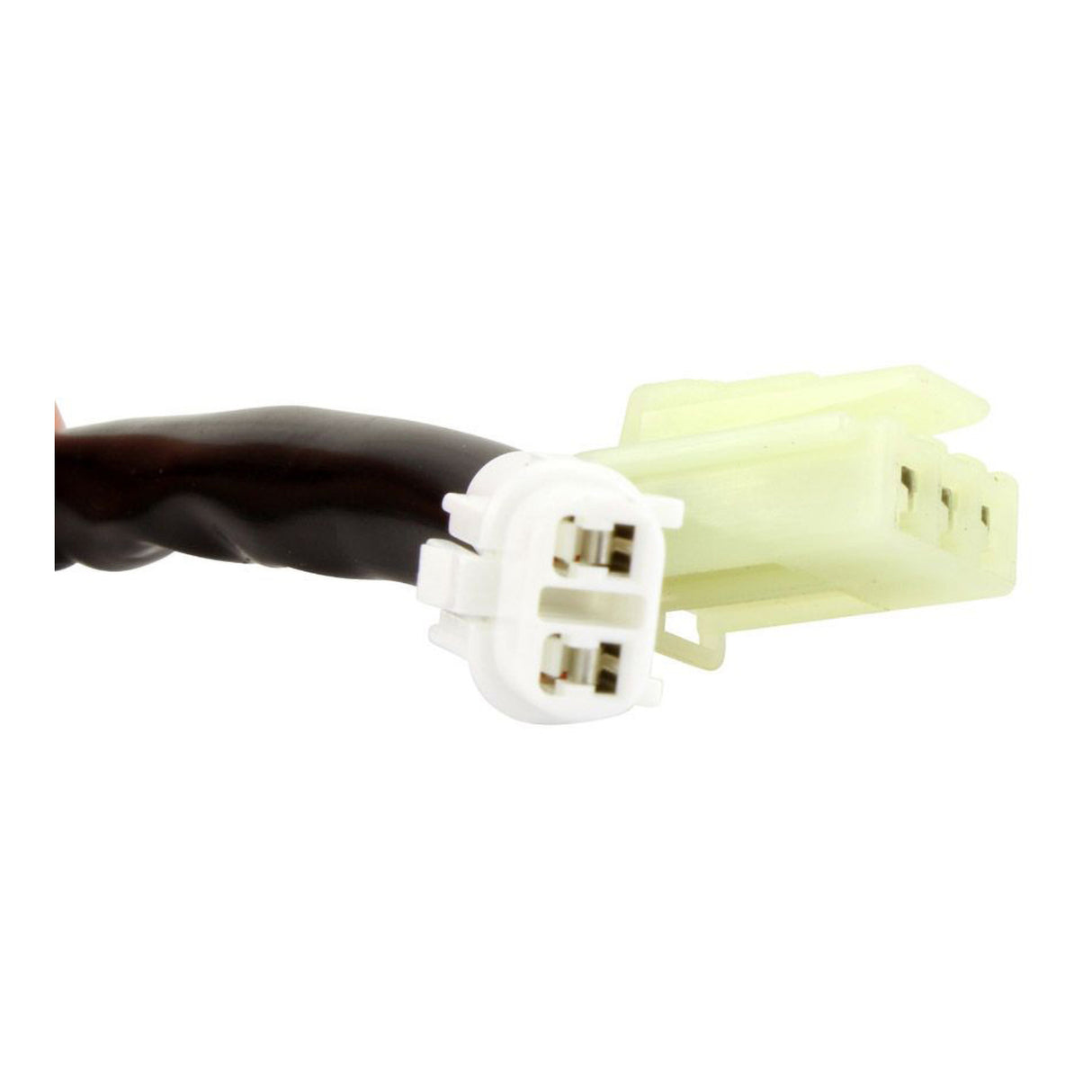

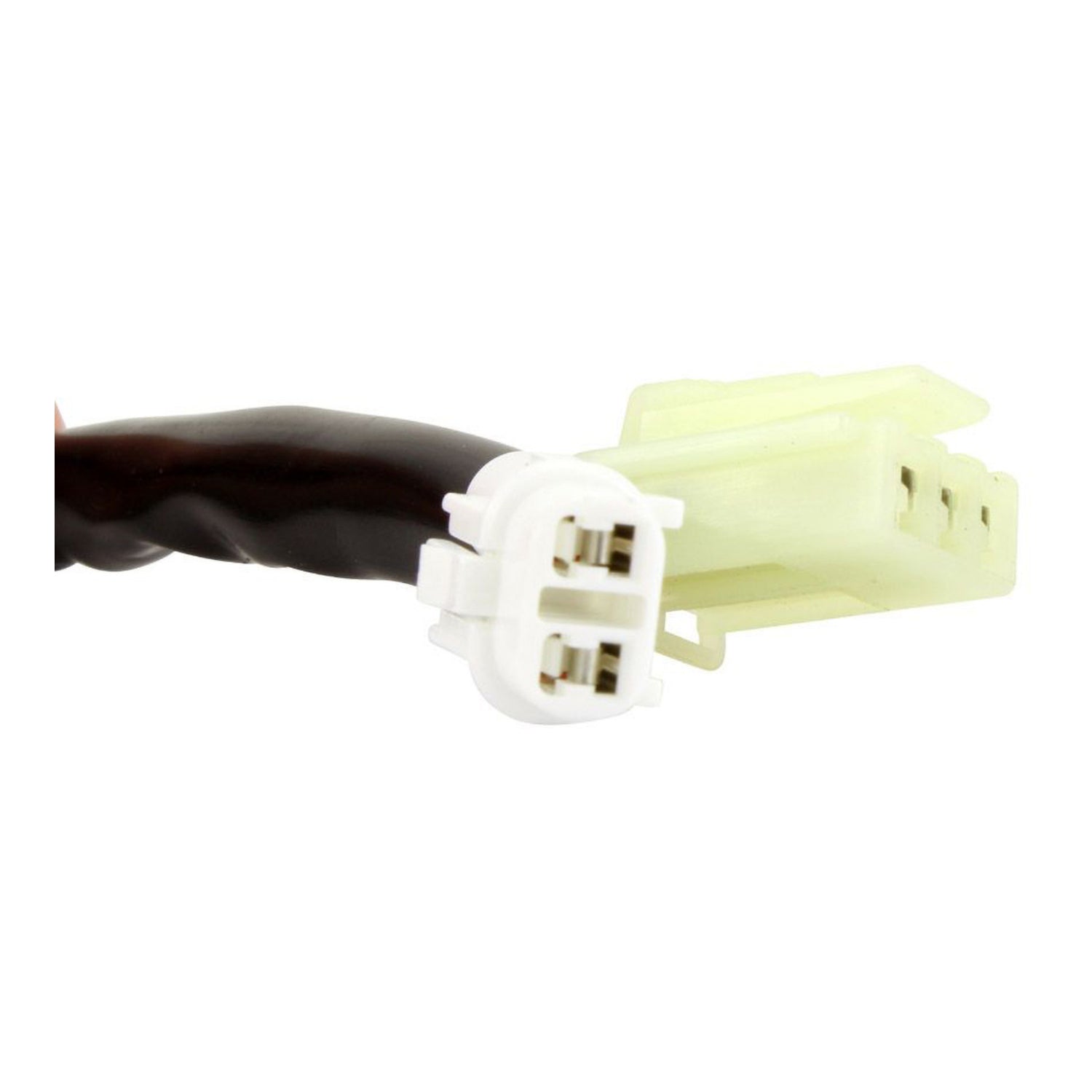

- Connector included

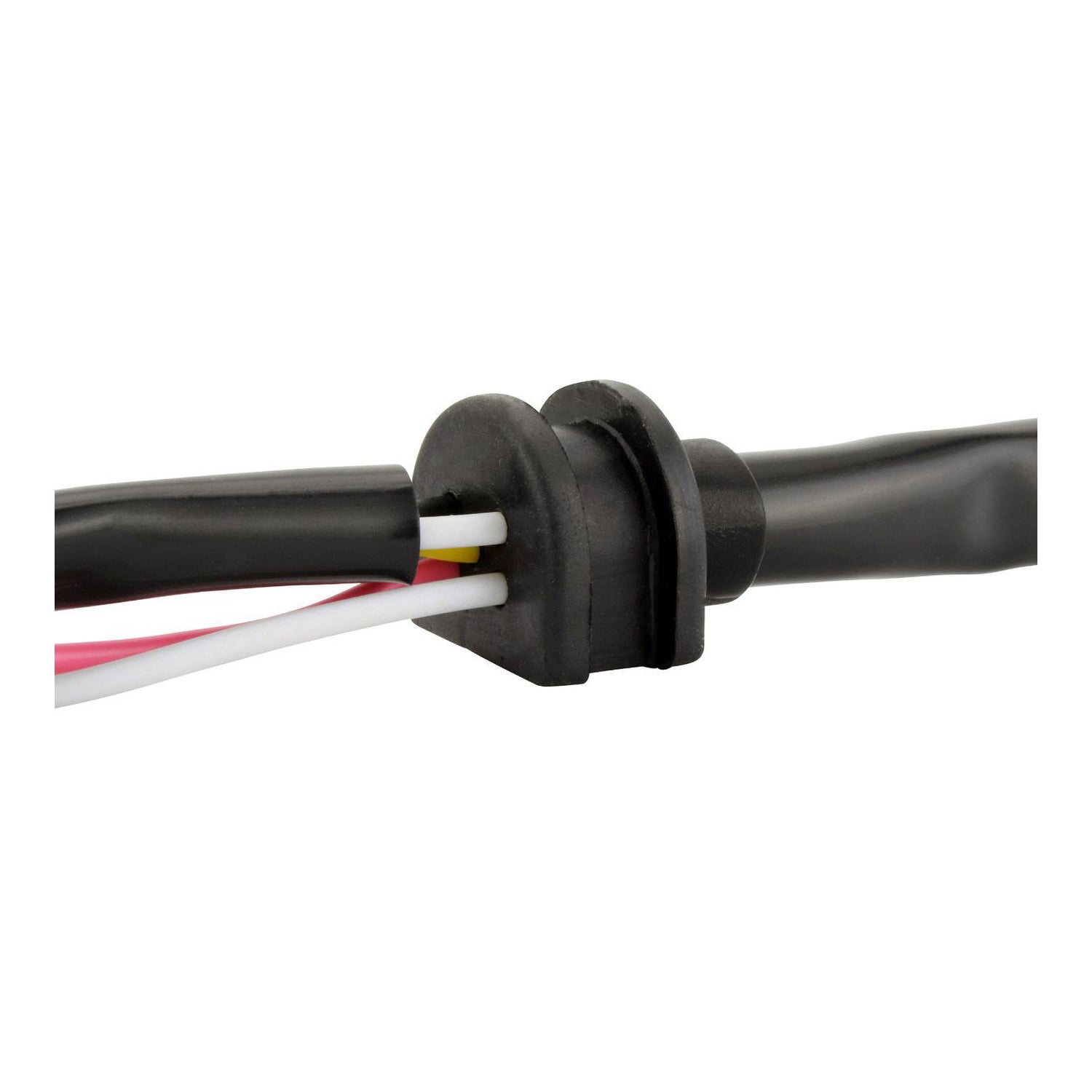

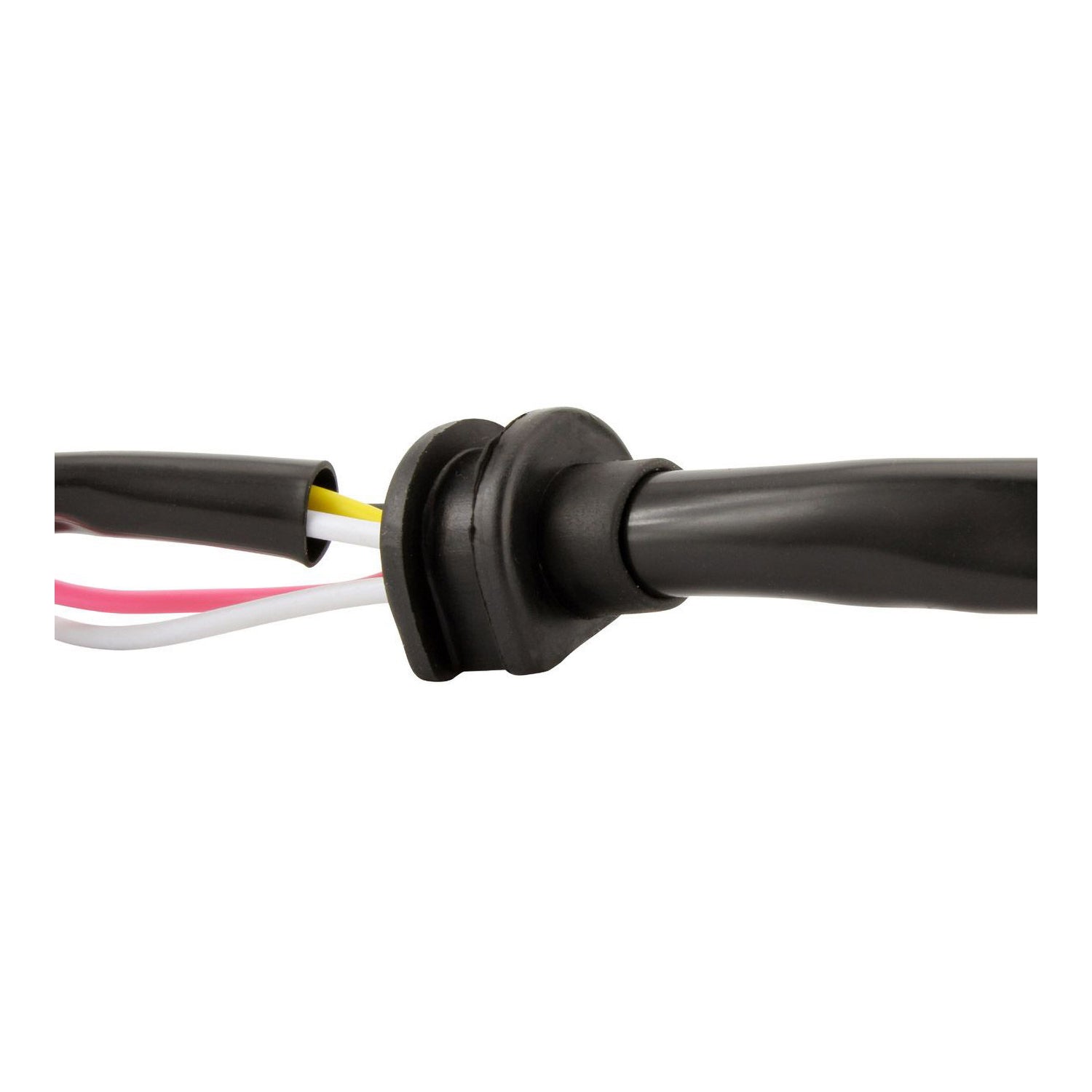

- Rubber grommet included
- All products shipped are tested
Specifications:
Dimensions:
Other specifications:
- Number of wires: 5
- Number of plugs: 2
- Number of pins: 5
- Number of poles: 12
Wire-to-wire resistance:
- All 1p winding: Black to White = 0.9 ohms +-20%
- Alternator #1: Yellow to Black = 0.6 ohms +-20%
- Alternator #2: Yellow to White = 0.8 ohms +-20%
- Pickup: Pink to White = 280 ohms +-20%
