RMSTATOR | SKU: RMS010107086

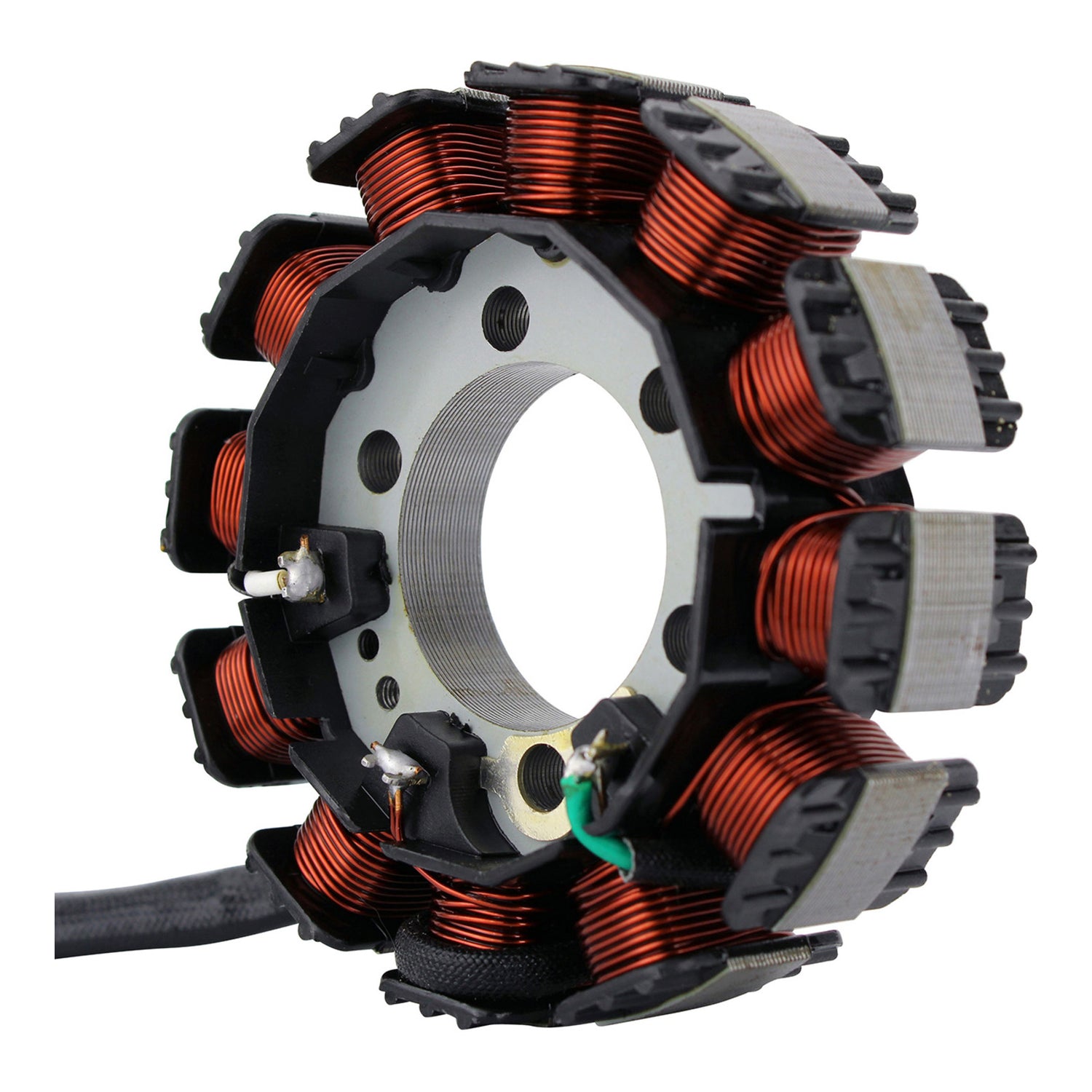

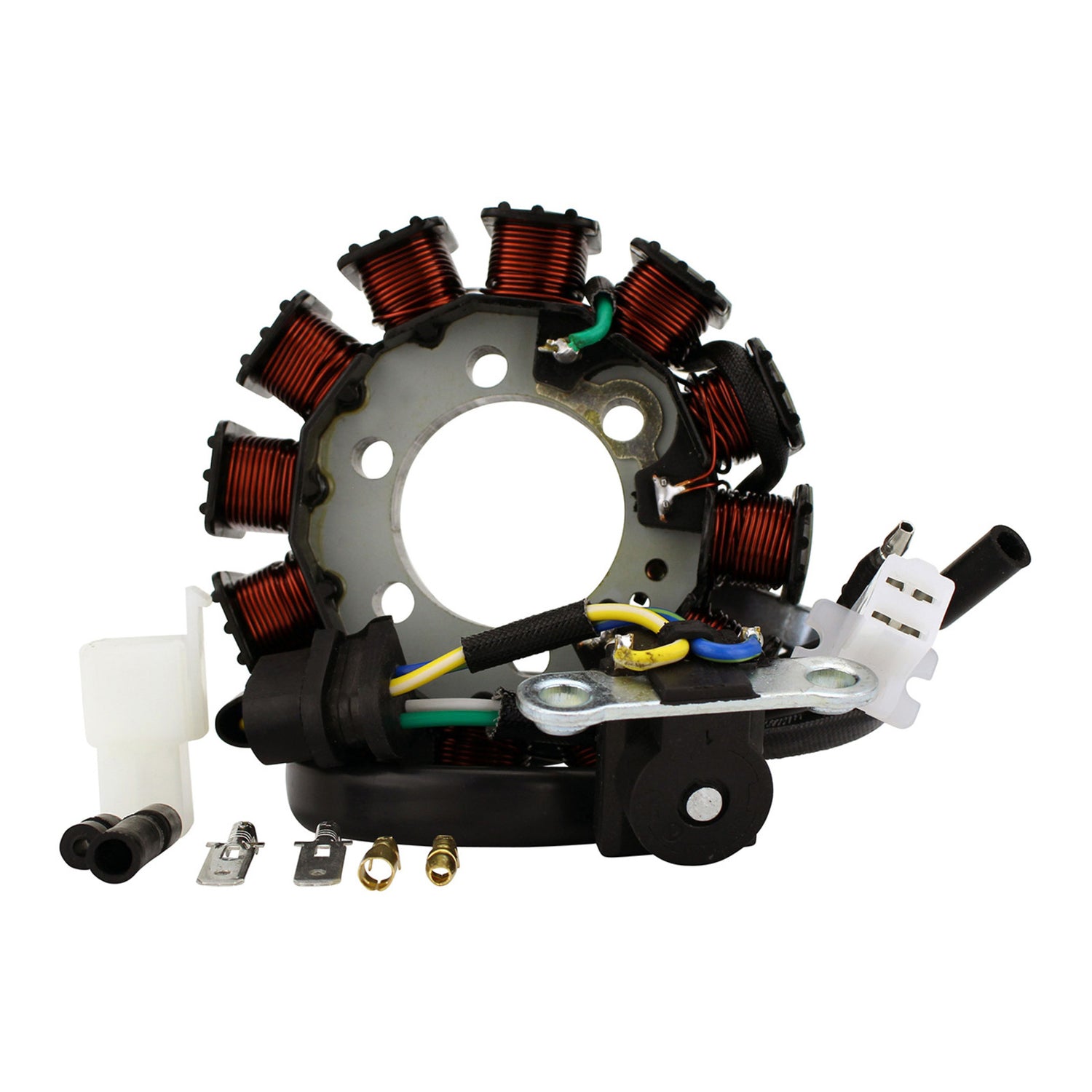

GENERATOR STATOR HON CRF110F 19-21 (RMS010-107086)

Name: GENERATOR STATOR HON CRF110F 19-21 (RMS010-107086)
Brand: RMSTATOR
SKU: RMS010107086
Price: 269.99 AUD
Availability: InStock

$269.99

Description

Brand new aftermarket stator

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
Highest-grade lamination materials
Highest-grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included
Connector included
Rubber grommet included
All products shipped are tested

Specifications:

Dimensions:

Interior diameter: 35 mm

Exterior diameter: 92 mm

Thickness: 10 mm

Length of wires stator to grommet: 100 mm

Length of wires grommet to plug: 380 mm

Length of pickup coil's wire to grommet: 20 mm

Other specifications:

Number of wires: 4
Number of plugs : 3
Number of pins: 4
Number of poles: 12

Wire-to-wire resistance:

Alternator: = White to Green 0.8 ohms +-20%
Pickup: = White/Yellow to Blue/Yellow 194 ohms +-20
