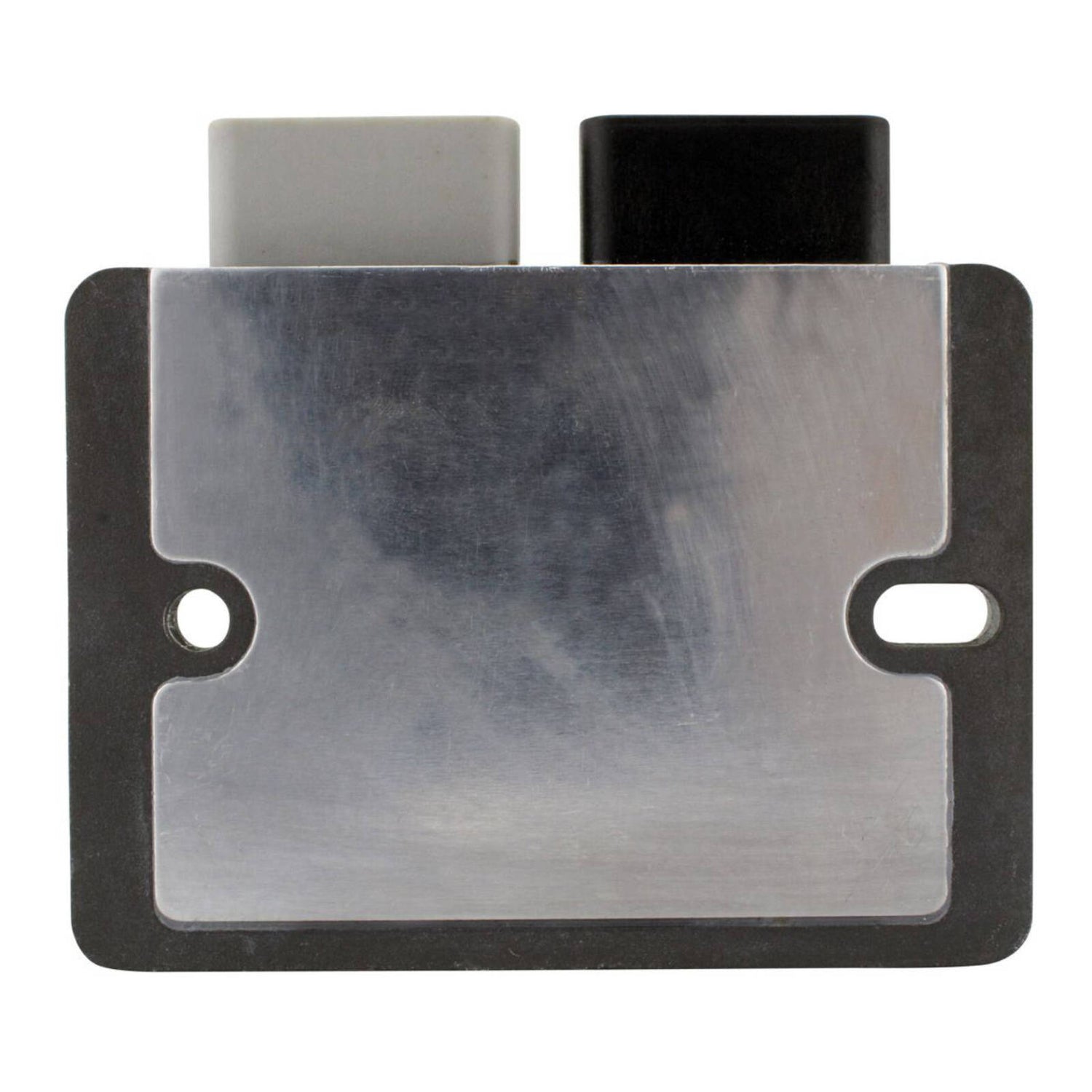

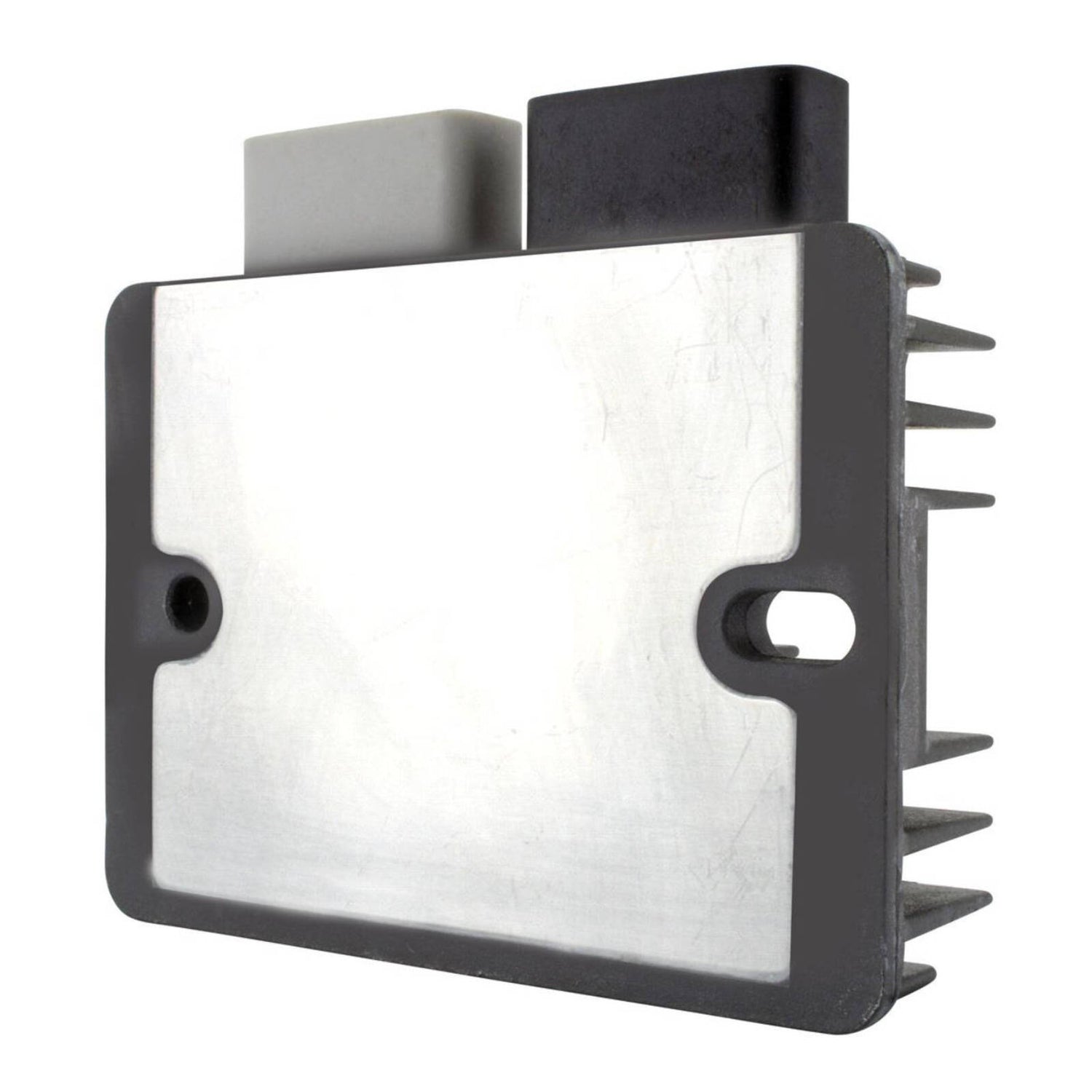

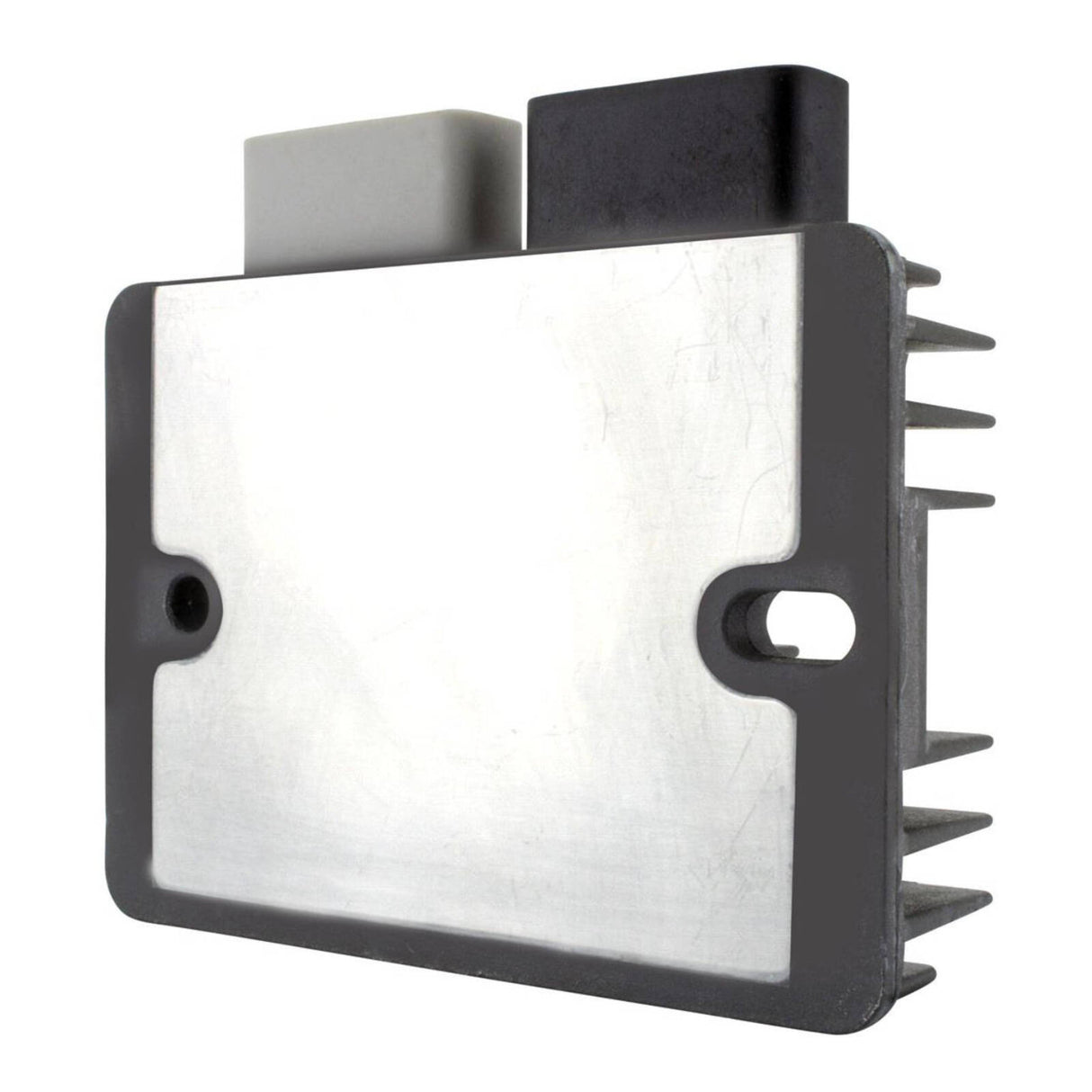

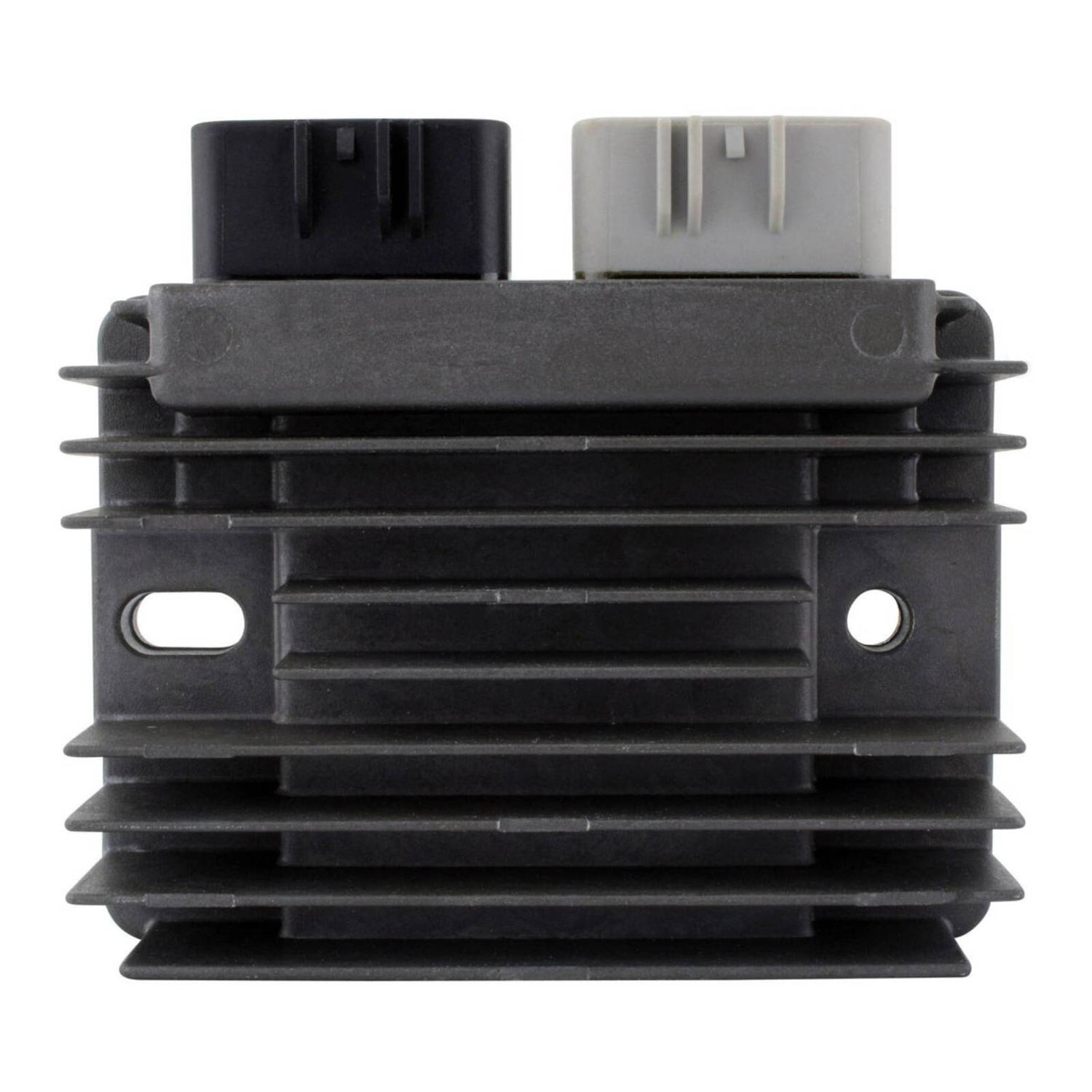

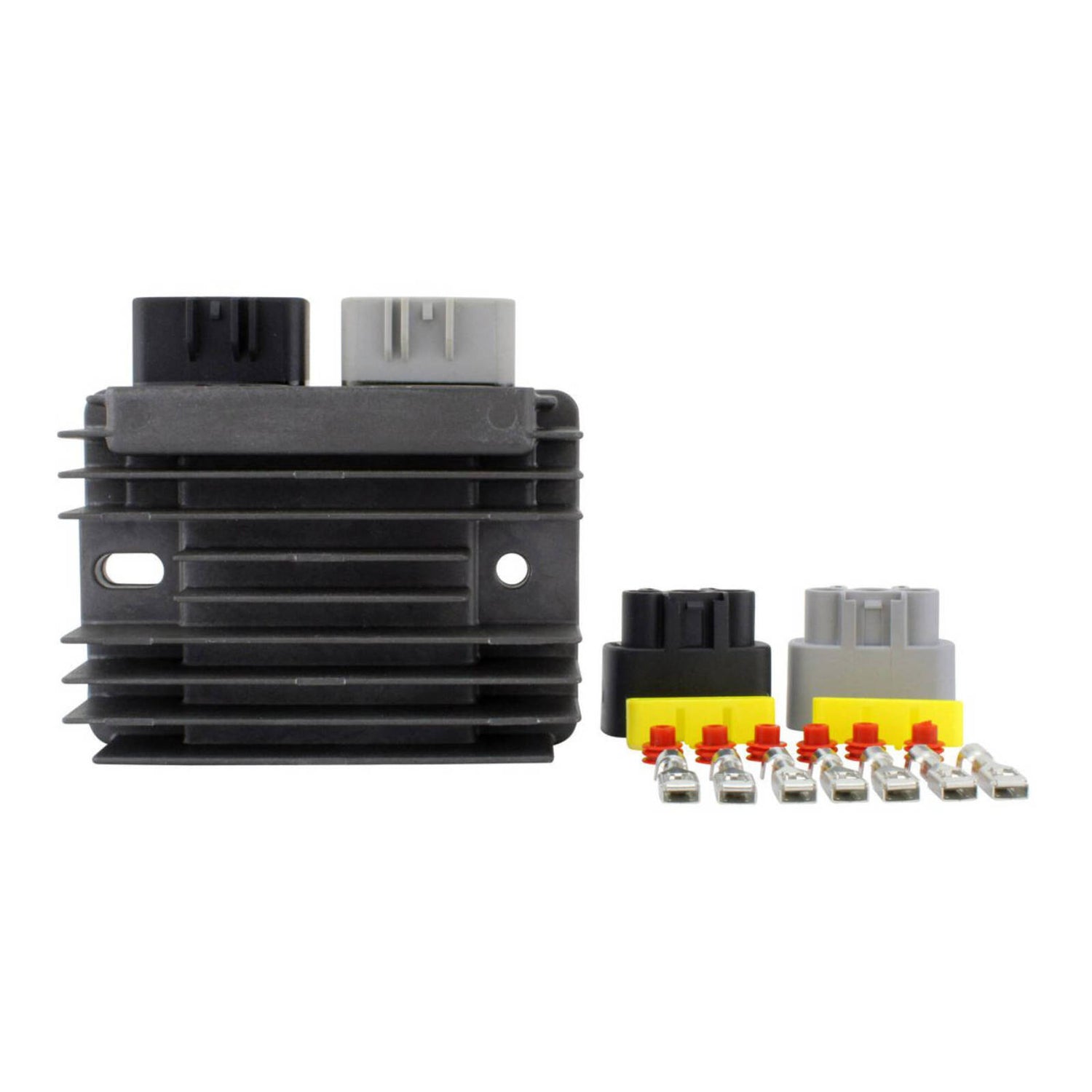

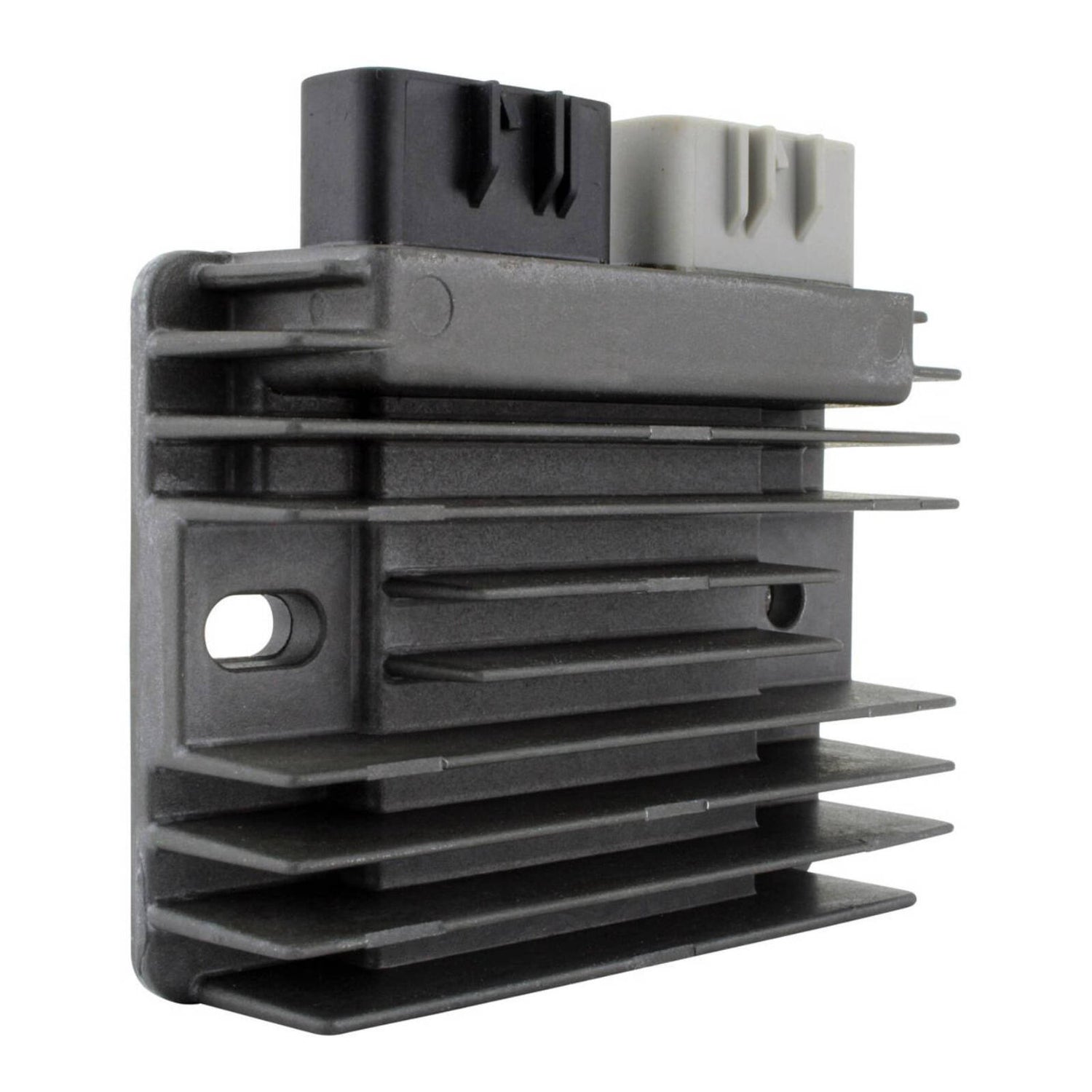

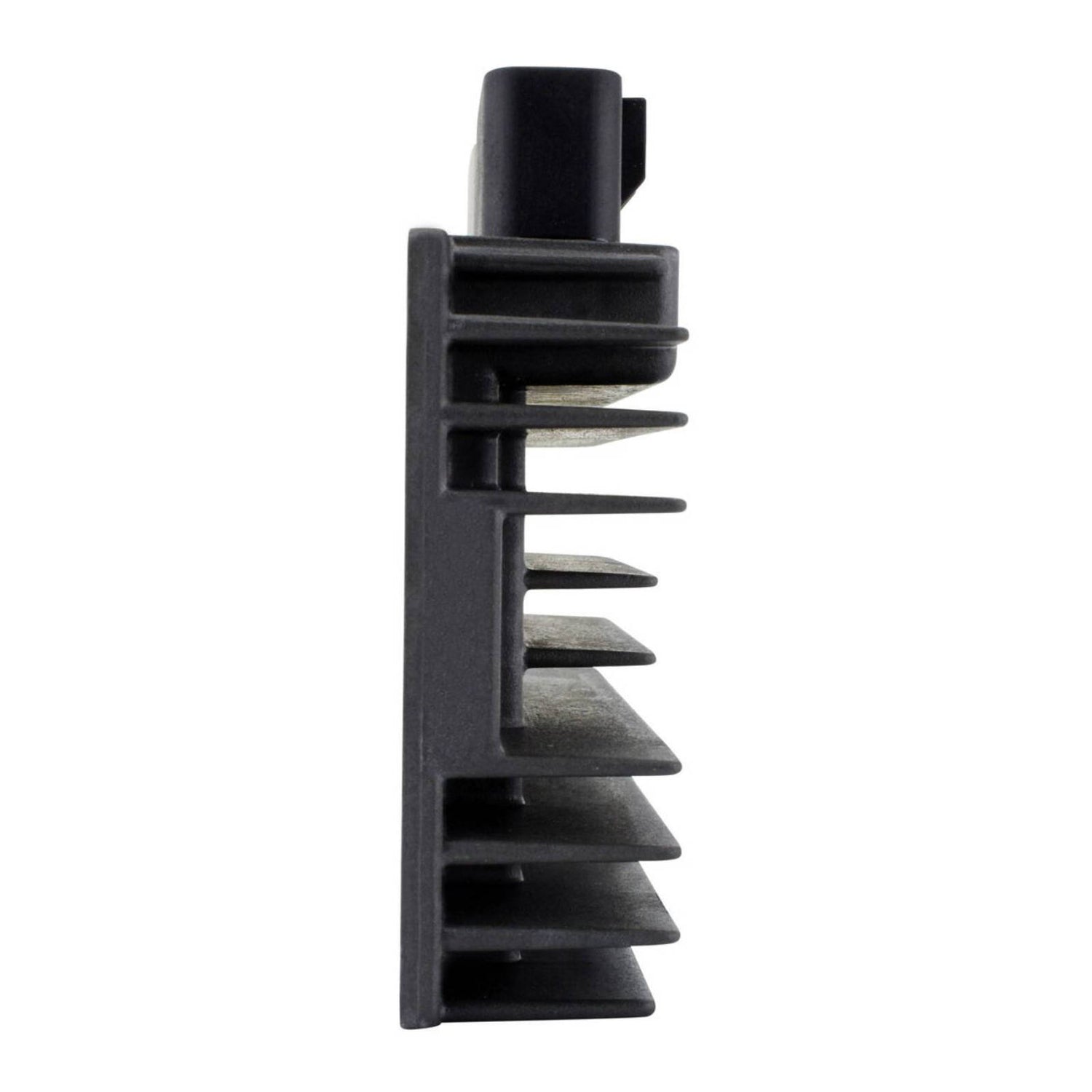

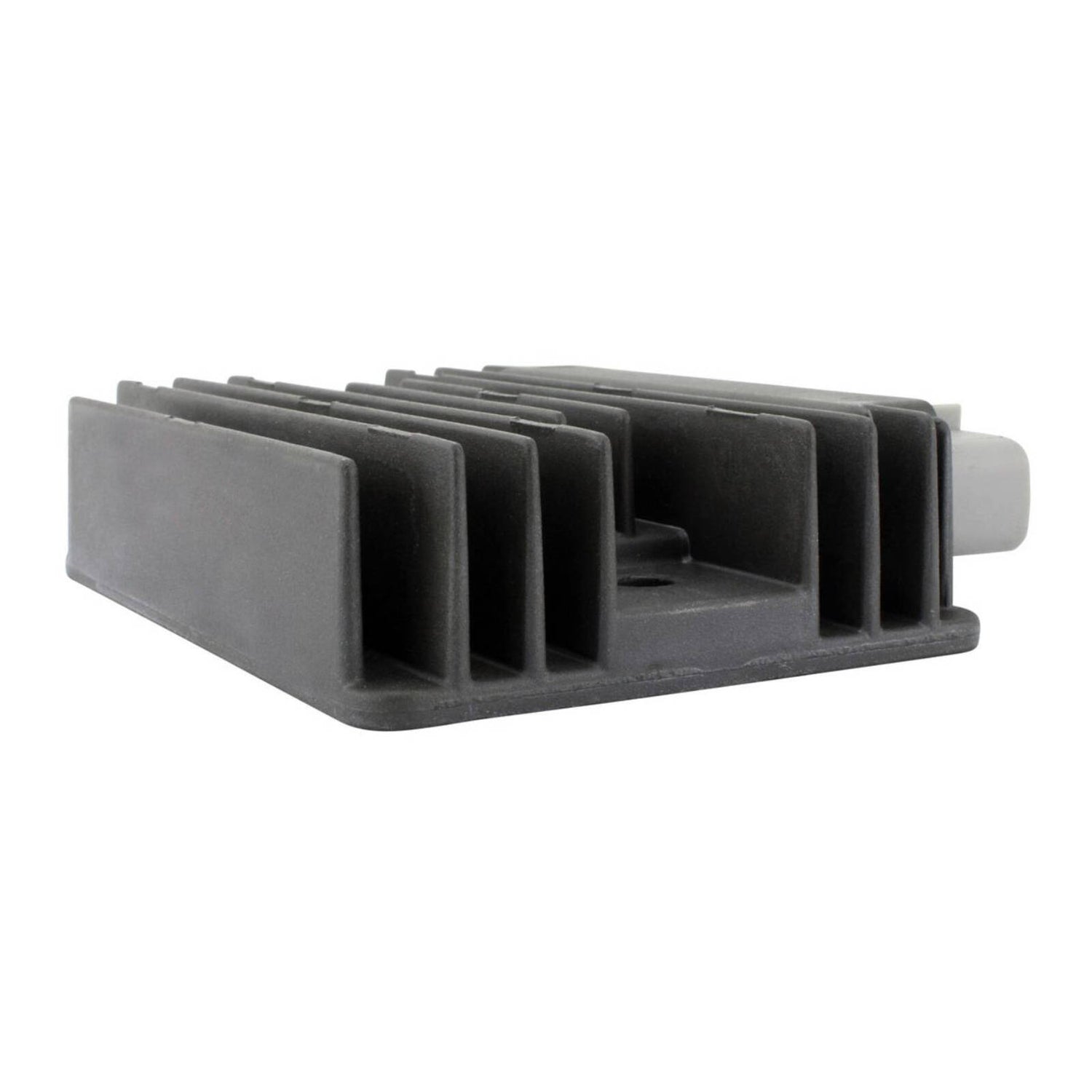

Voltage Regulator Rectifier - Kawasaki KAF400

Brand new aftermarket Voltage Regulator Rectifier.

• Direct replacement to the original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required.
• Higher-grade electrical components.
• The quality exceeds the OEM equipment.
• All products shipped are tested.

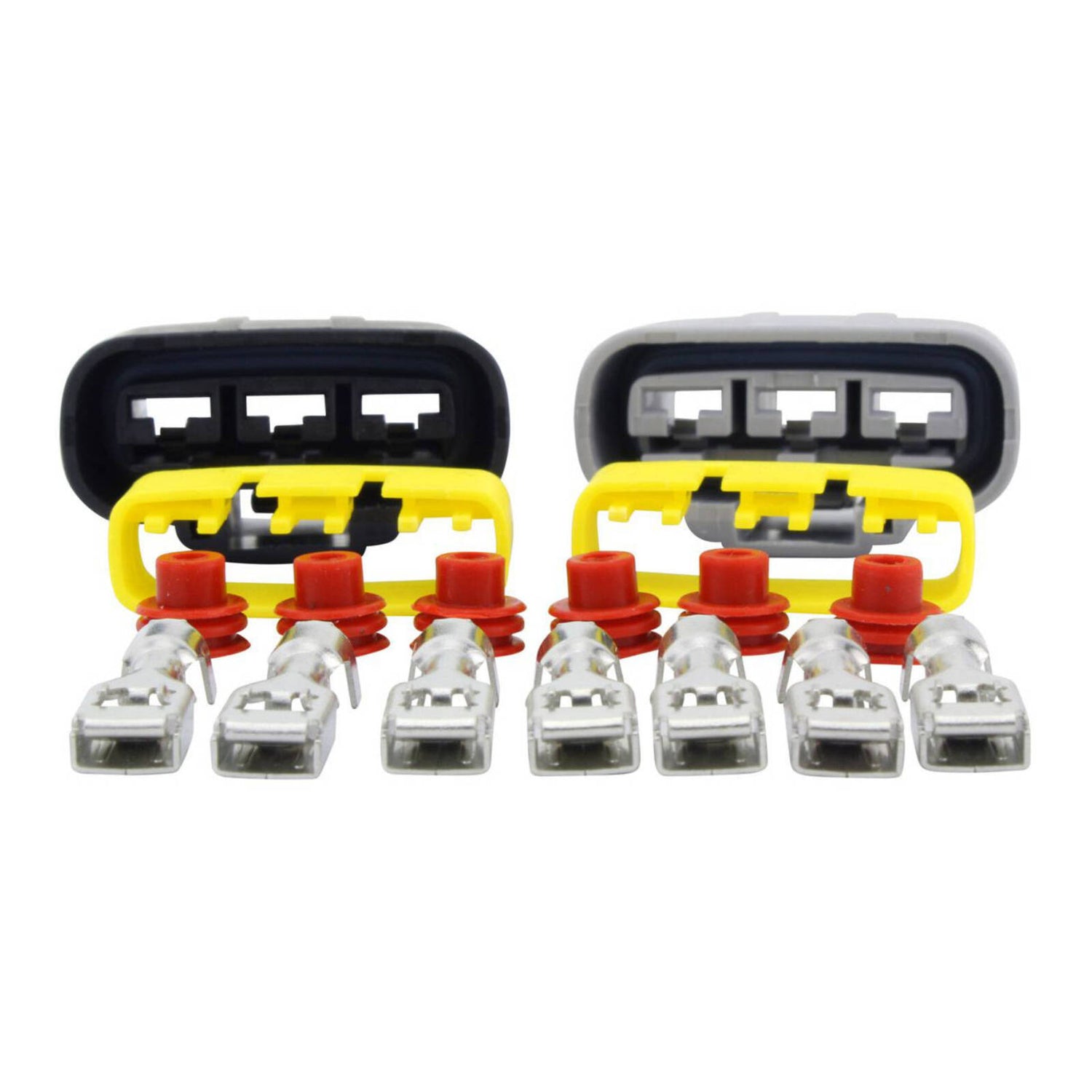

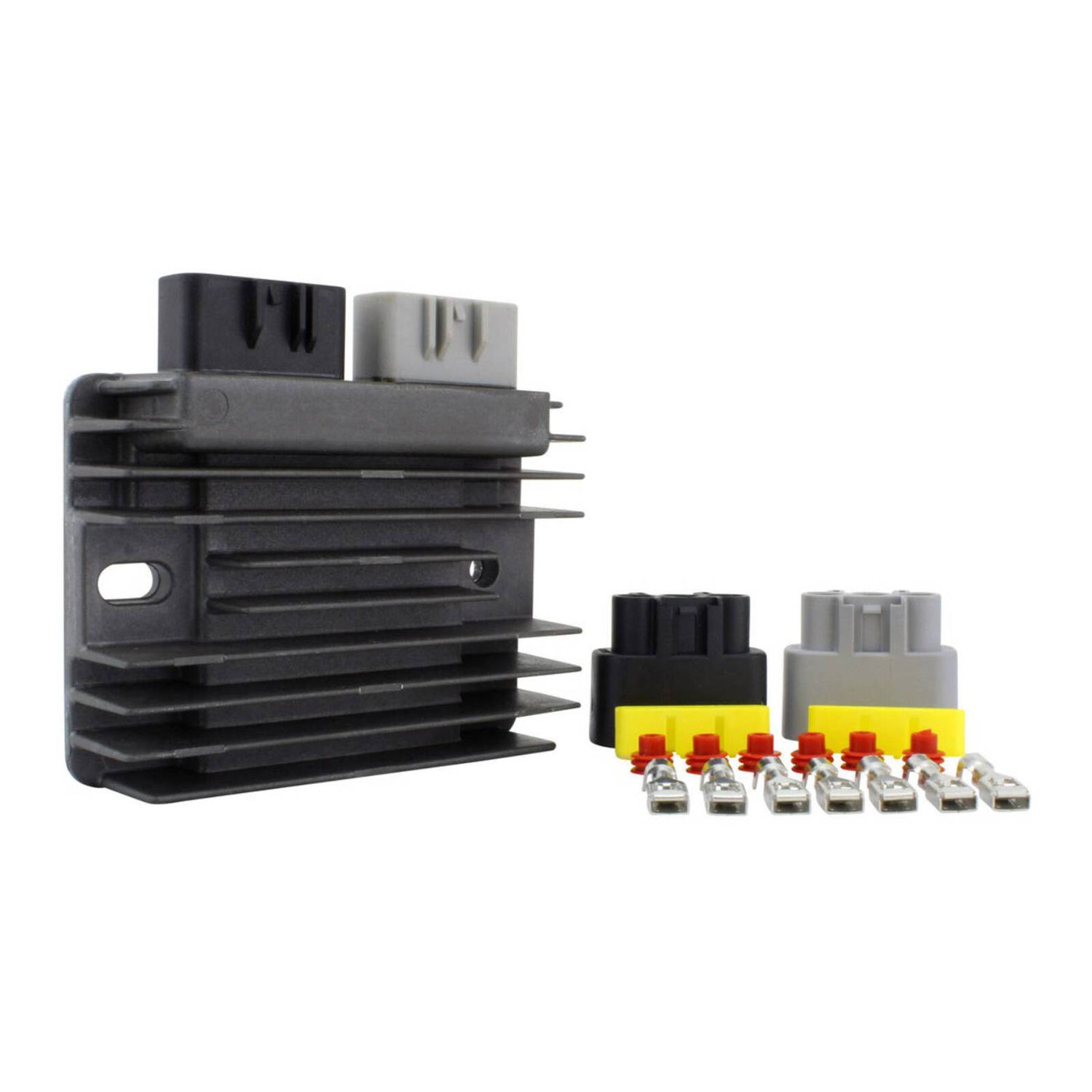

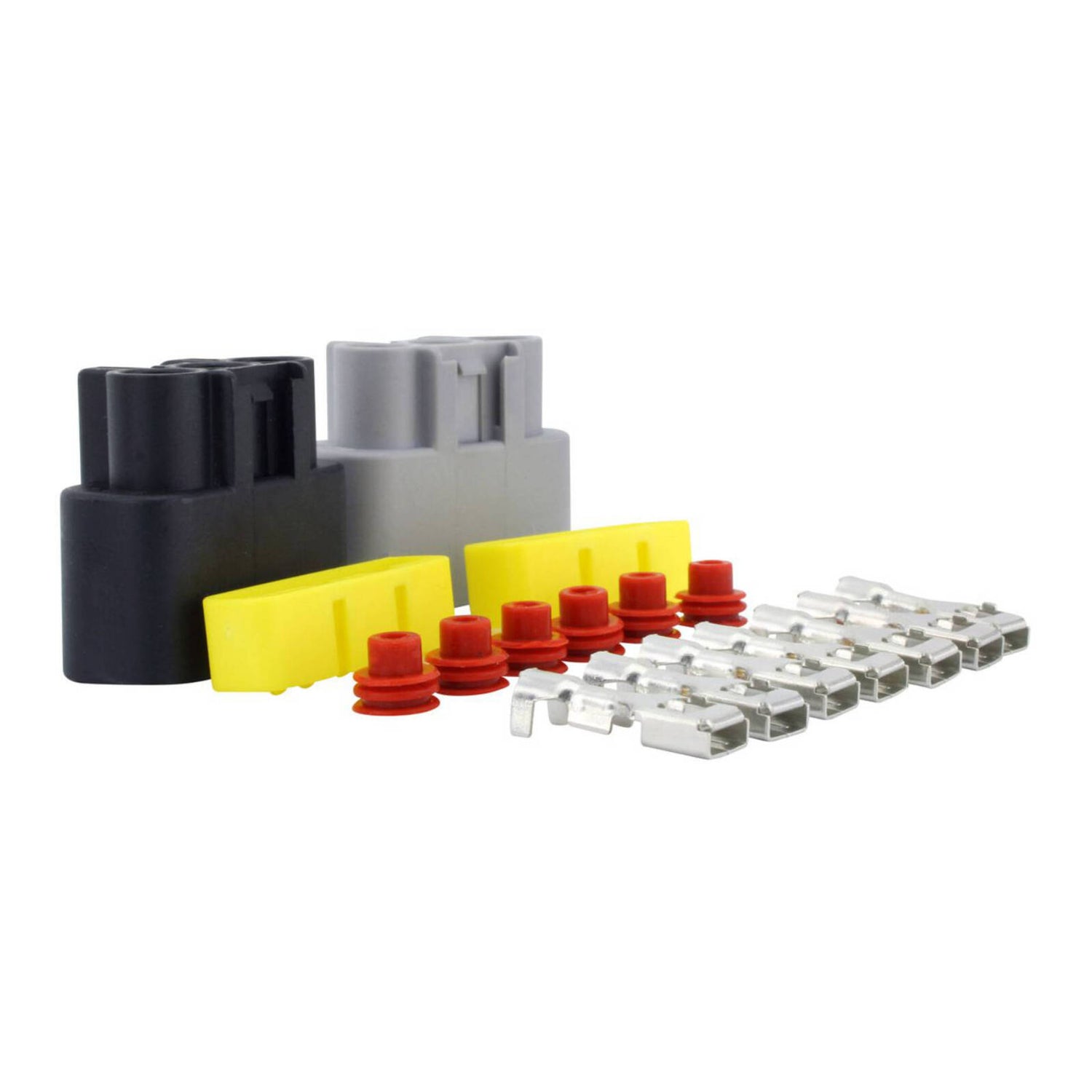

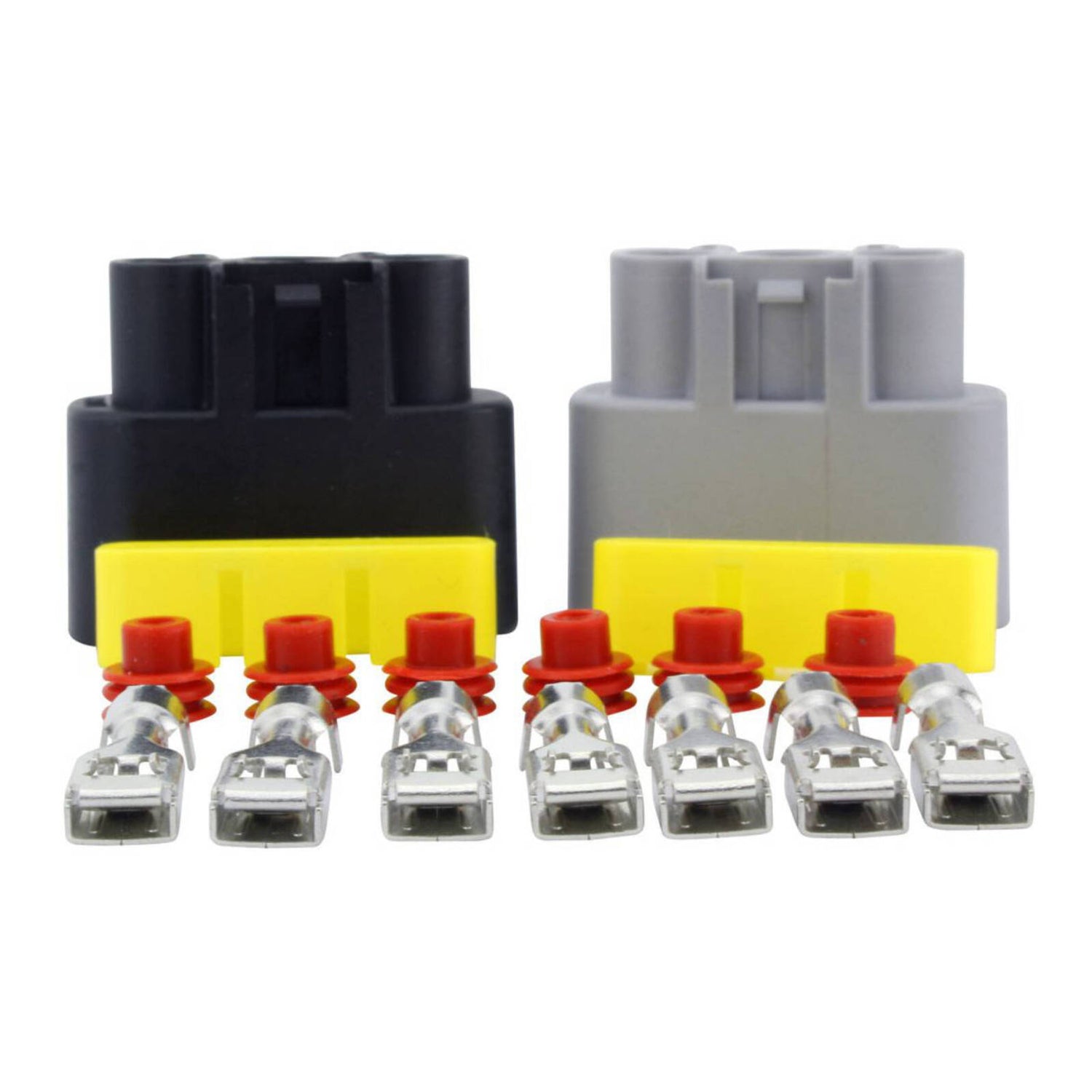

We have even included the opposite connector (main harness side), as we know these are often melted, corroded or defective and are a major cause of repetitive electrical issues.

All item pictures are accurate. If in doubt, do not hesitate to compare the item to the original part.

Before installing the new Voltage Regulator Rectifier:

• Check the AC output of the stator.
• Replace any burned or corroded connectors on the stator and regulator rectifier.
• Check and repair any melted wiring.
• Use high-temperature dielectric grease on all connectors.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Dimensions:

• Width: 110 mm
• Length: 80 mm
• Height: 28 mm
• Distance between fixation holes centre to centre: 84 mm

Other specifications:

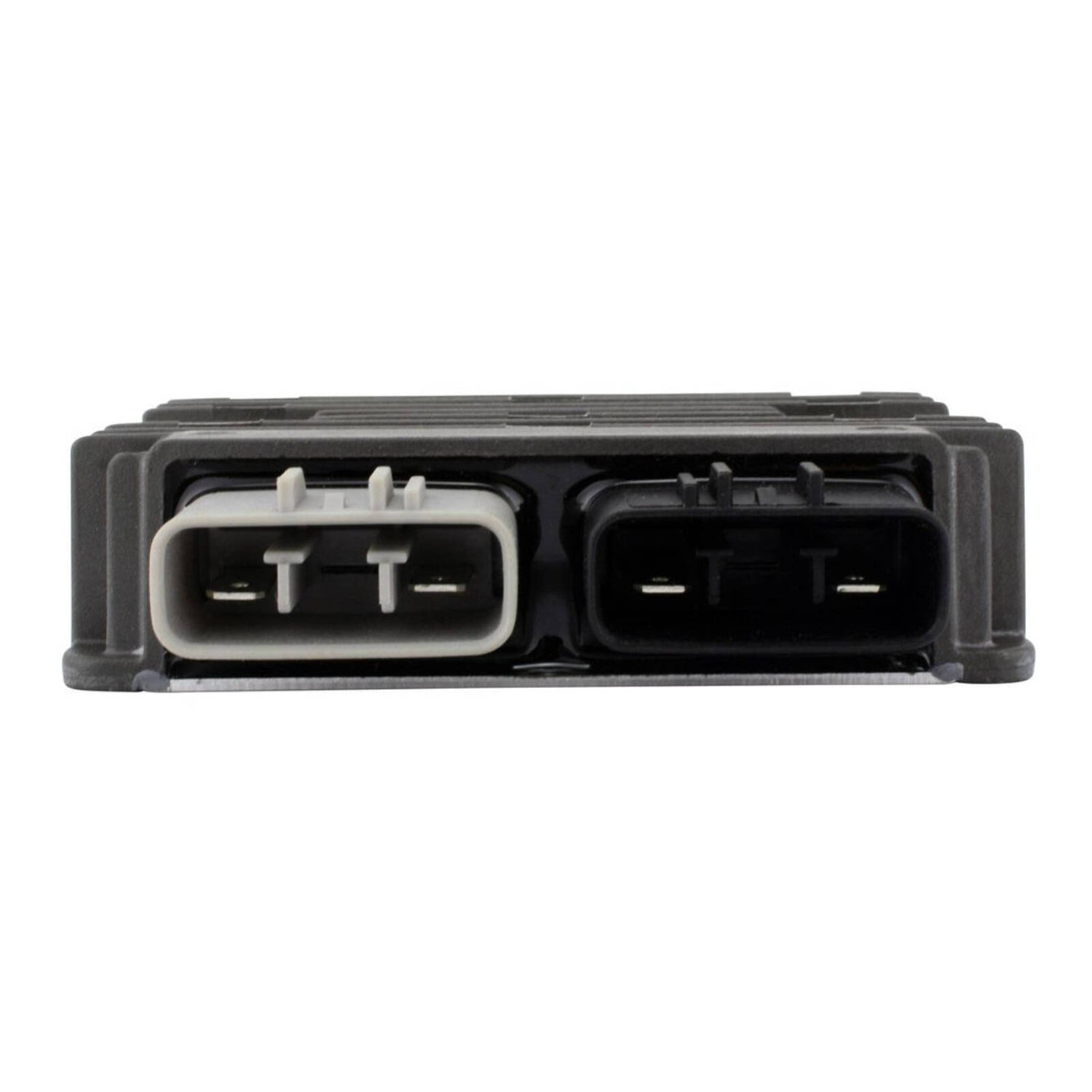

• Number of plugs: 2
• Number of pins: 4
• Number of wires: 0
• Minimum charging voltage: 14.5 V +/- 0.5 V
• Maximum charging current: 50 A / 500 W
• Open circuit voltage: < 15 V
• Operating temperature: -20°C to 85°C
